Discontinued

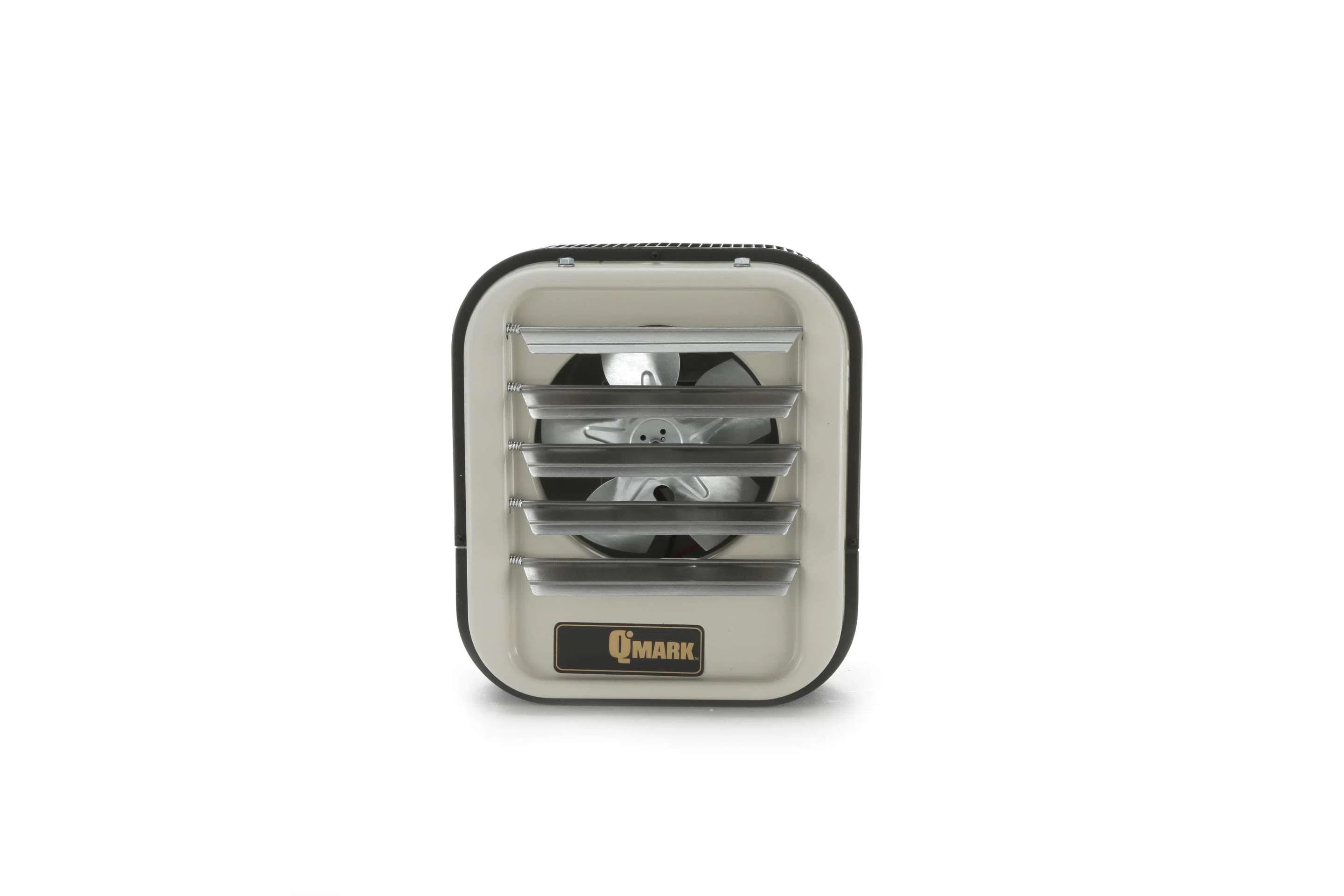

MUH208 Qmark 3-Phase Unit Heater, 20 kW, 208 V
- MFR:
- Marley Engineered Products
- MFR #:
- MUH208
- UPC:
- 685360047492
- Item #:
- 149884
Discontinued
MUH208 Qmark 3-Phase Unit Heater, 20 kW, 208 V
- MFR #:
- MUH208
- UPC:
- 685360047492
- Item #:
- 149884
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This rugged unit heater works well in industrial settings. Install it in factories, warehouses, garages, stairwells, power stations or mechanical rooms. Its powerful output capacity even makes it suitable for heating your loading dock or other indoor/outdoor transition spaces.
Manuals and Documentation
Features
- Small to medium case construction is 20 ga steel with larger cabinet 18 ga steel
- Branch circuit fusing (when required)
- Completely enclosed fan motor
- Aluminum finned, copper-clad steel sheath heating element extends life due to cooler sheath temperature and faster heat dissipation
- Automatic reset linear thermal cut-out, capillary type, provides protection over entire length of element areas (manual reset protection available on made-to-order basis)
- No piping flues, valves or traps needed for installation
- Individually adjustable louvers to direct air flow
- Advanced pull-through air flow design draws air across heating element for even air distribution and cooler element operation
- Specially designed venturi outlet to meet required additional air throw in vertical position
| Manufacturer Part Number | MUH208 |
| Stripped Manufacturer Part Number | MUH208 |
| Brand | QMARK® |
| Manufacturer | Marley Engineered Products |
| UPC | 685360047492 |
| Country Of Origin | US |
| Amperage Rating | 56 A |
| Color | Beige |
| Dimensions | 19 in W x 12-3/4 in D x 21-3/4 in H |
| Material | 20 ga Steel |
| Mounting Type | Surface |
| Series | MUH |
| Temperature Rating | 48 deg F |
| Type | 3-Phase |
| Voltage Rating | 208 V |
| Alternative Part Number | 8659918 |
| Manufacturer Item Status | Discontinued |
| Country | USA |
| Warranty | 5 years Element and 1 year Workmanship |
| Standards Approvals | cULus File No. E21609 | NEC Approved | OSHA Standard | UL Listed |
| Application | Indoor/Outdoor, Factories, Warehouses, Garages, Stairwells, Shipping Docks, Power Stations and Mechanical Rooms |
| Flow Rate | 1320 cfm |
| Mounting Height | 12 ft Horizontal/23 ft Vertical |
| Power Rating | 20 |
| Speed | 1500 rpm |
