Telemecanique

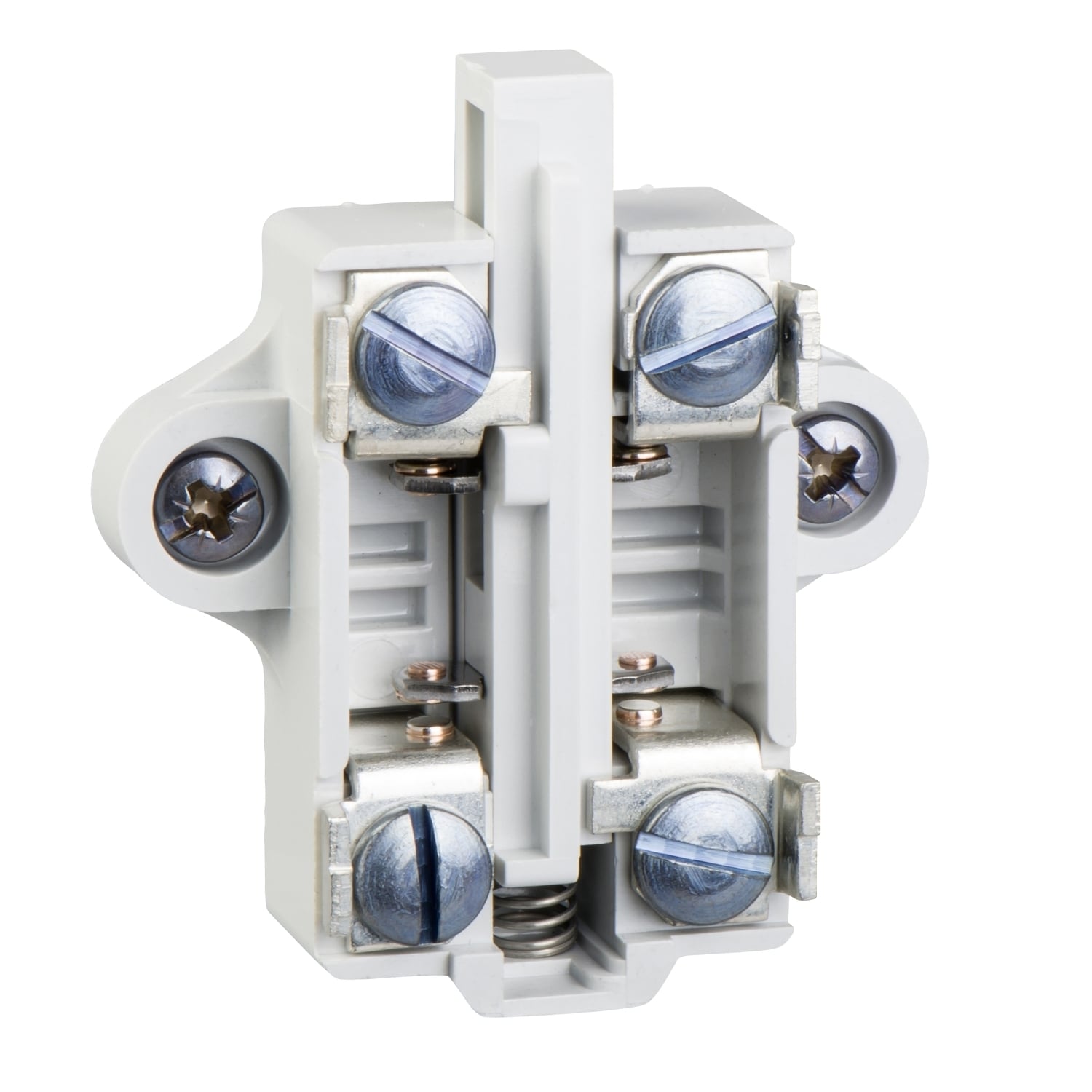

ZC1AZ13 OsiSense XC Contact Block, 1NO-1NC Contact, For Use With Special Format XC1AC13 Series Limit Switch

MFR:
Telemecanique Sensors
MFR #:
ZC1AZ13
Item #:
1498582

Availability

Location Available Qty
Available Available to Order
$338.52 each

This 1 NC + 1 NO make before break contact block, is a separate part for the XC1AC13 limit switches. The contacts are silver plated. The XC1AC offer is a range of limit switches designed for very severe material handling applications.

Manuals and Documentation
Catalog Number ZC1AZ13
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Unknown
Made in USA No
Action Slow-break, make before break
Amperage Rating 10
Application XC1AC13.
Connection Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contact Configuration 1 NO + 1 NC
Number of Poles 2
Operating Cycles 1000000 CYCLES, AC-15 110 V, 900 VA 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-3000000 CYCLES, DC-13 110 V, 40 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-3000000 CYCLES, DC-13 230 V, 33 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-3000000 CYCLES, DC-13 48 V, 35 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-1000000 CYCLES, AC-15 230 V, 1900 VA 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-1000000 CYCLES, AC-15 48 V, 450 VA 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-1000000 CYCLES, DC-13 110 V, 100 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-1000000 CYCLES, DC-13 230 V, 95 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-1000000 CYCLES, DC-13 48 V, 100 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-3000000 CYCLES, AC-15 110 V, 350 VA 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-3000000 CYCLES, AC-15 230 V, 430 VA 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-3000000 CYCLES, AC-15 48 V, 170 VA 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features SCREW-CLAMP TERMINALS, 1 X 0.5...2 X 2.5 MM²
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=878232&lang=en-us
GTIN 03389110322705
Item Type Limit switch contact block
