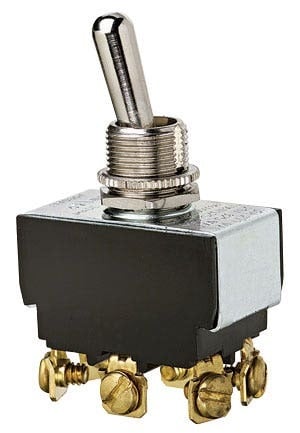

IDEAL, Toggle Switch, Heavy-Duty, On-Off-On, Voltage Rating: 125, 227 VAC, Number Of Poles: 2, Amperage Rating: 20, 10 AMP, Action: DPDT, Connection: Screw, 6 Terminals, Actuator: Toggle, Contact Rating: Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC Rating, Size: 1.300 IN Length X 0.760 IN Width X 0.800 IN Height, Mounting: 1/2 IN Hole Diameter, Operating Cycles: 100000 Cycles Mechanical Life, Operating Temperature: 32 To 185 DEG F, Dielectric Strength: 1500 V, Finish: Solid Brass/Nickel-Plated Bushings, Hp Rating: 1-1/2 HP At 125 To 250 VAC
- MFR:
- Ideal Industries
- MFR #:
- 774016
- UPC:
- 781789740164
- Item #:
- 149582
IDEAL, Toggle Switch, Heavy-Duty, On-Off-On, Voltage Rating: 125, 227 VAC, Number Of Poles: 2, Amperage Rating: 20, 10 AMP, Action: DPDT, Connection: Screw, 6 Terminals, Actuator: Toggle, Contact Rating: Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC Rating, Size: 1.300 IN Length X 0.760 IN Width X 0.800 IN Height, Mounting: 1/2 IN Hole Diameter, Operating Cycles: 100000 Cycles Mechanical Life, Operating Temperature: 32 To 185 DEG F, Dielectric Strength: 1500 V, Finish: Solid Brass/Nickel-Plated Bushings, Hp Rating: 1-1/2 HP At 125 To 250 VAC
- MFR #:
- 774016
- UPC:
- 781789740164
- Item #:
- 149582
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$21.25
each
Great for power tool and motor control switch applicationsRugged long-wearing solid brass/nickel-plated bushings1/2 in. diameter mounting holeDielectric Strength: 1500VMechanical Life: 100,000 cyclesOperating Temperature: 32F to 185F (0C to 85C)DCRating: Factory tested 100,000 cycles to 21 Amp 14.8 VDC
| Catalog Number | 774016 |
| Manufacturer | Ideal Industries |
| Brand | Buchanan |
| Country of Origin | China |
| Made in USA | No |
| Action | DPDT |
| Actuator | Toggle |
| Application | For Power Tool And Motor Control Switch Applications |
| Connection | Screw, 6 Terminals |
| Contact Rating | Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC Rating |
| Mounting | Mounting Holes |
| Number of Poles | 2 |
| Operating Cycles | 100000 Cycles Mechanical Life |
| Special Features | Features: Great For Power Tool And Motor Control Switch Applications; Rugged Long-Wearing Solid Brass/Nickel-Plated Bushings; 1/2 IN Diameter Mounting Hole; Dielectric Strength: 1500 V; Mechanical Life: 100000 Cycles; Operating Temperature: 32 DEG F To 185 DEG F (0 DEG C To 85 DEG C); DC Rating: Factory Tested 100000 Cycles To 21 AMP 14.8 VDC; Bulk Packaging Of 100 Available Upon Request; Dielectric Strength: 1500 V; Finish: Solid Brass/Nickel-Plated Bushings; Hp Rating: 1-1/2 HP At 125 To 250 VAC |
| Standard | CSA, RU Listed, RoHS |
| RoHS URL | https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF |
| UPC | 781789740164 |
| GTIN | 00781789740164 |
| Item Type | Heavy-Duty, On-Off-On |
| Size | 1.300 IN Length X 0.760 IN Width X 0.800 IN Height |
| Operating Temperature | 32 To 185 DEG F |
| Voltage Rating | 125, 227 |
