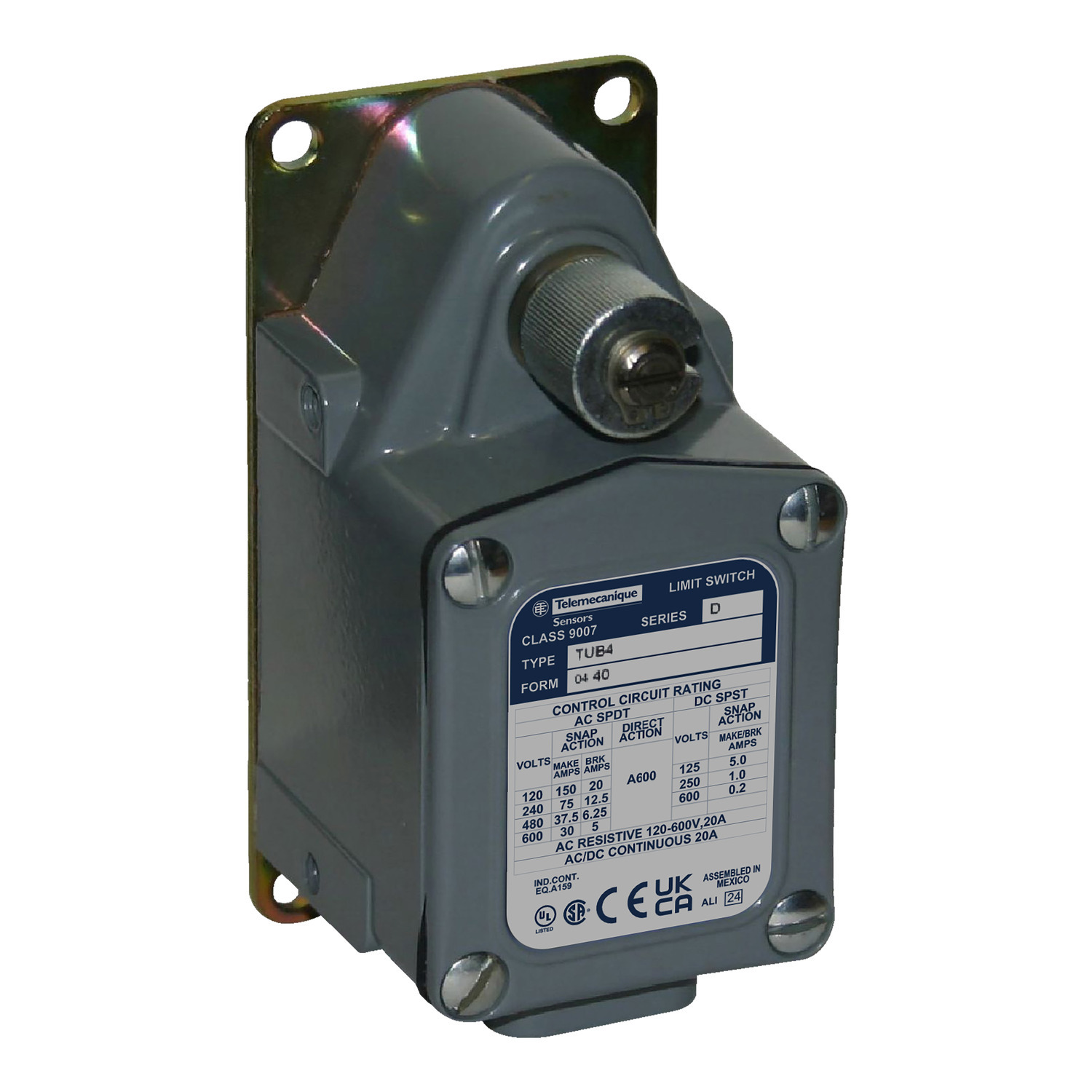

9007TUB4M11 Severe Duty Mill Limit Switch, 600 V AC, 12 A, Lever Actuator, 1CO 1 Form Z SPDT-DB Contact, 1 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- 9007TUB4M11
- UPC:
- 785901291275
- Item #:
- 1491785
9007TUB4M11 Severe Duty Mill Limit Switch, 600 V AC, 12 A, Lever Actuator, 1CO 1 Form Z SPDT-DB Contact, 1 Poles
- MFR #:
- 9007TUB4M11
- UPC:
- 785901291275
- Item #:
- 1491785
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$532.82
each
Limit switch, 9007, 600 VAC 12amp t +options
Manuals and Documentation
| Catalog Number | 9007TUB4M11 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | CW and CCW;from left or right;Lateral approach;Snap action |
| Actuator | Spring return without operating lever |
| Amperage Rating | 20 |
| Application | Universal mill switch |
| Connection | Screw-clamp terminals AWG 22...AWG 12 |
| Contact Configuration | Form Z |
| Contact Rating | NEMA A600/P600 |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250 |
| Insulation | 600V |
| Mounting | By The Body |
| Number of Poles | 1 |
| Special Features | FIXED,NEUTRAL POSITION |
| Standard | 10 GN 10-55 HZ)IEC 60068-2-6,30 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=378981&lang=en-us |
| UPC | 785901291275 |
| GTIN | 03389119080965 |
| Item Type | Limit switch |
| Size | 2.44 |
| Operating Temperature | -10-185 A Degrees F |
