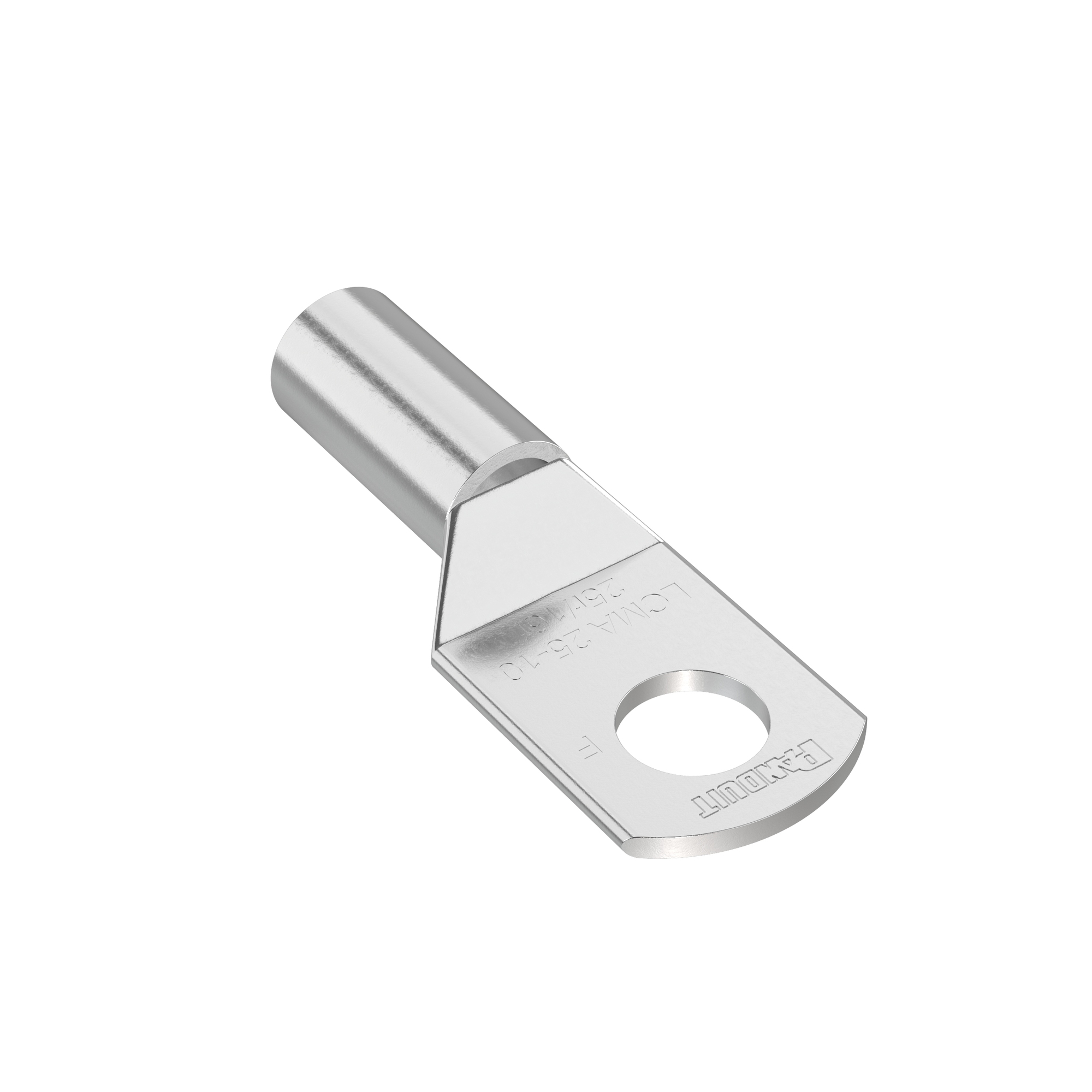

LCMA16-6-C Pan-Lug LCMA 1-Hole Metric Compression Connector Lug With Inspection Window, 16 sq-mm Flexible/Stranded Copper Conductor, Die Code: P21, M6 Stud, Tin Plated Copper
- MFR:
- Panduit
- MFR #:
- LCMA16-6-C
- UPC:
- 074983769339
- Item #:
- 1491463
LCMA16-6-C Pan-Lug LCMA 1-Hole Metric Compression Connector Lug With Inspection Window, 16 sq-mm Flexible/Stranded Copper Conductor, Die Code: P21, M6 Stud, Tin Plated Copper
- MFR #:
- LCMA16-6-C
- UPC:
- 074983769339
- Item #:
- 1491463
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2.3126
each
The LCMA16-6-C Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has a rounded tongue convenient for use in tight spaces and a beveled wire entry for fast and easy installation. The inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.
Manuals and Documentation
| Catalog Number | LCMA16-6-C |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Argentina |
| Made in USA | No |
| Amperage Rating | 65 |
| Material | Tin-Plated Copper |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| UPC | 074983769339 |
| GTIN | 00074983769339 |
| Item Type | Metric Compression Lug |
