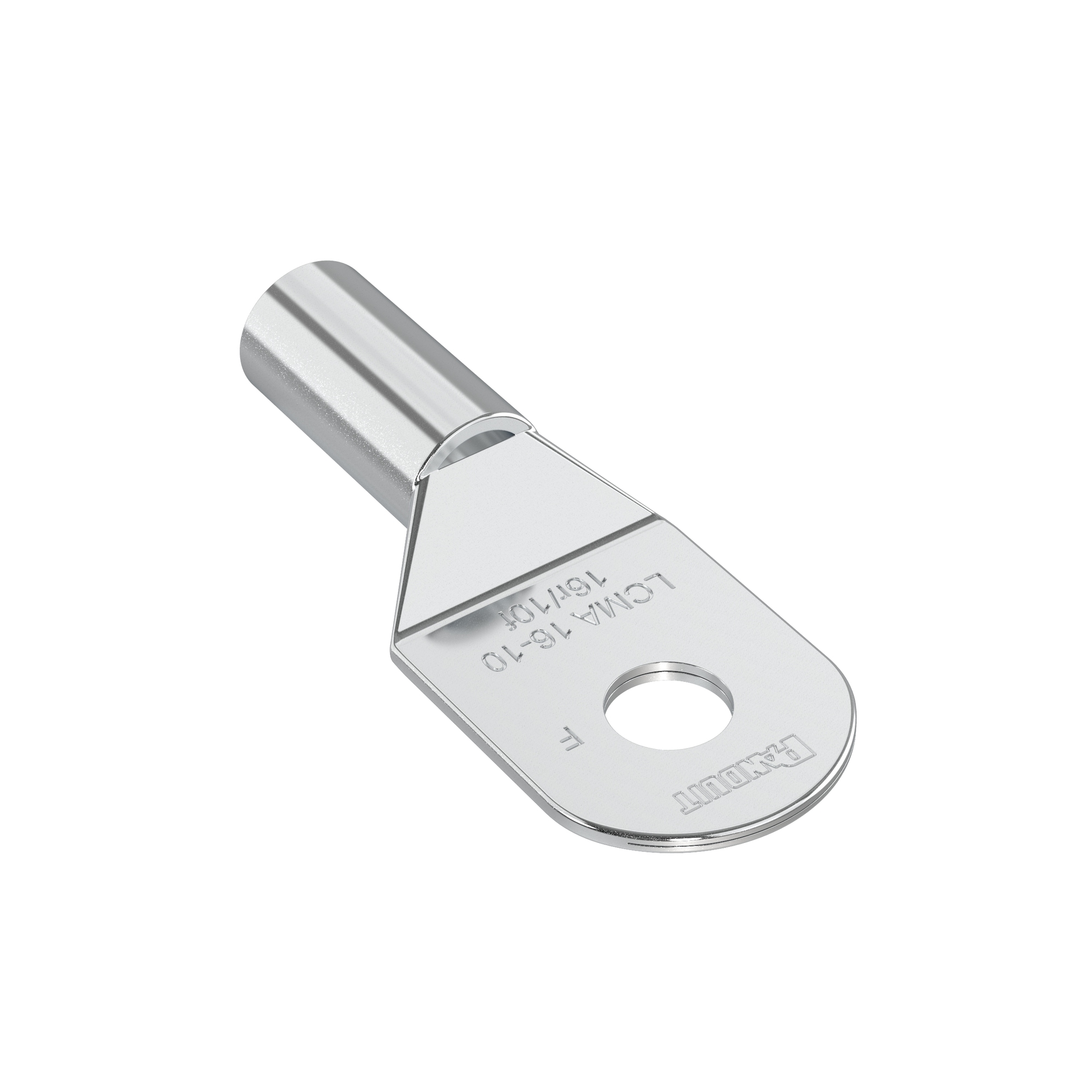

Pan-Lug LCMA16-10-C Comp. Lug, Metric, 16mm, Tin Plt Cu, Strt, One 0.19" Stud
MFR: Panduit
MFR #: LCMA16-10-C
UPC: 074983769353
Item #: 1490886
Pan-Lug LCMA16-10-C Comp. Lug, Metric, 16mm, Tin Plt Cu, Strt, One 0.19" Stud
MFR #: LCMA16-10-C
UPC: 074983769353
Item #: 1490886
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2.62
each
The LCMA16-10-C Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has a rounded tongue convenient for use in tight spaces and a beveled wire entry for fast and easy installation. The inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.
Manuals and Documentation
- Catalog Number
- LCMA16-10-C
- Manufacturer
- Panduit
- Brand
- Panduit
- Sub Brand
- Pan-Lug™
- Country of Origin
- Argentina
- Made in USA
- No
- Amperage Rating
- 65
- Material
- Tin-Plated Copper
- Special Features
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Standard
- Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant
- UPC
- 074983769353
- GTIN
- 00074983769353
- Item Type
- Metric Compression Lug
