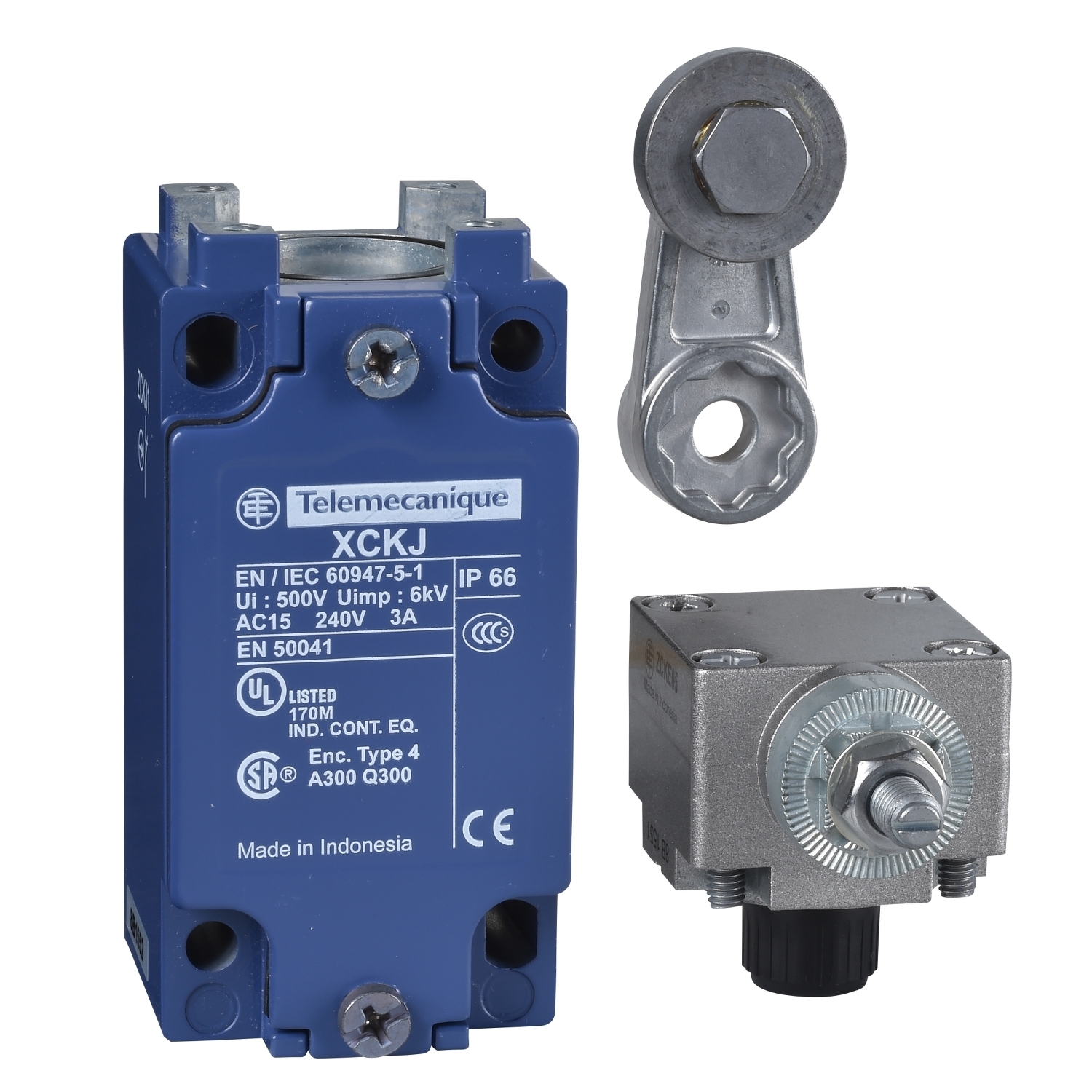

XCKJ10513 OsiSense Fixed Standard Format Limit Switch, 240 V AC/250 V DC, 10 A, Spring Return Roller Lever Arm Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKJ10513
- UPC:
- 785901093688
- Item #:
- 148983
XCKJ10513 OsiSense Fixed Standard Format Limit Switch, 240 V AC/250 V DC, 10 A, Spring Return Roller Lever Arm Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCKJ10513
- UPC:
- 785901093688
- Item #:
- 148983
Availability
| Location | Available Qty |
|---|---|
| Available | 2 ea |
This XCKJ industrial format (EN 50041) limit switch has a steel roller lever and a Zamak body. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a industrial CENELEC EN50041 form A format. It is IP66 and IK07 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508, BV, EAC standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
Manuals and Documentation
| Catalog Number | XCKJ10513 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Action | Lateral approach, 1 or 2 programmable direction;Snap action;By 30 Degrees cam |
| Actuator | Spring return roller lever metal |
| Amperage Rating | 10 |
| Application | INDUSTRIAL |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Enclosure | NEMA 1/2/4/12 IP 66 |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,METAL |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CENELEC EN 50041-EN 60204-1-EN 60947-5-1-CSA C22.2 NO 14-IEC 60204-1-UL 508-IEC 60947-5-1,IK07 EN 50102,IP66 IEC 60529,UL-CCC-CSA |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856110&lang=en-us |
| UPC | 785901093688 |
| GTIN | 03389110645811 |
| Item Type | Limit switch |
| Size | 1.73 |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A |
