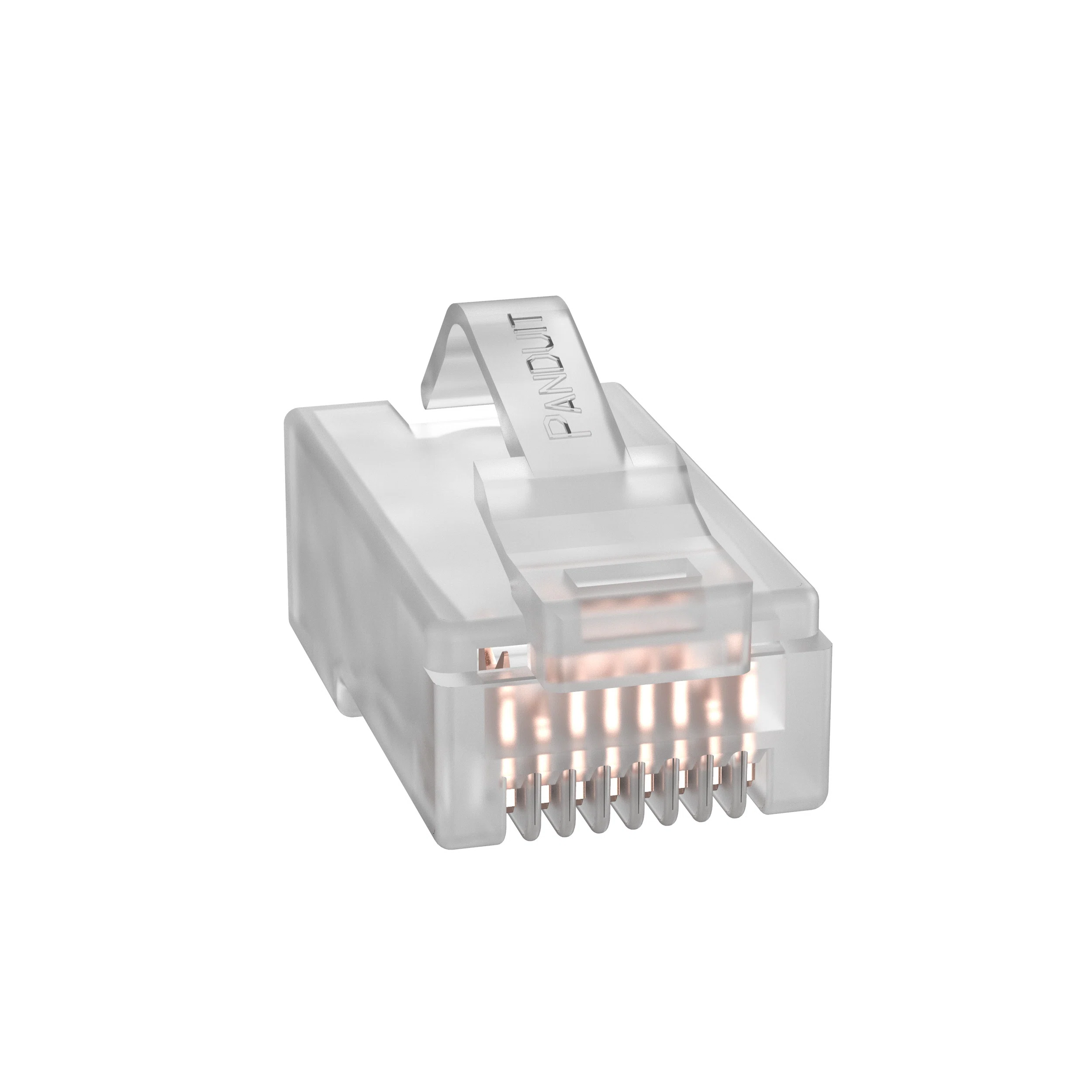

Cat 5e/Class D, 8-position, 8-wire, UTP modular plug shall terminate most 4-pair, 26 to 24 AWG, 100 Ohm, solid or stranded, unshielded twisted pair cable with maximum conductor insulation diameter of 0.04 in. Simplified termination method shall require no load bar. Guide ramp shall facilitate easy conductor insertion and termination. Modular plug shall terminate to T568A and T568B wiring schemes.
Manuals and Documentation
Features
- Patented prevents snags and provides easy release, saving time and tangle free latch providing reliability on frequent moves, adds and changes
- Robust construction rated to 2500 mating cycles
- Simplified termination requires no loading bar, guide ramp facilitates easy conductor insertion and termination
- Contacts plated with 50 u-in of gold for superior performance
- Terminate 24 AWG, 100 Ohm, stranded or solid conductor with maximum conductor insulation diameter of 0.04 in
| Manufacturer Part Number | MP588-X |
| Brand | Panduit® |
| Manufacturer | Panduit |
| UPC | 074983317257 |
| Country Of Origin | CR |
| Cable Type | Copper |
| Color | Clear |
| Conductor Size | 24 AWG |
| Dimensions | 8.1 mm H x 11.7 mm W x 22.9 mm D |
| Material | Polycarbonate |
| Type | Cat 5e |
| Alternative Part Number | 12880839 | 12880840 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | Meet all applicable ANSI/TIA-968-A requirements and exceeds IEC 60603-7 specifications, Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS compliant | ARRA Compliant | Buy American Act Compliant | RoHS Compliant | IEC 60603-7 | UL 1863 | CSA C22.2 | UL 94-V-0 Flammability Rating |
| Application | For use with 24 AWG, category 5e, UTP copper cable |
