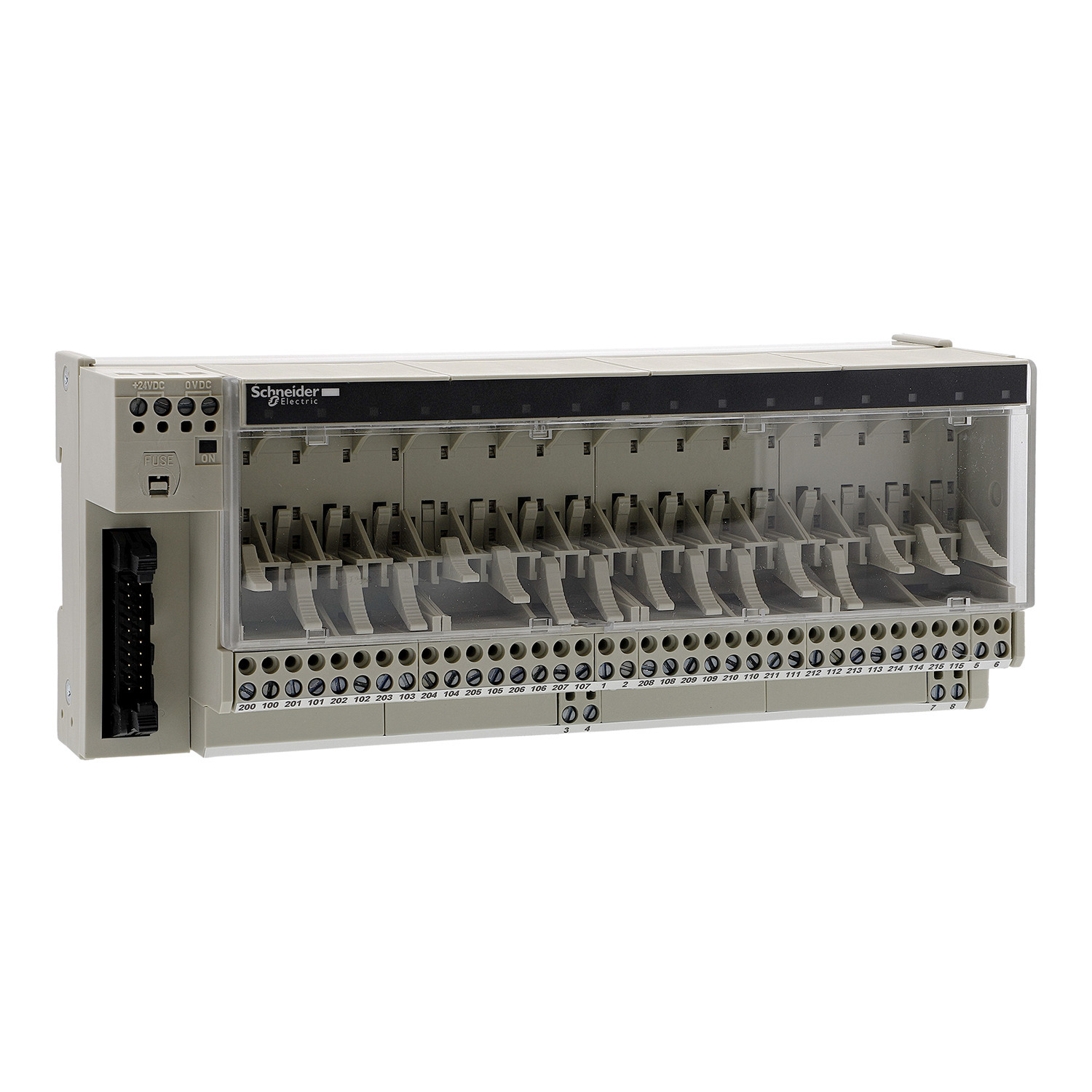

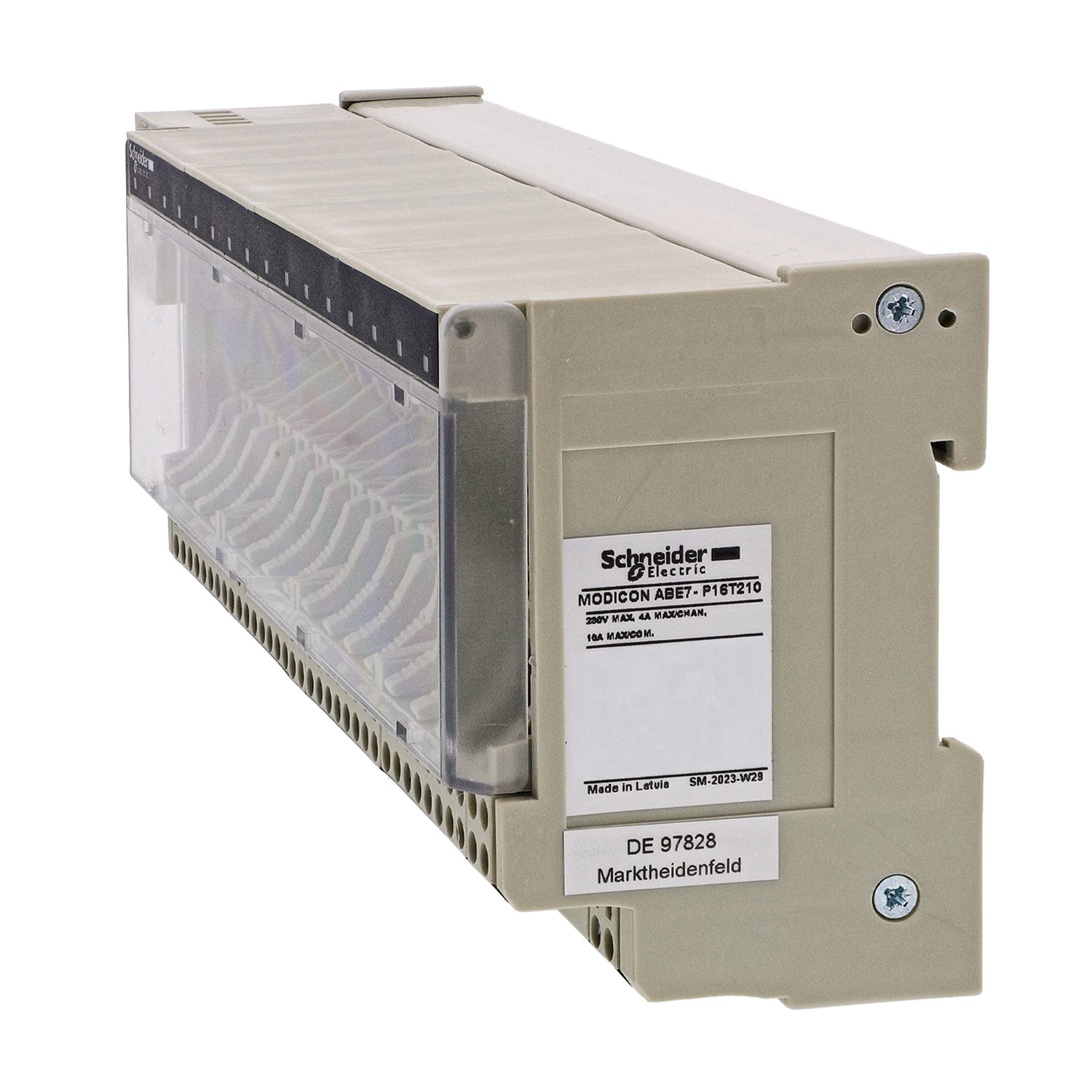

ABE7P16T210 Advantys 16-Channel Volt-Free Sub-Base, Screw Wire Clamp, For Use With ABR7S2 Plug-In Electromechanical Relay, ABS7SA2 Plug-In Solid State Relay and ABE7ACC20 Removable Continuity Block
- MFR:
- Schneider Electric
- MFR #:
- ABE7P16T210
- Item #:
- 1489456
ABE7P16T210 Advantys 16-Channel Volt-Free Sub-Base, Screw Wire Clamp, For Use With ABR7S2 Plug-In Electromechanical Relay, ABS7SA2 Plug-In Solid State Relay and ABE7ACC20 Removable Continuity Block
- MFR #:
- ABE7P16T210
- Item #:
- 1489456
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This sub-base for plug-in relay, provides 16 channels. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.615kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S2, ABS7SA2, ABS7SC2 and ABE7ACC20 connection sub-base accessory. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Manuals and Documentation
| Catalog Number | ABE7P16T210 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Latvia |
| Made in USA | No |
| Mounting | Din Rail |
| Power Supply | 19...30 V IEC 61131-2;DC |
| Special Features | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end;screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid;screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end;screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end;screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1451917&lang=en-us |
| GTIN | 03389110644531 |
| Item Type | Sub-base for plug-in relay |
