Southwire®

68584211 Type MC THHN Interlocked Armored Cable, Drum Packaging, 600 V AC, (3) 10 AWG Solid Copper Conductor, 1000 ft L

MFR:
Southwire Company
MFR #:
68584211
UPC:
032886914423
Item #:
1487753

Availability

Location Available Qty
Available Available to Order

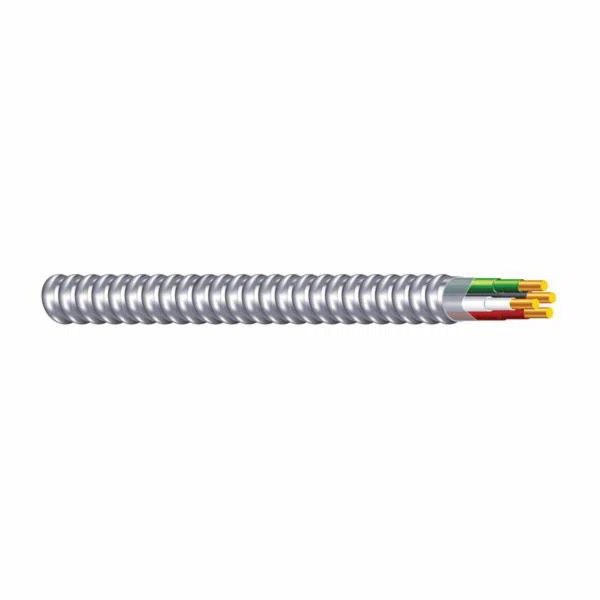

Southwire Armorlite® type MC cable - PVC jacketed is constructed with soft-drawn, copper type THHN/THWN conductors rated 90 deg C dry/ 75 deg C wet, a green insulated grounding conductor. The conductors are cabled together and a binder tape is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly. A black sunlight resistant, flame retardant PVC jacket is applied over the armor. Print legend is included on the binder tape as well as the overall PVC jacket. The jacket is available in other colors upon request subject to economic order quantities.

Manuals and Documentation

Features

  • Concealed or exposed installations
  • Installation in cable tray and approved raceways
Manufacturer Part Number 68584211
Brand Southwire®
Manufacturer Southwire Company
UPC 032886914423
Country Of Origin US
Amperage Rating 40 A
Conductor Size 10 AWG
Conductor Type Solid Copper
Jacket Material PVC
Length 1000 ft
Number Of Conductors 3
Outside Diameter 0.579 in
Temperature Rating 90 deg C
Type Type MC THHN
Voltage Rating 600 V AC
Alternative Part Number 12204126
Manufacturer Item Status Active
Country USA
Warranty 1 Year
Standards Approvals RoHS Compliant | REACH Compliant | UL File No.83/156/1685 | Federal Specification A-A59544 | NFPA 70 Article 330 | FT4/IEEE 1202 | ARRA Compliant | Buy American Act Compliant
Application For branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential building applications
Packaging Type Drum
