Square D

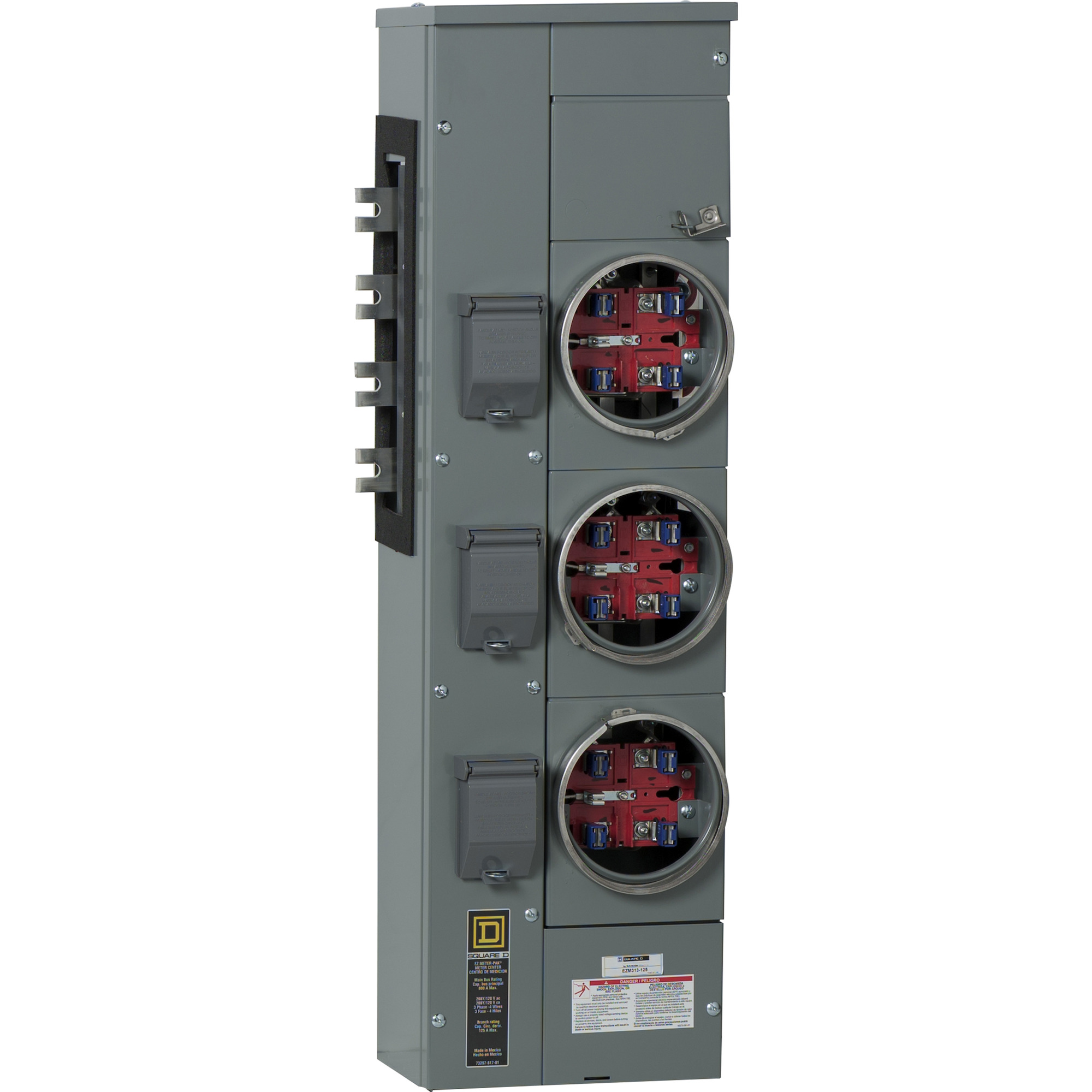

EZM313125CUX Meter-Pak EZM 3-Position Meter Center Branch Unit, 208Y/120 V AC, 125 A, 1/3 Phase , NEMA 3R Enclosure

MFR:
Schneider Electric
MFR #:
EZM313125CUX
UPC:
785901197737
Item #:
1487005

Availability

Location Available Qty
Available Available to Order
$3,200.79 each

Square D EZ Meter-Pak branch meter compartmentsprovide a compact footprint for multi unit construction applications. This branch unit supplies three phases in, one phase out with a four wire configuration. It is rated for 208Y/120VAC and 125A. The meter socket compartment has three ringed, five jaw meter sockets. The compartment has four horizontal 1200A rated busbars with copper vertical connectors. The busbars come with Visi-Tite joint nuts for connections, eliminating the need for torque readings. It is compatible with 40A to 125A two-pole plug-on QO circuit breakers. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Manuals and Documentation
Catalog Number EZM313125CUX
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357671&lang=en-us
UPC 785901197737
GTIN 00785901197737
Width 12.25
Width UOM Inch
Height 42.37
Height UOM Inch
Depth 7.09 IN
