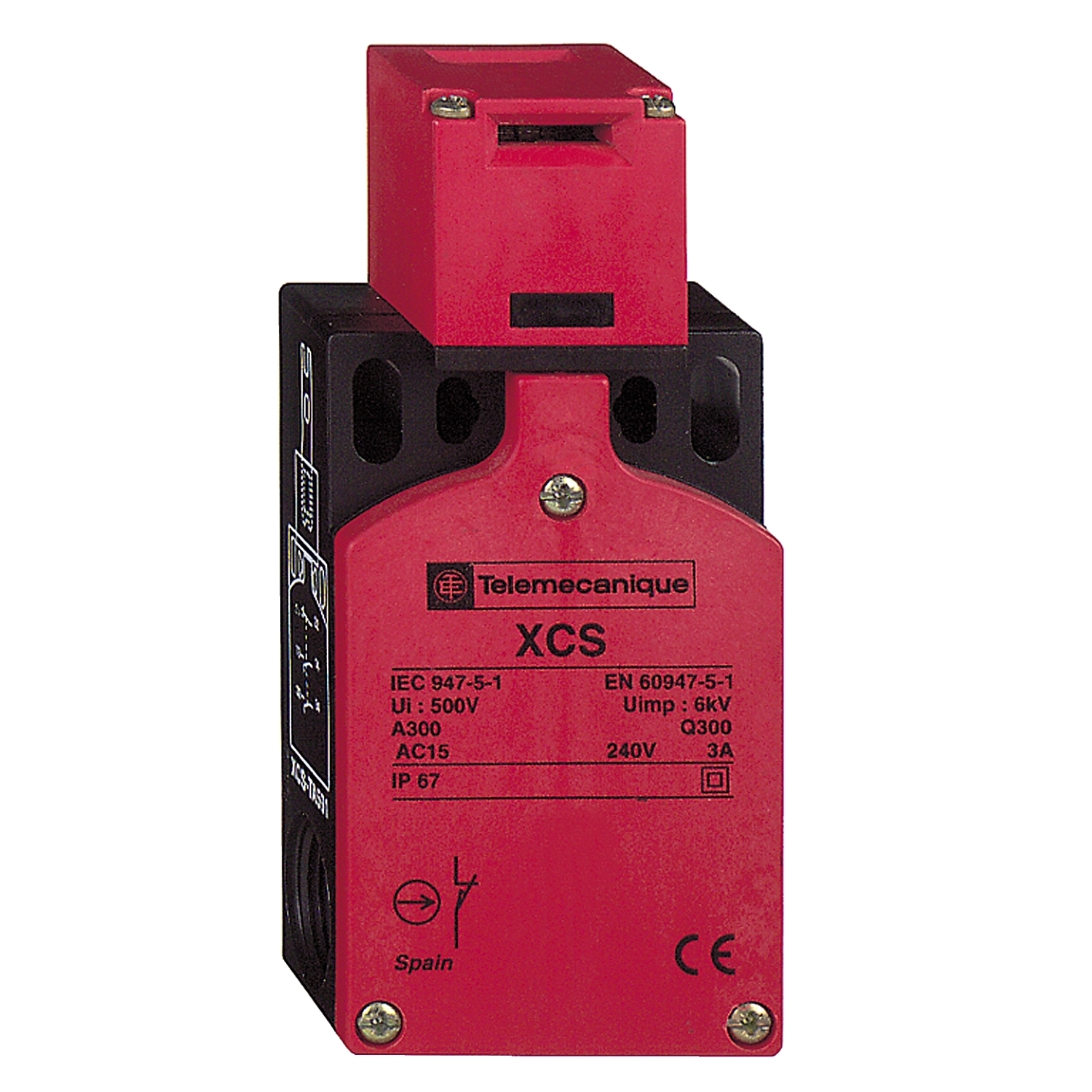

XCSTA792 Preventa Compact Turret Head Safety Interlock Switch, 300 V AC, 6 A, 3 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCSTA792
- Item #:
- 1486624
XCSTA792 Preventa Compact Turret Head Safety Interlock Switch, 300 V AC, 6 A, 3 Poles
- MFR #:
- XCSTA792
- Item #:
- 1486624
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$116.03
each
This XCSTA Key Operated Safety Switch for guard doors has an adjustable turret head and a robust red coated polyamide body with 2 x M16 cable gland entries, allowing for flexible installation. It has 1 normally open and 2 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Manuals and Documentation
| Catalog Number | XCSTA792 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Action | Slow-break, break before make |
| Application | KEY OPERATED TURRET HEAD |
| Connection | Terminal 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Contact Configuration | 2 NC + 1 NO |
| Insulation | Double insulated |
| Number of Poles | 3 |
| Operating Cycles | 10 CYC/MN FOR MAXIMUM DURABILITY |
| Special Features | PLASTIC,WITHOUT LOCKING OF ACTUATOR |
| Standard | 10 GN 11 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-EN/IEC 60947-5-1-EN/IEC 60204-1-UL 508-EN 1088/ISO 14119-EN/ISO 12100,CSA-UL,IP67 EN/IEC 60529 AND EN/IEC 60947-5-1,CLASS II EN/IEC 61140 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=860036&lang=en-us |
| GTIN | 03389110786071 |
| Item Type | Safety switch |
| Size | 115-115 MM,30 MM,52 MM |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1-3 A 240 V, AC-15, A300 EN/IEC 60947-5-1-0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 |
