Telemecanique

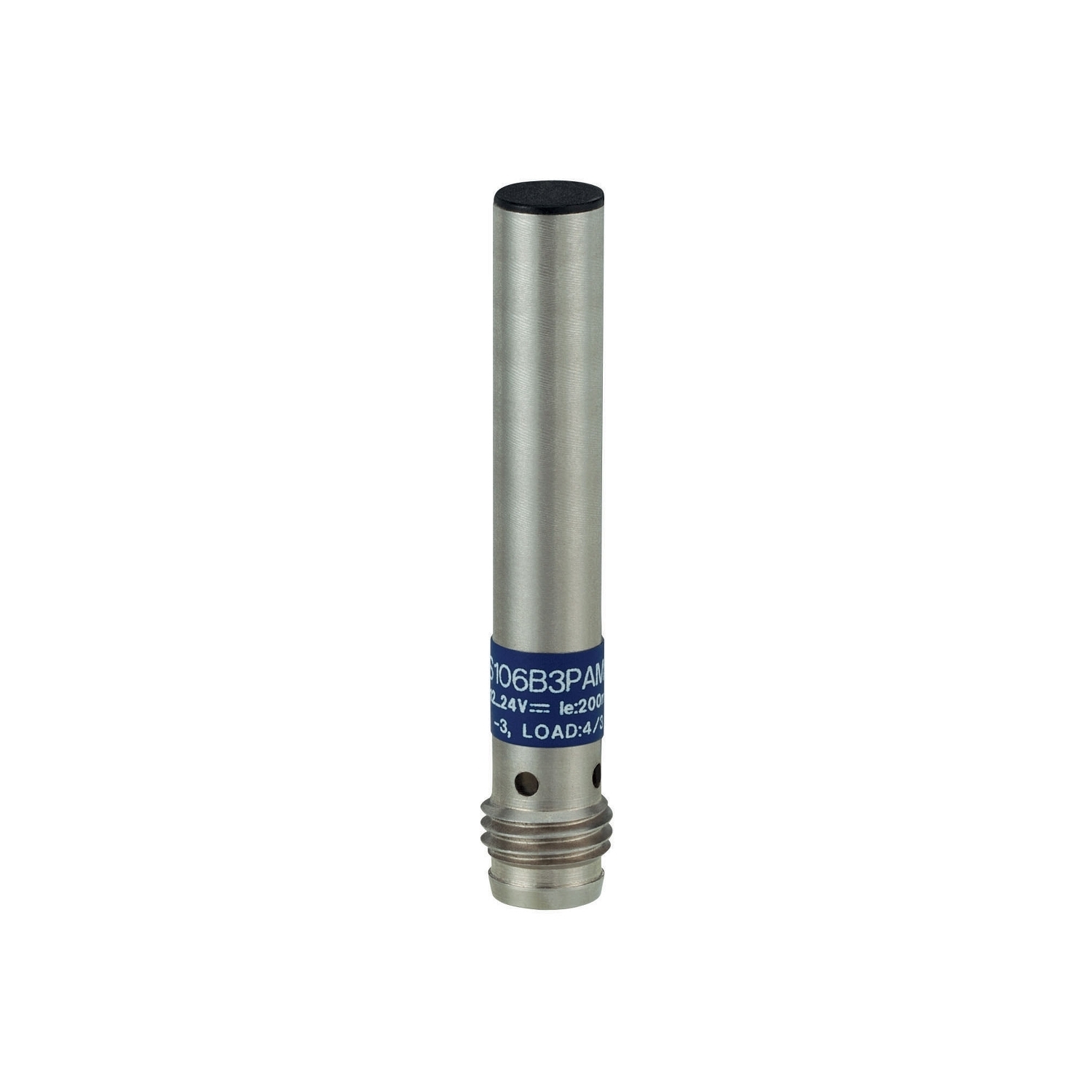

XS106B3PBM8 OsiSense XS Fixed Inductive Sensor, Proximity Sensor, PNP/Discrete Output, 1NC Contact, 12 to 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XS106B3PBM8
Item #:
1485761

Availability

Location Available Qty
Available Available to Order
$169.25 each

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, increased range, flush mountable sensor. Diameter 6.5mm, plain. It features a nickel plated brass cylindrical short case boby and a M8 connector. It has a sensing distance of 2.5mm. Three-wire, DC supply, 12V to 24V, NC function, PNP solid-state output .

Manuals and Documentation
Catalog Number XS106B3PBM8
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application -
Connector Male connector M8, 3 pins
Enclosure Stainless steel 303
Indicator Output state 1 LED yellow)
Material Metal
Mounting Flush
Sensing Range > 0...0.1 IN (> 0...2.5 MM)
Special Features IP65 CONFORMING TO IEC 60529-IP67 CONFORMING TO IEC 60529,M8 MALE CONNECTOR, 3 PINS
Standard IP65 conforming to IEC 60529;IP67 conforming to IEC 60529;CE
Supply Voltage 12...24 V DC reverse polarity protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=865680&lang=en-us
GTIN 03389119036078
Item Type Inductive proximity sensor;Cylindrical Ø 6.5 mm plain
Operating Temperature -25-70 A Degrees C
