BURNDY

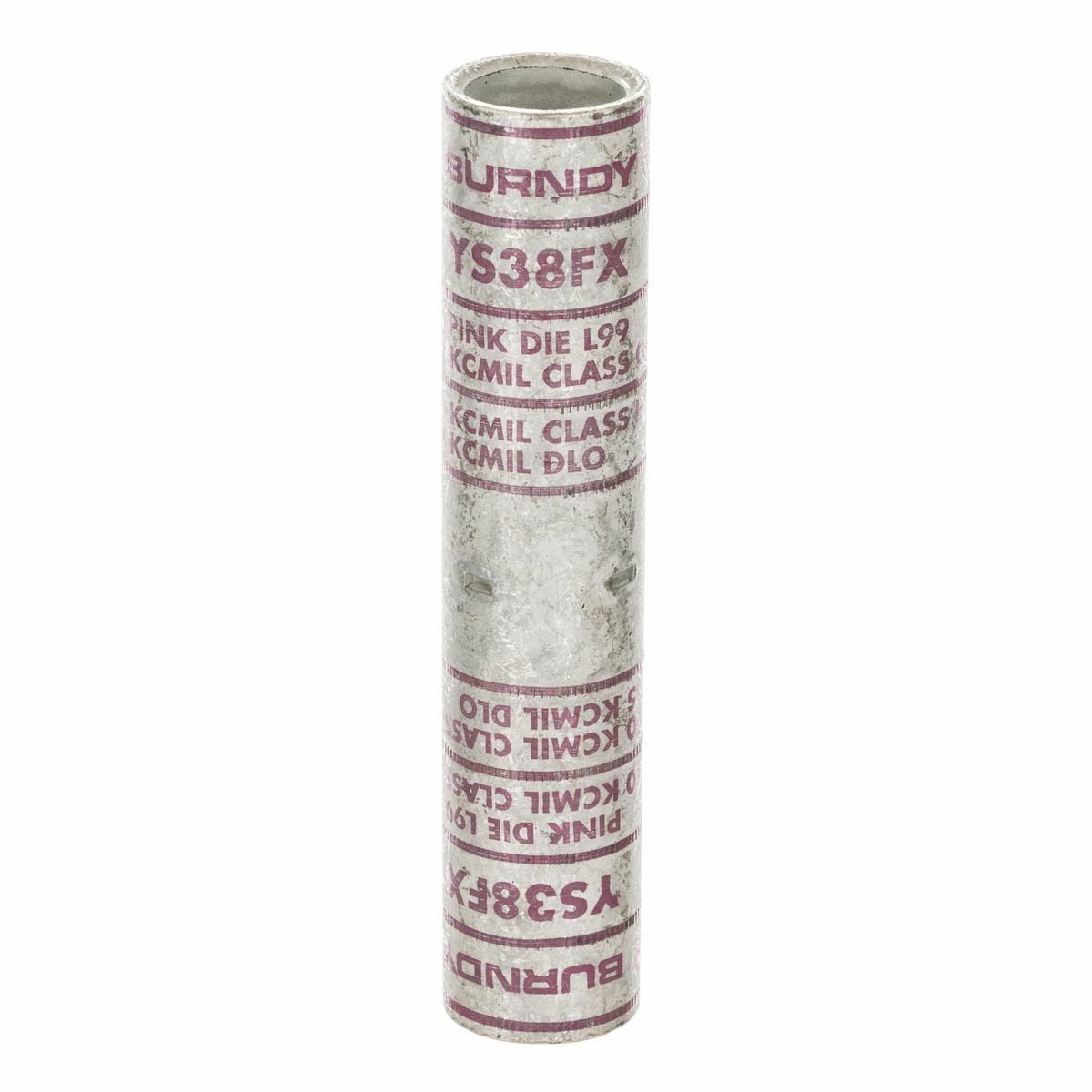

YS38FX Compression Splice, 500 to 550 kcmil Conductor Flex Conductor, Die Code: L99, 6.09 in L, Copper

MFR:
Burndy, a Hubbell affiliate
MFR #:
YS38FX
UPC:
621945624177
Item #:
1484320

Availability

Location Available Qty
Available Available to Order
$187.68 each
Manuals and Documentation
Catalog Number YS38FX
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application Wire Splice
Finish Tin-Plated
Material COPPER
Special Features Features: UL Listed 90 DEG C, 600 Volts to 35 kV, Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used At Higher Voltages Up To 35KV, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, High Pull Out Force: Provides Added Security For Much Greater Mechanical And Electrical Properties, Color Code: Red, Oil Stop: No, Tapered End: No, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Die Index: 49 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: Y1MRTC Tool, (2), Y2MR Tool, MD7-34R Tool, W8CVT Die, (2), MD6, OUR840 Tool, X8CRT Die, (2), Y35 , Y39, Y750 Tool, U8CRT Die, (2), Y46 Tool, U8CRT Die With PUADP-1 Adapter, (2), Conductor Type: Commercial Stranded Copper, Wire Strip Length: 7/8 IN
Standard UL 486A-486B
UPC 621945624177
GTIN 00621945624177
Item Type YS
Voltage Rating 35
