Telemecanique

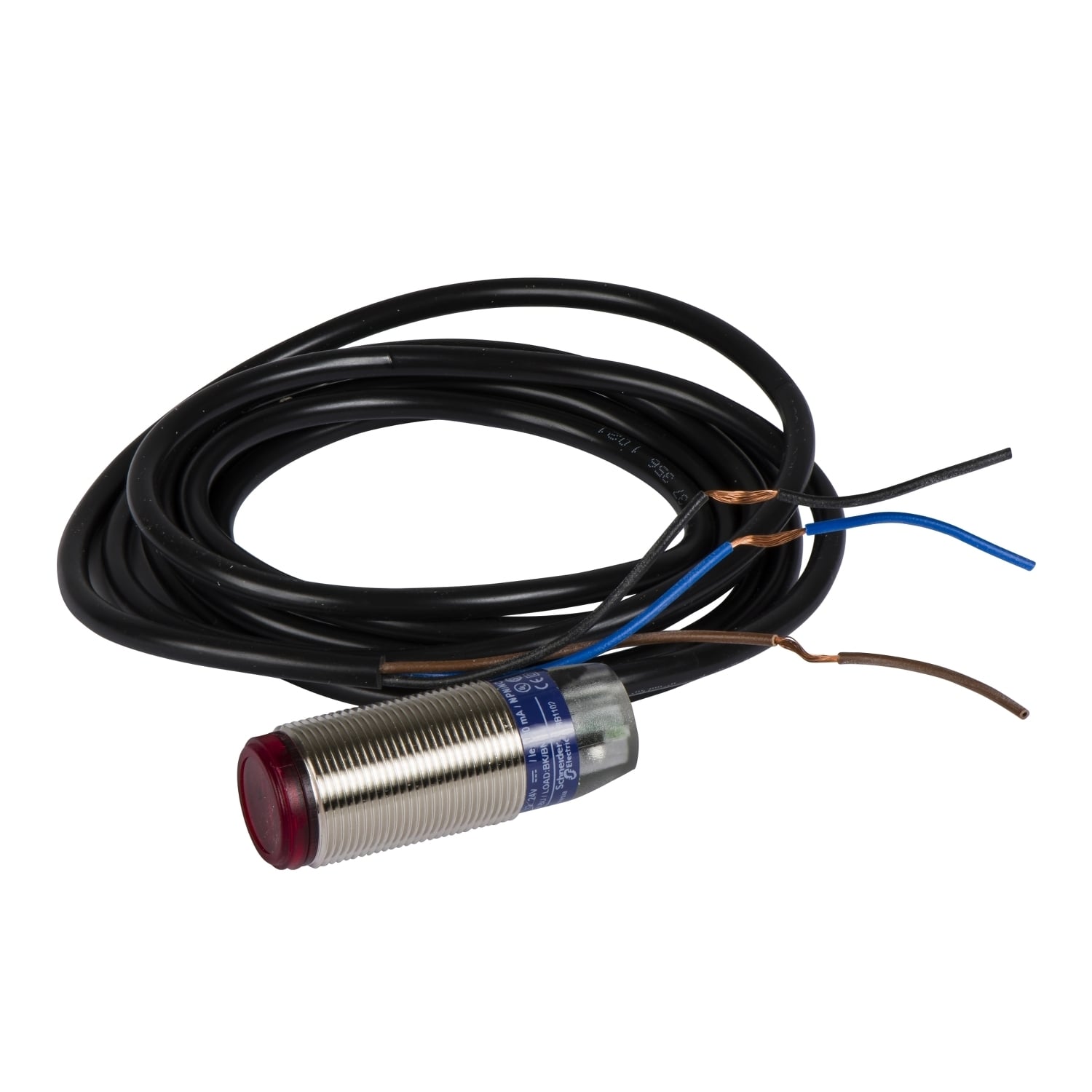

XUB0BPSNL2 OsiSense XU Simply Easy Axial Corrosion-Resistant Dusttight/Watertight Photoelectric Sensor, M18 Cylindrical Shape, 0.12/0.4/30/4.5 m, Infrared Sensing Beam, 2 ms Response, PNP 1NO-1NC Output

MFR:
Telemecanique Sensors
MFR #:
XUB0BPSNL2
UPC:
785901678779
Item #:
14841

Availability

Location Available Qty
Available Available to Order
$272.83 each

This design 18 multi mode photo-electric sensor has a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This multi-mode cylindrical photoelectric sensor has a metallic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides high robustness to the sensor. 3 LED display allows to identify status of the sensor and troubleshoot issues. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Manuals and Documentation
Catalog Number XUB0BPSNL2
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application -
Connection Cable
Enclosure IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,NICKEL PLATED BRASS
Operating Cycles <= 250 Hz
Output PNP;1 NO or 1 NC programmable;Discrete;Solid state
Sensing Range 3-3 M POLARISED REFLEX NEED REFLECTOR XUZC50-20-20 M THRU BEAM NEED A TRANSMITTER XUB0BKSNL2T-0.12-0.12 M DIFFUSE WITH BACKGROUND SUPPRESSION-0.3-0.3 M DIFFUSE,> 0...65.62 FT (> 0...20 M)
Special Features 1 LED green)supply;1 LED red)instability;1 LED yellow)output state
Standard CE-CSA-UL,IP65 DOUBLE INSULATION IEC 60529-IP67 DOUBLE INSULATION IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=872608&lang=en-us
UPC 785901678779
GTIN 03389110148459
Item Type General purpose multimode;Multimode;Cylindrical M18;Photo-electric sensor
Size 0.71
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR)
Operating Temperature -25-55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
