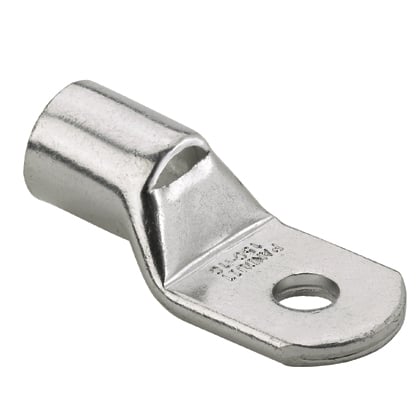

LCMA50-10-L Pan-Lug LCMA 1-Hole Metric Compression Connector Lug With Inspection Window, 50 sq-mm Rigid/Stranded Copper Conductor, Die Code: P37, 0.43 in Stud, Tin Plated Copper
- MFR:
- Panduit
- MFR #:
- LCMA50-10-L
- UPC:
- 074983769452
- Item #:
- 1479704
LCMA50-10-L Pan-Lug LCMA 1-Hole Metric Compression Connector Lug With Inspection Window, 50 sq-mm Rigid/Stranded Copper Conductor, Die Code: P37, 0.43 in Stud, Tin Plated Copper
- MFR #:
- LCMA50-10-L
- UPC:
- 074983769452
- Item #:
- 1479704
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$7.2964
each
The LCMA50-10-L Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
Manuals and Documentation
| Catalog Number | LCMA50-10-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Argentina |
| Made in USA | No |
| Material | Tin-Plated Copper |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| UPC | 074983769452 |
| GTIN | 00074983769452 |
| Item Type | Metric Compression Lug |
| Size | 50mm² Class 2 |
| Stud Size | 0.43 IN |
