VCD01 TeSys Emergency Stop High Performance Main Disconnect Switch With 1-Hole Mounting, 690 V AC, 11 A, 3NO 3 Form A Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- VCD01
- Item #:
- 147795
VCD01 TeSys Emergency Stop High Performance Main Disconnect Switch With 1-Hole Mounting, 690 V AC, 11 A, 3NO 3 Form A Contact, 3 Poles
- MFR #:
- VCD01
- Item #:
- 147795
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$212.55
each

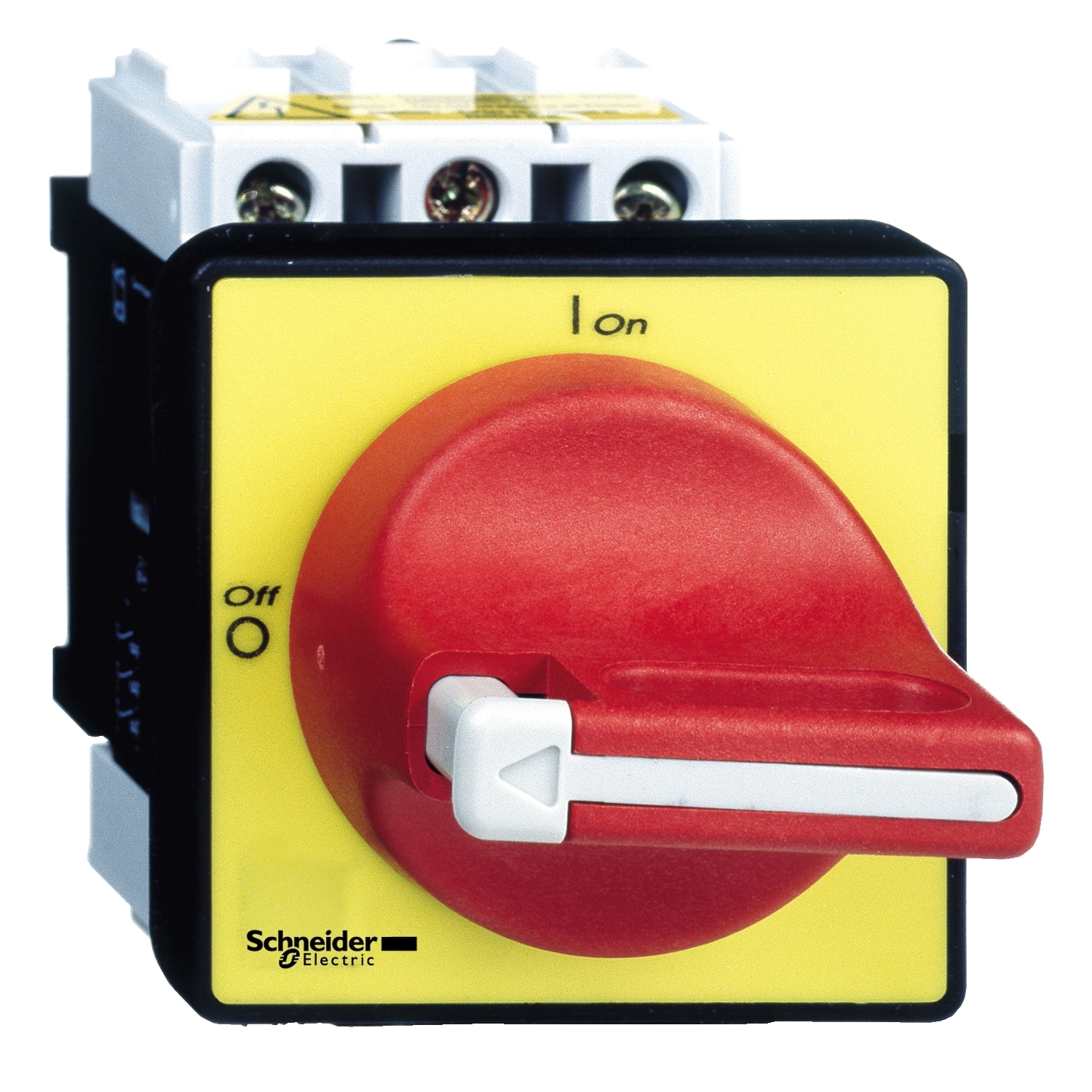

VCD01 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 20A 690V, it is used for main and emergency stop switching in motor applications up to 5.5kW@400V AC-23. Composed of a V1 switch body, and a red padlockable handle, and a yellow 60x60mm front plate. For door mounting, with a central fixing handle, it ensures IP65 to the mounting. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Manuals and Documentation
| Catalog Number | VCD01 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Actuator | Red;Rotary handle |
| Connection | Power circuit screw clamp terminals 10-10 mm² solid;power circuit screw clamp terminals 6-6 mm² flexible - with cable end |
| Contact Configuration | 3 NO |
| Mounting | Mounting Holes |
| Number of Poles | 3 |
| Special Features | 1 to 3 padlocks 4-8 mm;High performance |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=643486&lang=en-us |
| GTIN | 03389110724868 |
| Item Type | Emergency stop switch disconnector |
| Size | 60 x 60 mm |
| Cross Reference Products | Rockwell OT16ET3S|Schneider VCD01|SquareD VCD01 |
