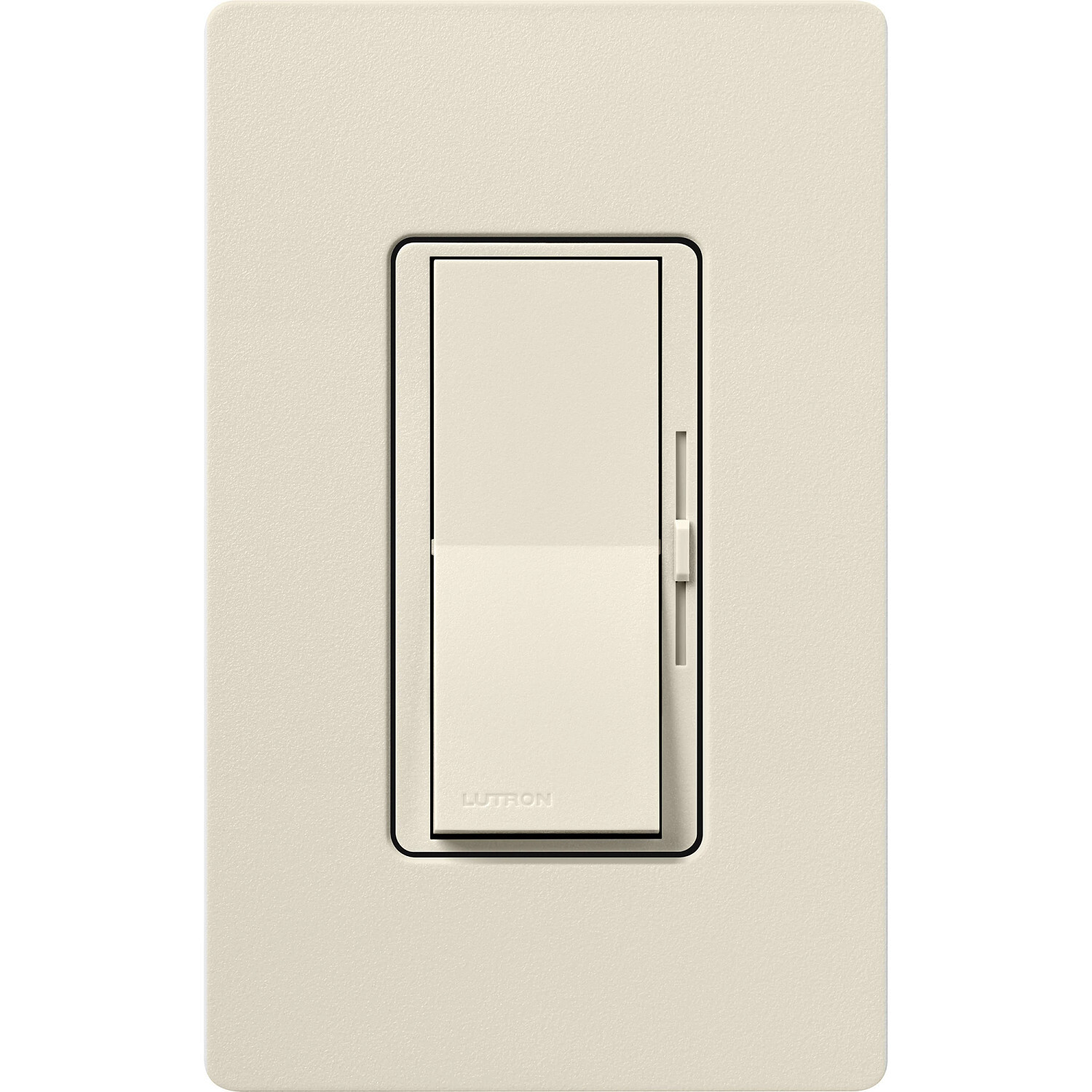

DVSCCL-253P-PM Diva LED+ Dimmer Switch, No Neutral Required, 250W LED, 1 Pole/3-Way, 120V, Pumice
- MFR:
- Lutron Electronics
- MFR #:
- DVSCCL-253P-PM
- UPC:
- 784276289320
- Item #:
- 1476400
DVSCCL-253P-PM Diva LED+ Dimmer Switch, No Neutral Required, 250W LED, 1 Pole/3-Way, 120V, Pumice
- MFR #:
- DVSCCL-253P-PM
- UPC:
- 784276289320
- Item #:
- 1476400
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

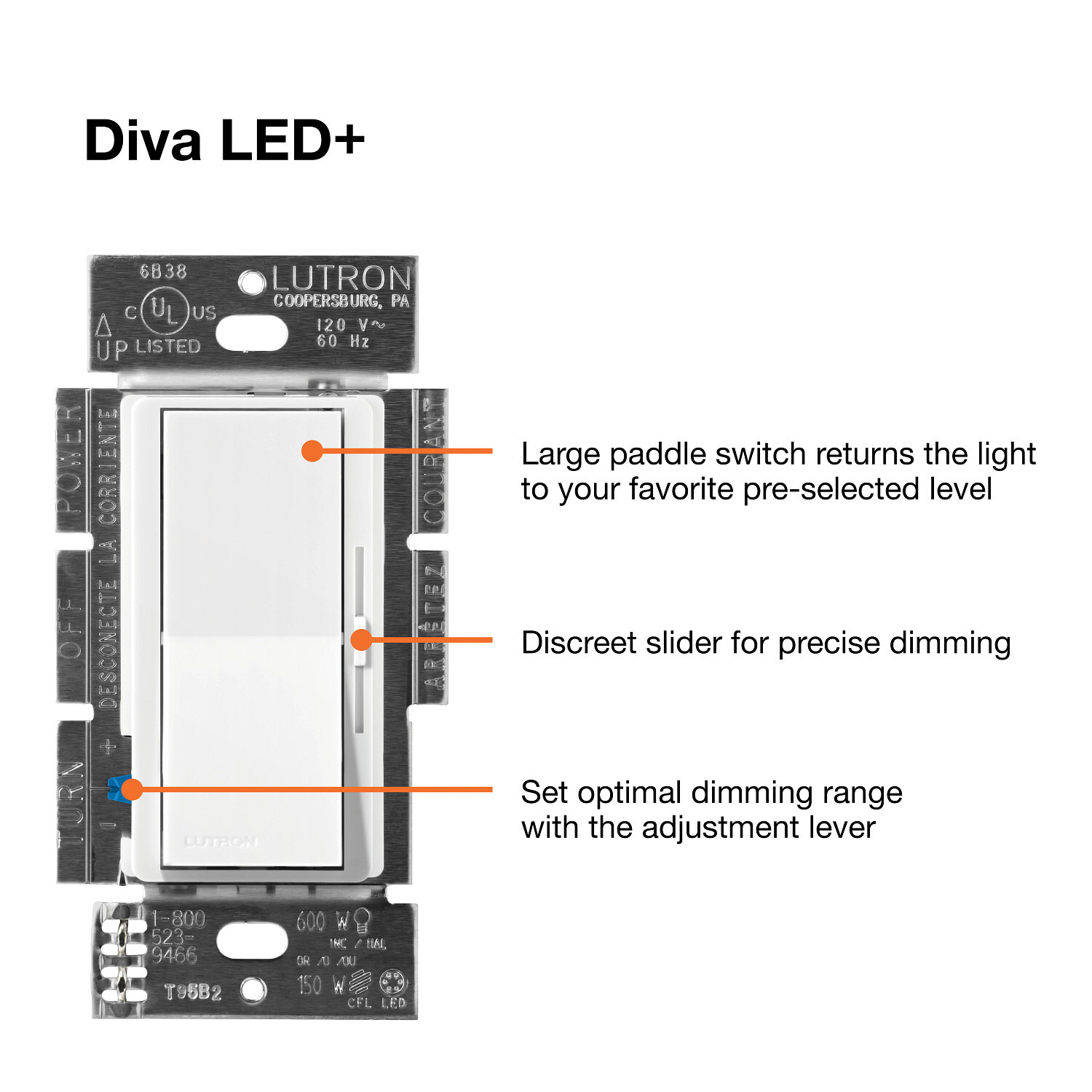

The Lutron Diva 250W LED+ dimmer switch includes the most advanced technology for superior dimming for up to 250W of dimmable LED, 600W of Incandescent/Halogen, or 350W Lutron Hi-Lume A-Series LTE LED Driver. The Diva LED+ dimmer switch features a large paddle switch to turn the lights ON/OFF and smooth and linear slider to dim or brighten the lights. Set a favorite preset level with the slider before turning on. The Diva 250W LED+ Dimmer switch also features an easy low-end trim adjustment directly on the dimmer, which eliminates complicated programming or having to turn the power off. Available in 20+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Manuals and Documentation
| Catalog Number | DVSCCL-253P-PM |
| Manufacturer | Lutron Electronics |
| Brand | Lutron |
| Actuator | Paddle switch |
| Application | Lighting Control |
| Color | Pumice |
| Connection | Wire Leads |
| Enclosure | Plastic |
| Frequency Rating | 60 HZ |
| Insulation | Plastic |
| Material | Plastic/Metal |
| Mounting | Wall |
| Number of Poles | 1 |
| Special Features | Controls 250 W dimmable LED/CFL (screw-base), 600 W incandescent/halogen or 350 W Hi-Lume 1 percent 2-wire LED driver loads. Paddle turns on/off. Slide up to brighten, down to dim. Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents. |
| Standard | UL, CSA, NEMA SSL-7A Type 2 |
| UPC | 784276289320 |
| GTIN | 00784276289320 |
| Item Type | Dimmer, 3-way/single-pole |

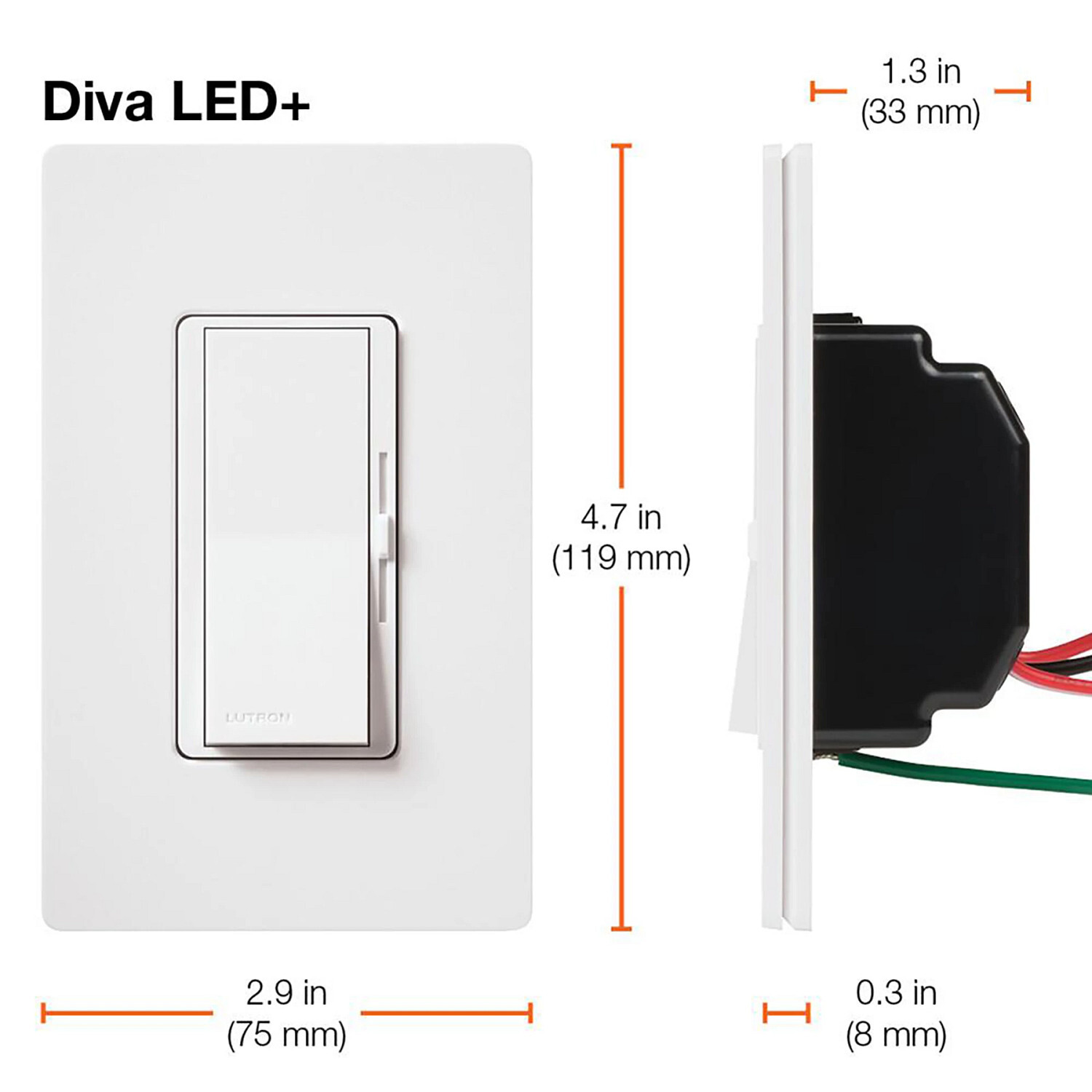

| Size | 4.69 x 2.94 |
| Environmental Conditions | Indoor use only |
| Operating Temperature | 32 to 104 F |
| Voltage Rating | 120 |
| Wattage | 600 W |
