Appleton

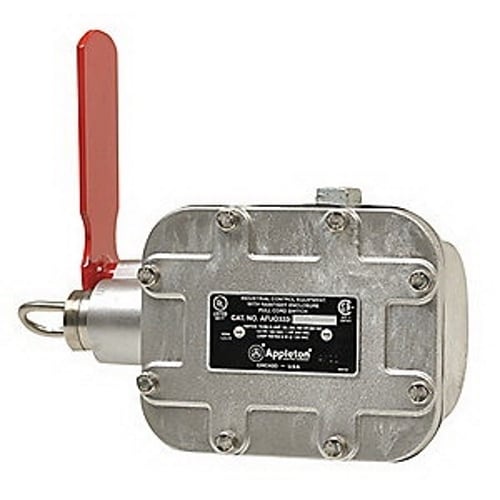

Conveyor Control Switch, Left Hand Single End, Series: AFU, 600 VAC/230 VDC, 15/0.4 A, NO/NC-DB/TCDB, 15 A at 120/240/480/600 VAC/0.8 A at 115 VDC/0.4 A at 230 VDC Contact, Flag Arm, NEMA 3/3R/4/4X/12 Enclosure, Aluminum, Environmental Conditions: -40 to 66 deg C Temperature, 7.88 in W x 9.75 in H

MFR:
Appleton Electric
MFR #:
AFU033350
UPC:
781381741125
Item #:
147568

Availability

Location Available Qty
Available Available to Order
$2,435.22 each

AFU Series Single End Left Emergency Cable Pull Switch, Material: Cast Aluminum Case, Enclosure: NEMA 3, 4, 4X, 12, Contact Configuration: NO/NC-DB, TCDB, Contact Rating: AC: 15 AMP At 120, 240, 480, 600 VAC, DC: 0.8 AMP At 115 VDC, 0.4

Manuals and Documentation
Catalog Number AFU033350
Manufacturer Appleton Electric
Brand Appleton
Country of Origin United States
Made in USA Yes
Application For Used In Control Circuit Of Magnetic Motor Starters To Shut Down Motor Driven Conveyors Or Other Machinery
Contact Configuration NO/NC-DB, TCDB
Contact Rating AC: 15 AMP At 120, 240, 480, 600 VAC, DC: 0.8 AMP At 115 VDC, 0.4 AMP At 230 VDC
Enclosure NEMA 3, 4, 4X, 12
Indicator Flag Arm
Material Cast Aluminum Case
Special Features Rugged torsion spring for positive actuation of flag arm; Stainless steel bushing may be easily reversed to increase or decrease actuation force; Two 1 IN conduit openings (top and bottom); Emergency stop or normal stop switch for conveyor lines, cranes, unloaders, bulk handling systems; For use in: steel mills, mining ore and coal handling operations, automotive and other assembly lines, warehouses, loading docks and other industrial processes; Steel with red epoxy paint flag arm; Stainless steel actuator shaft, retaining ring, clevis loop and torsion springs; Peened enclosure
Standard UL 508, UL 698, UL 1203, E164877, E10449 UL Listed
UPC 781381741125
GTIN 00781381741125
Item Type AFU Series Single End Left Emergency Cable Pull Switch
Operating Temperature -44 To 66 DEG C
