SQUARE D

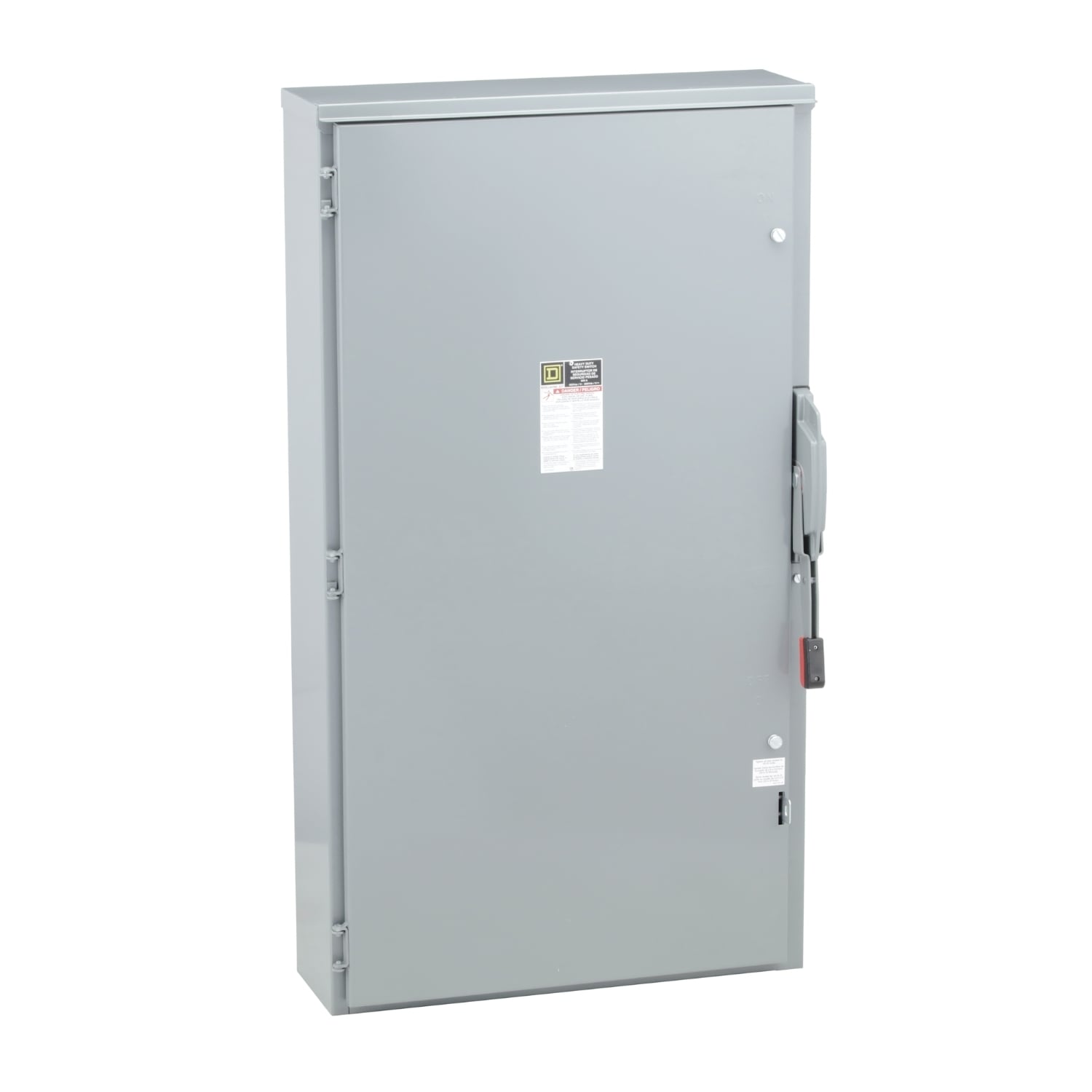

H366NR E5 Series Heavy Duty Fusible Iceproof Rainproof Sleetproof Safety Switch With Factory Installed Neutral, 600 V AC/DC, 600 A, 200 hp, 500 hp, 3PST Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
H366NR
UPC:
785901195825
Item #:
147517

Availability

Location Available Qty
Available 2 ea
$13,706.66 each

The Square D by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 600A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of & 600VAC/DC. The enclosure is made of galvannealed steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.

Manuals and Documentation
Catalog Number H366NR
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Fuse Type H or K;R or J
Phase 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364773&lang=en-us
UPC 785901195825
GTIN 00785901195825
Width 27.88
Width UOM Inch
Height 50.31
Height UOM Inch
Depth 10.13 IN
