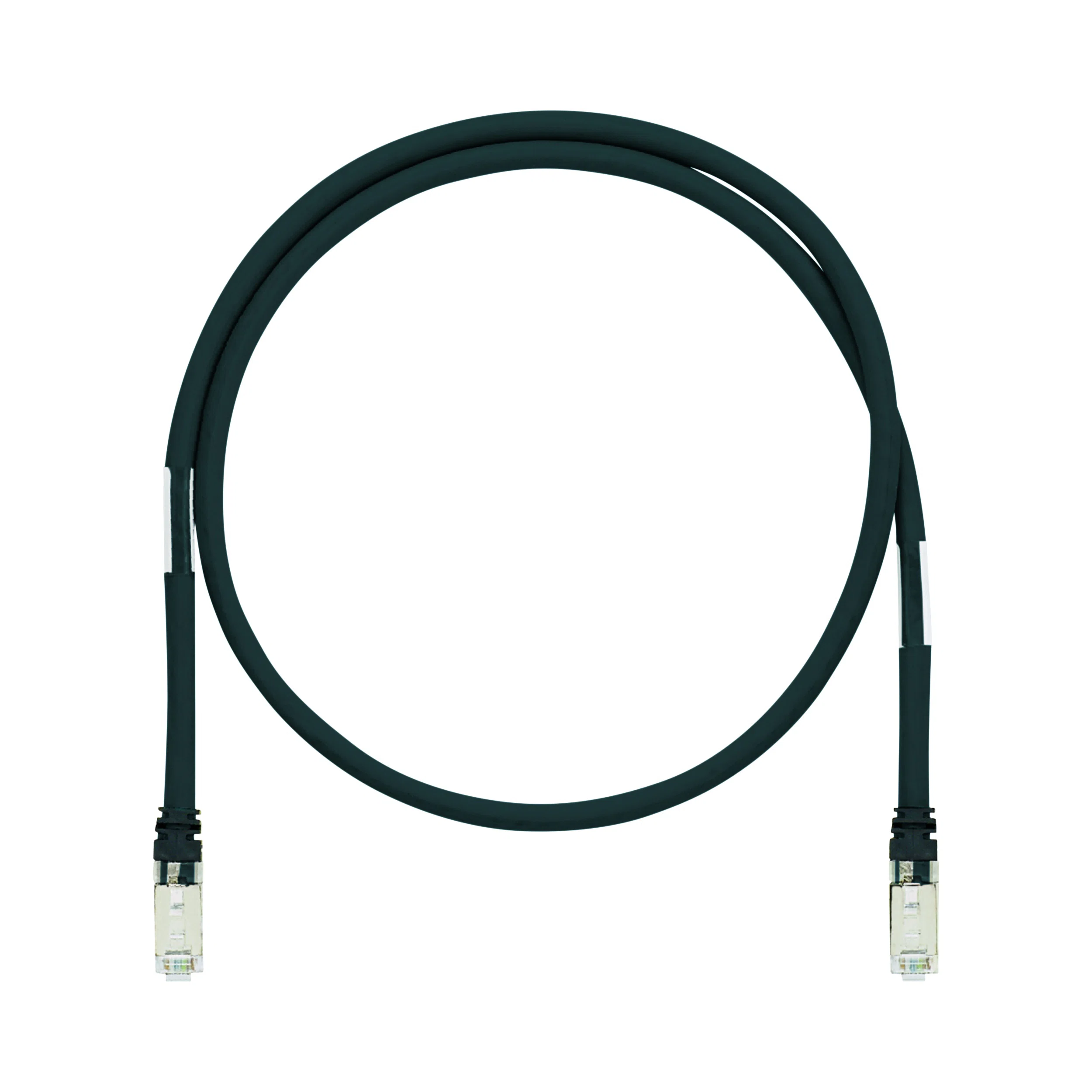

ISTPH6X1MBL IndustrialNet Flame-Retardant Patch Cord With 7.4 mm Cable Jacket, Cat 6A, 26 AWG Shielded Twisted 4-Pair SF/UTP Stranded Copper Conductor, 4-Pair RJ45 T568B 8-Position Modular Plug Connector, 1 m L Cord
- MFR:
- Panduit
- MFR #:
- ISTPH6X1MBL
- UPC:
- 613056571785
- Item #:
- 1475044
ISTPH6X1MBL IndustrialNet Flame-Retardant Patch Cord With 7.4 mm Cable Jacket, Cat 6A, 26 AWG Shielded Twisted 4-Pair SF/UTP Stranded Copper Conductor, 4-Pair RJ45 T568B 8-Position Modular Plug Connector, 1 m L Cord
- MFR #:
- ISTPH6X1MBL
- UPC:
- 613056571785
- Item #:
- 1475044
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$58.54
each

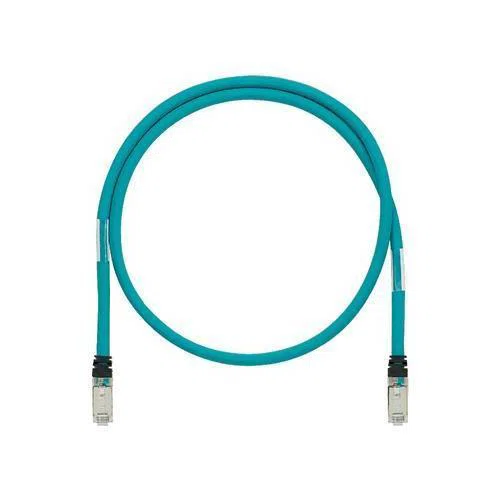

Industrial Patch Cords shall be constructed of Category 6A, industrial grade, 26 AWG stranded, twisted 4-pair shielded SF/UTP cable with a flame-retardant (CMR) thermoplastic elastomer (TPE) jacket. Patch cord cable shall be offered in teal and black colors and lengths for design flexibility. Each patch cord shall be pre-terminated to include Category 6A RJ45 shielded modular plugs on each end, with a black strain relief boot and wired according to the T568B standard. Each patch cord is designed to support high-flex applications and is rated for 600 V panel or on-machine applications when the space is shared with high voltage power cables.
Manuals and Documentation
Features
- Robust 600 V rated construction - allows for patch runs between automation devices in industrial environments, rated for 600 V panel or on-machine applications when the space is shared with high voltage power cables, plug contact plated with 50 micro inches of gold
- 100% performance tested for wire map, next and return loss - factory testing provides confidence that each patch cord delivers specified performance
- Centered de-embedded plug - performs in center of ANSI/TIA-568-C.2 component range, ensuring interoperability and optimum performance
- Integral pair manager - optimizes performance and consistency by reducing untwist at the plug
- Flexible stranded cable - 26 AWG stranded copper cable with a nominal diameter of 7.4 mm (0.29 in) allows for high density applications and superior panel cable management
- Identification provides for future traceability - identification of performance level, length and quality control number is provided on each cord
- Robust 600 V rated construction - allows for patch runs between automation devices in industrial environments, rated for 600 V panel or on-machine applications when the space is shared with high voltage power cables, plug contact plated with 50 micro inches of gold
- 100% performance tested for wire map, next and return loss - factory testing provides confidence that each patch cord delivers specified performance
- Centered de-embedded plug - performs in center of ANSI/TIA-568-C.2 component range, ensuring interoperability and optimum performance
- Integral pair manager - optimizes performance and consistency by reducing untwist at the plug
- Flexible stranded cable - 26 AWG stranded copper cable with a nominal diameter of 7.4 mm (0.29 in) allows for high density applications and superior panel cable management
- Identification provides for future traceability - identification of performance level, length and quality control number is provided on each cord
| Manufacturer Part Number | ISTPH6X1MBL |
| Brand | Panduit® |
| Manufacturer | Panduit |
| UPC | 613056571785 |
| EAN | 0613056571785 |
| Country Of Origin | CR |
| Category Type | Cat 6A |
| Conductor Size | 26 AWG |
| Conductor Type | Shielded Twisted 4-Pair SF/UTP Stranded Copper |
| Connector Type | 4-Pair RJ45 T568B 8-Position Modular Plug |
| Cord Length | 1 m |
| Jacket Color | Black |
| Jacket Material | TPE |
| Temperature Rating | -10 to 60 deg F |
| Type | Flame-Retardant |
| Voltage Rating | 600 V |
| Alternative Part Number | 15590463 | 15590490 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class Ea standards; Meets all applicable ANSI/TIA-968-A requirements; Meets IEC 60603-7 UL-rated: UL 1863 approved; Meets IEEE 802.3af and IEEE 802.3at for PoE+ applic | ARRA Compliant | Buy American Act Compliant | RoHS 2011/65/EU/2015/863/EU | IEC 60603-7 | UL 1863 | IEEE 802.3AF/802.3AT | UL AWM Style 2463 | CSA Approved |
| Application | 10BASE-T (Ethernet), 100Base-T (Fast Ethernet), 1000Base-T (Gigabit Ethernet), Industrial Ethernet, Ethernet/IP, Control Panel Deployments Featuring Power Source Voltages, High Flex Applications Robotic, C-Track and Industrial Applications |
