Appleton

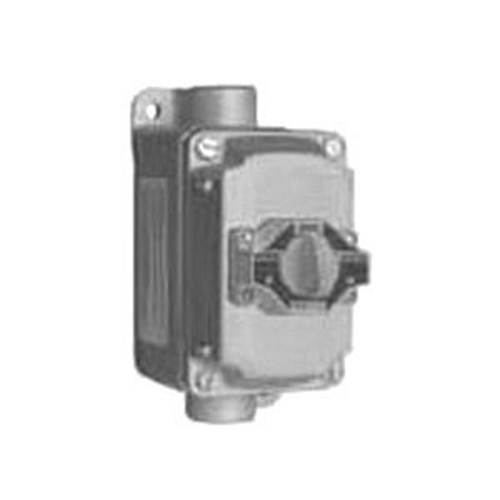

4-Circuit 1-Gang Selector Switch; Maintained Action, 3-Positions, 600 Volt AC

MFR:
Appleton Electric
MFR #:
EFDCB175345
UPC:
781381700979
Item #:
147480

Availability

Location Available Qty
Available Available to Order
$601.81 each

Appleton Contender EFDCB Series 1-Gang 4 Circuit Selector Switch, Number Of Steps: 3, Contact Rating: 10 AMP At 600 VAC, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Feed-Thru Hub, Operation: Maintained, Standard: UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1 And 2, Groups B , C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, For Used In Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors

Manuals and Documentation
Catalog Number EFDCB175345
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Used In Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors
Enclosure NEMA 3, 7CD, 9EFG
Mounting Surface
Special Features Maintained Contact; Explosionproof, dust-ignitionproof; Furnished with Internal Ground Screw; EFDB Selector Switches - Eliminate need for adding sealing fittings and compound at each conduit entrance; Selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements; Assures positive contact and long, trouble-free operation; Provide Circuit Control And/Or Selection; EFD/EFDB and EDS factory sealed control stations confine arcing of device within the enclosure, preventing ignition of ignitable atmospheres during control operation of motors and other equipment
Standard UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1 And 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III
UPC 781381700979
GTIN 00781381700979
Item Type EFDCB Series 1-Gang 4 Circuit Selector Switch
