Telemecanique

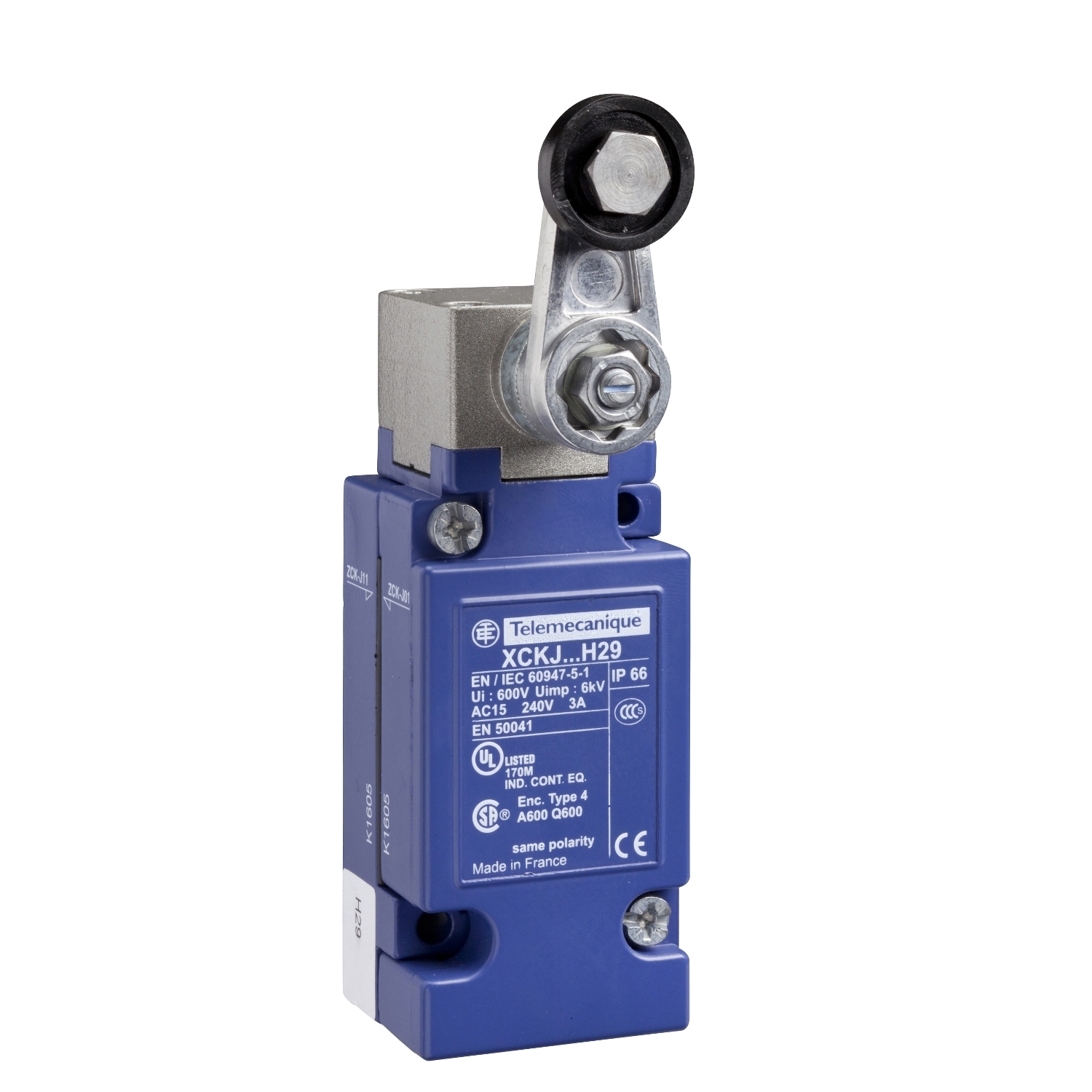

XCKJ110513H7 OsiSense Limit Switch, 600 V AC, 10 A, Spring Return Roller Lever Actuator, 1CO Contact, 1 Poles

MFR:
Telemecanique Sensors
MFR #:
XCKJ110513H7
Item #:
1473202

Availability

Location Available Qty
Available Available to Order
$551.93 each

limit switch XCKJ - steel roller lever - 1C/O - snap action - 1/2NPT

Manuals and Documentation
Catalog Number XCKJ110513H7
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Unknown
Made in USA No
Action Lateral approach, 1 or 2 programmable direction;Snap action;By 30 Degrees cam
Actuator Spring return roller lever metal
Amperage Rating 10
Application INDUSTRIAL
Connection Screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
Contact Configuration 1 C/O
Mounting By The Body
Number of Poles 1
Operating Cycles 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features METAL,PLUG-IN BODY
Standard 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CSA C22.2 NO 14-EN 60947-5-1-CENELEC EN 50041-EN 60204-1-IEC 60947-5-1-UL 508-IEC 60204-1,IK07 EN 50102,IP66 IEC 60529,UL-CSA-CCC
GTIN 03389118120792
Item Type Limit switch
Size 1.42
Operating Temperature -25-70 A Degrees C
Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A
