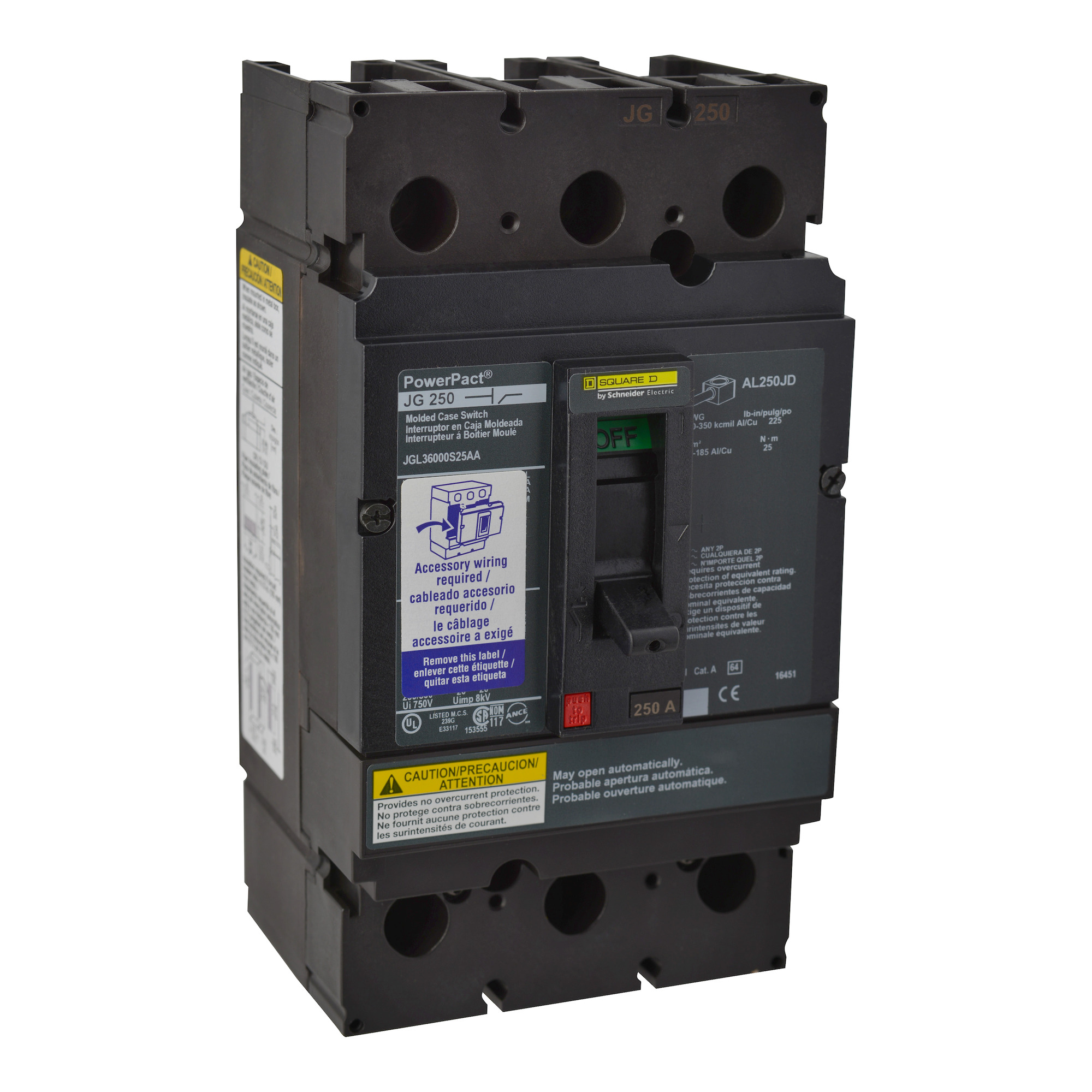

JGL36000S25AA PowerPact Molded Case Automatic Switch, 600 V AC, 250 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- JGL36000S25AA
- Item #:
- 1471402
JGL36000S25AA PowerPact Molded Case Automatic Switch, 600 V AC, 250 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR #:
- JGL36000S25AA
- Item #:
- 1471402
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT J-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. PowerPacT J automatic switches comply to UL, CSA, NMX, and IEC standards and are CE marked. This unit includes a factory installed 1A/1B auxiliary switch.
Manuals and Documentation
| Catalog Number | JGL36000S25AA |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=425615&lang=en-us |
