Panduit®

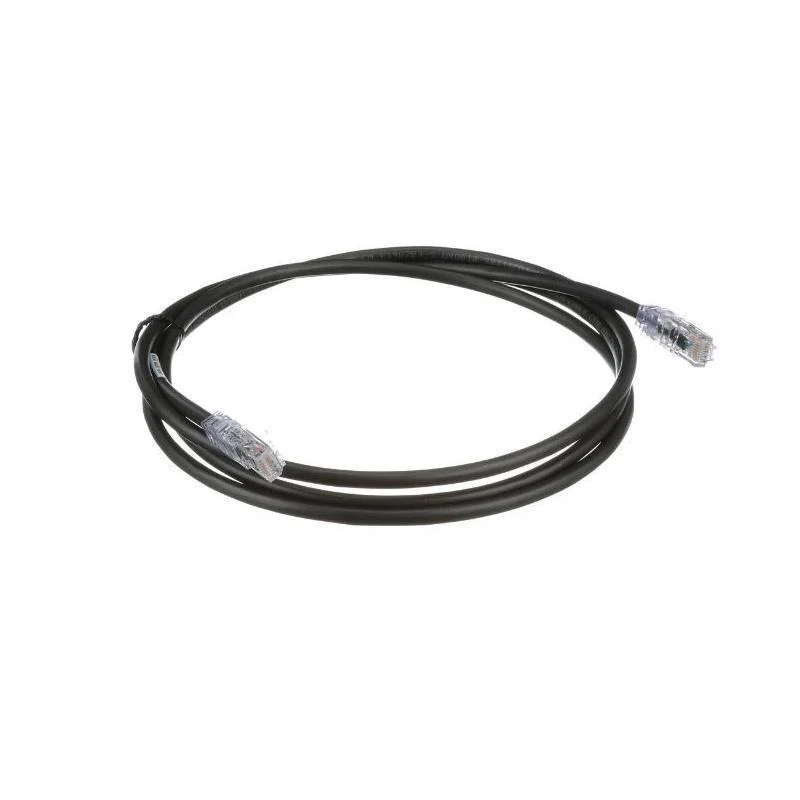

UTP6AX25BL TX6A 10Gig Pan-Net CM Rated UTP Patch Cord, Cat 6a/Class EA, 24 AWG U/UTP Solid Copper Conductor, Modular Plug Connector, 25 ft L Cord

MFR:
Panduit
MFR #:
UTP6AX25BL
UPC:
613056772762
Item #:
1470807

Availability

Location Available Qty
Available Available to Order
$53.00 each

The TX6A™ 10Gig UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, solid, CM cable with enhanced performance modular plugs. The patch cord offers a small 1/4 in (6.4 mm) cable diameter. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds and changes. The patch cord's slender strain relief boot provides easy access in high density applications. Cat 6a/Class EA, UTP patch cords shall be constructed of 24 AWG solid copper cable with an enhanced performance modular plug on each end. Copper conductors in patch cable shall be twisted in pairs and separated by a quadrant separator. All four pairs shall be surrounded by solid foil tape and a flame retardant jacket. The tape shall suppress alien crosstalk and allow 10 GB®ps transmission. Patch cord cable shall be offered in multiple colors and lengths for design flexibility with a strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.

Manuals and Documentation

Features

  • 100% performance tested confidence that each patch cord delivers specified performance
  • Superior headroom provides the highest margins above the industry standard for both electrical and alien crosstalk performance
  • Flexible cable design improved cable management in high density applications enabling easier installations
  • Center de-embedded plug performs in center of ANSI/TIA-568.2-D component range ensuring interoperability and superior performance
  • Integral pair manager optimizes performance, consistency and reliability by reducing untwist at plug
  • Patented tangle-free latch - prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds, and changes
  • Slender strain relief boot - provides easy access in high density applications
  • Robust construction rated to 2500 mating cycles
  • Identification provides identification of performance level, length and quality control number for future traceability
  • Variety of cable colors and lengths - meets individual length and color coding requirements for greater system flexibility
  • RJ45 plug lock-in device - secures plug into jack to prevent unauthorized removal of patch cord
Manufacturer Part Number UTP6AX25BL
Brand Panduit®
Manufacturer Panduit
UPC 613056772762
EAN 0613056772762
Country Of Origin MX | CN | RO
Category Type Cat 6a/Class EA
Color Black
Conductor Size 24 AWG
Conductor Type U/UTP Solid Copper
Connector Type Modular Plug
Cord Length 25 ft
Jacket Color Black
Jacket Material PVC
Series UTP6AX
Temperature Rating 14 to 140 deg F
Type CM Rated
Alternative Part Number 17642339
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/8 | ANSI/TIA-568.2-D Category 6A | ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz | ANSI/TIA-1096-A formerly FCC Part 68 | IEC 60603-7 | UL 1863 | CAN/CSA-C22.2 UL File E129886 | RoHS Compliant | IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications
Application 10GBASE-T Ethernet, Data center I/O Consolidation, Data Center Server Virtualization, Consolidation of Network Interconnects, Back-Bone Aggregation, Parallel Processing and High Speed Computing Applications
