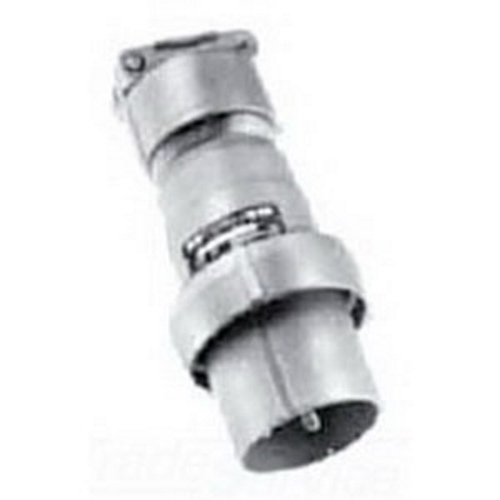

4 Pole 3 Wire Clamping Ring Plug; 100 Amp, 600 Volt AC/ 250 Volt DC
MFR: Appleton Electric
MFR #: AEP10463
UPC: 781381137003
Item #: 147078
4 Pole 3 Wire Clamping Ring Plug; 100 Amp, 600 Volt AC/ 250 Volt DC
MFR #: AEP10463
UPC: 781381137003
Item #: 147078
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1797.08
each
AE Series Grounding Style 2 Clamping Ring Plug, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 3 - 1 AWG, Amperage Rating: 100 AMP, Voltage Rating: 600 VAC, 250 VDC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Connection: Pressure Wire Terminal, Finish: Epoxy Powder Coat, Plug Cable Diameter: 7/8 IN, 1-7/16 - 1-3/4 IN, Standard: UL 1682, UL 1686, For AE1042, AE1048 Receptacles And APR10463 Connector Body
Manuals and Documentation
Features
- Discontinued
- Catalog Number
- AEP10463
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Amperage Rating
- 100
- Application
- For AE1042, AE1048 Receptacles And APR10463 Connector Body
- Connection
- Pressure Wire Terminal
- Material
- Copperfree (4/10 Of 1 PCT Maximum) Aluminum
- Number of Poles
- 4
- Number of Wires
- 3
- Special Features
- Grounding style: shell and extra pole; Weatherproof; Contacts exert constant pressure along the entire contact surface, providing electrical continuity, solid brass contacts with beryllium copper springs; Plug with clamp ring has neoprene gasket, ring threads onto screw cap receptacle to provide raintight assembly when properly tightened; Insulating blocks provide high degree of dielectric and mechanical strength and lowest moisture absorption, lowest arc tracking; Floating-type plug contacts self-align to receptacle contacts; For welders, generators, compressors, pumps, similar apparatus; Natural finish fiber glass reinforced phenolic insulation blocks
- Standard
- UL 1682, UL 1686
- UPC
- 781381137003
- GTIN
- 00781381137003
- Item Type
- AE Series Grounding Style 2 Clamping Ring Plug
- Voltage Rating
- 600 VAC, 250 VDC
- Wire Size
- 3 - 1 AWG
