Discontinued
Buchanan

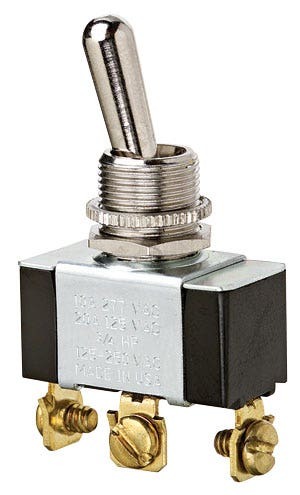

774013 Buchanan Standard Toggle Switch, 125/227 V AC, 20/10 A, 3/4 hp Power Rating, On-Off-On SPDT Contact

MFR:
Ideal Industries
MFR #:
774013
UPC:
781789740133
Item #:
146973

Availability

Location Available Qty
Available Available to Order

Great for power tool and motor control switch applicationsRugged long-wearing solid brass/nickel-plated bushings1/2 in. diameter mounting holeDielectric Strength: 1500VMechanical Life: 100,000 cyclesOperating Temperature: 32F to 185F (0C to 85C)DCRating: Factory tested 100,000 cycles to 21 Amp 14.8 VDC

Catalog Number 774013
Manufacturer Ideal Industries
Brand Buchanan
Country of Origin China
Made in USA No
Action SPDT
Actuator Toggle
Application For Power Tool And Motor Control Switch Applications
Connection Screw, 3 Terminals
Contact Rating Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC Rating
Mounting Mounting Holes
Number of Poles 1
Operating Cycles 100000 Cycles Mechanical Life
Special Features Features: Great For Power Tool And Motor Control Switch Applications; Rugged Long-Wearing Solid Brass/Nickel-Plated Bushings; 1/2 IN Diameter Mounting Hole; Dielectric Strength: 1500 V; Mechanical Life: 100000 Cycles; Operating Temperature: 32 DEG F To 185 DEG F (0 DEG C To 85 DEG C); DC Rating: Factory Tested 100000 Cycles To 21 AMP 14.8 VDC; Bulk Packaging Of 100 Available Upon Request; Dielectric Strength: 1500 V; Finish: Solid Brass/Nickel-Plated Bushings; Hp Rating: 3/4 HP At 125 To 250 VAC
Standard CSA, RU Listed, RoHS
RoHS URL https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF
UPC 781789740133
GTIN 00781789740133
Item Type Standard, On-Off-On
Size 1.130 IN Length X 0.570 IN Width X 0.610 IN Height
Operating Temperature 32 To 185 DEG F
Voltage Rating 125, 227
