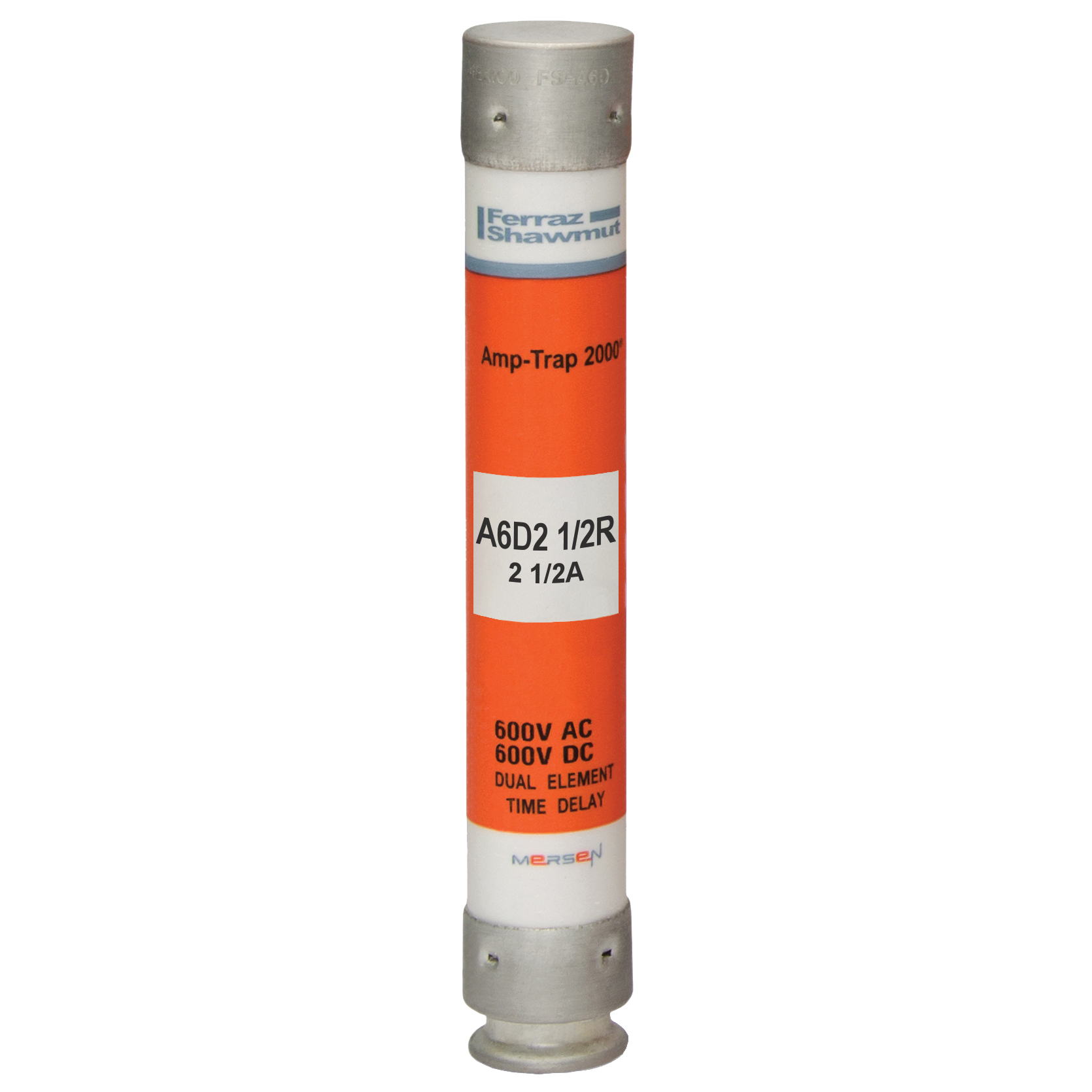

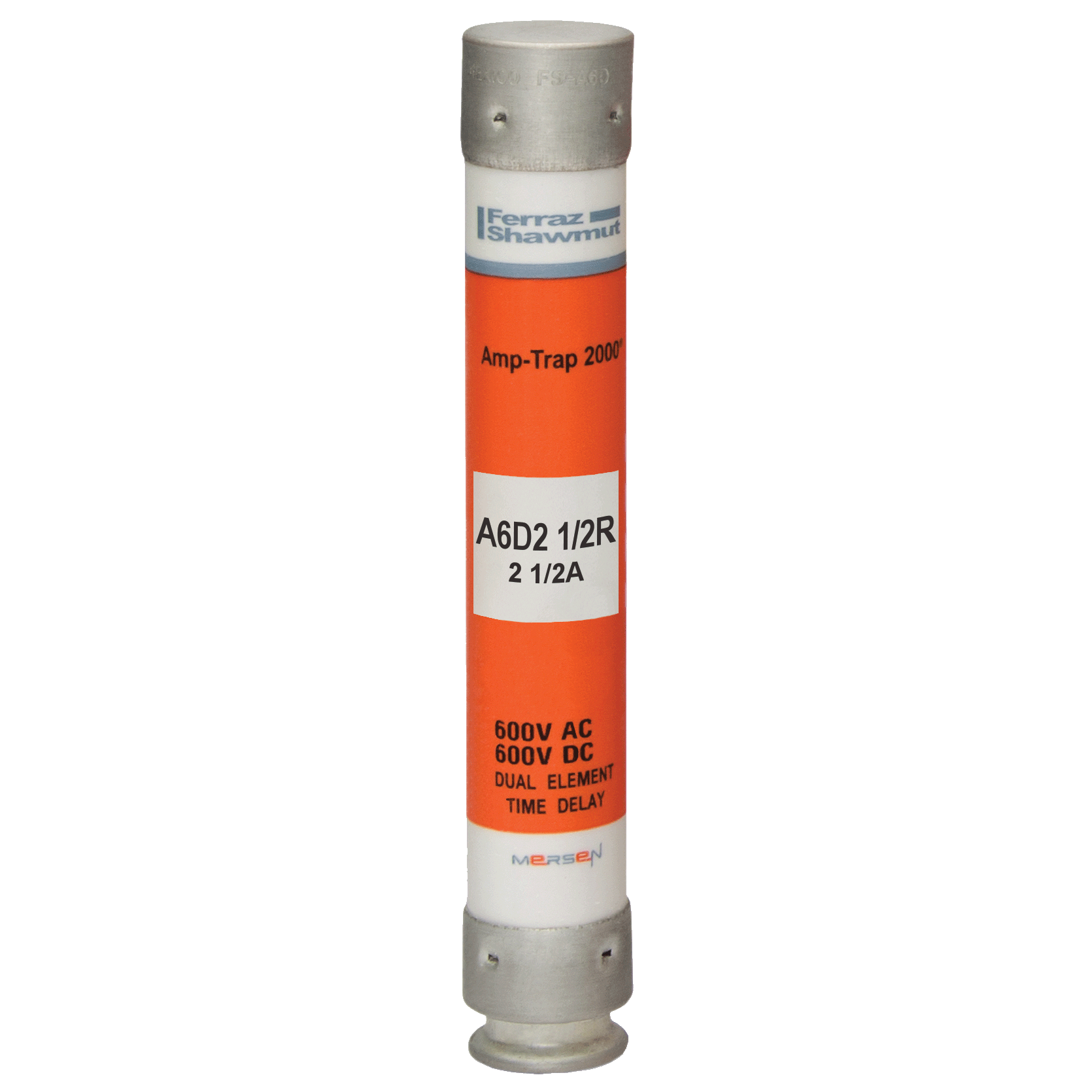

Fuse A6D-R - Class RK1 - Time-Delay 600VAC 600VDC 2.5A Ferrule
- MFR:
- Mersen
- MFR #:
- A6D2-1/2R
- UPC:
- 782001991661
- Item #:
- 146797
Fuse A6D-R - Class RK1 - Time-Delay 600VAC 600VDC 2.5A Ferrule
- MFR #:
- A6D2-1/2R
- UPC:
- 782001991661
- Item #:
- 146797
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Fuse A6D-R - Class RK1 - Time-Delay 600VAC 600VDC 2.5A Ferrule Amp-Trap 2000
Manuals and Documentation
| Catalog Number | A6D2-1/2R |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Motors Safety switches Transformers Branch circuit protection Disconnects Control panels All general-purpose circuits |
| Connection | Ferrule |
| Interrupt Rating | 200 KA |
| Mounting | Clip |
| Special Features | Non-indicating or Solid state SmartSpot visual blown fuse indicator Time-delay for motor starting and transformer inrush currents without nuisance opening 600VAC & 600VDC dual rated 300kA interrupting rating - self-certified, UL witnessed tests Extremely current-limiting for low peak let-thru current Recommended for Arc Flash energy reduction Easy 2-to-1 selectivity for prevention of nuisance shut downs and “black outs” Rejection-style design prevents replacement errors (when used with recommended fuse blocks) High-visibility orange label gives instant brand recognition Reduced inventory by taking the place of class RK5, K, and H fuses Metal-embossed date and catalog number for easier traceability and lasting identification Fiberglass body provides dimensional stability in harsh industrial settings |
| Standard | UL listed to standard 248-12 File E2137 DC listed to UL standard 248 CSA certified to standard C22.2 No. 248.12 |
| UPC | 782001991661 |
| GTIN | 00782001991661 |
| Item Type | Class RK1 |
| Size | 5 x 0.81 |
| Voltage Rating | 600 |
