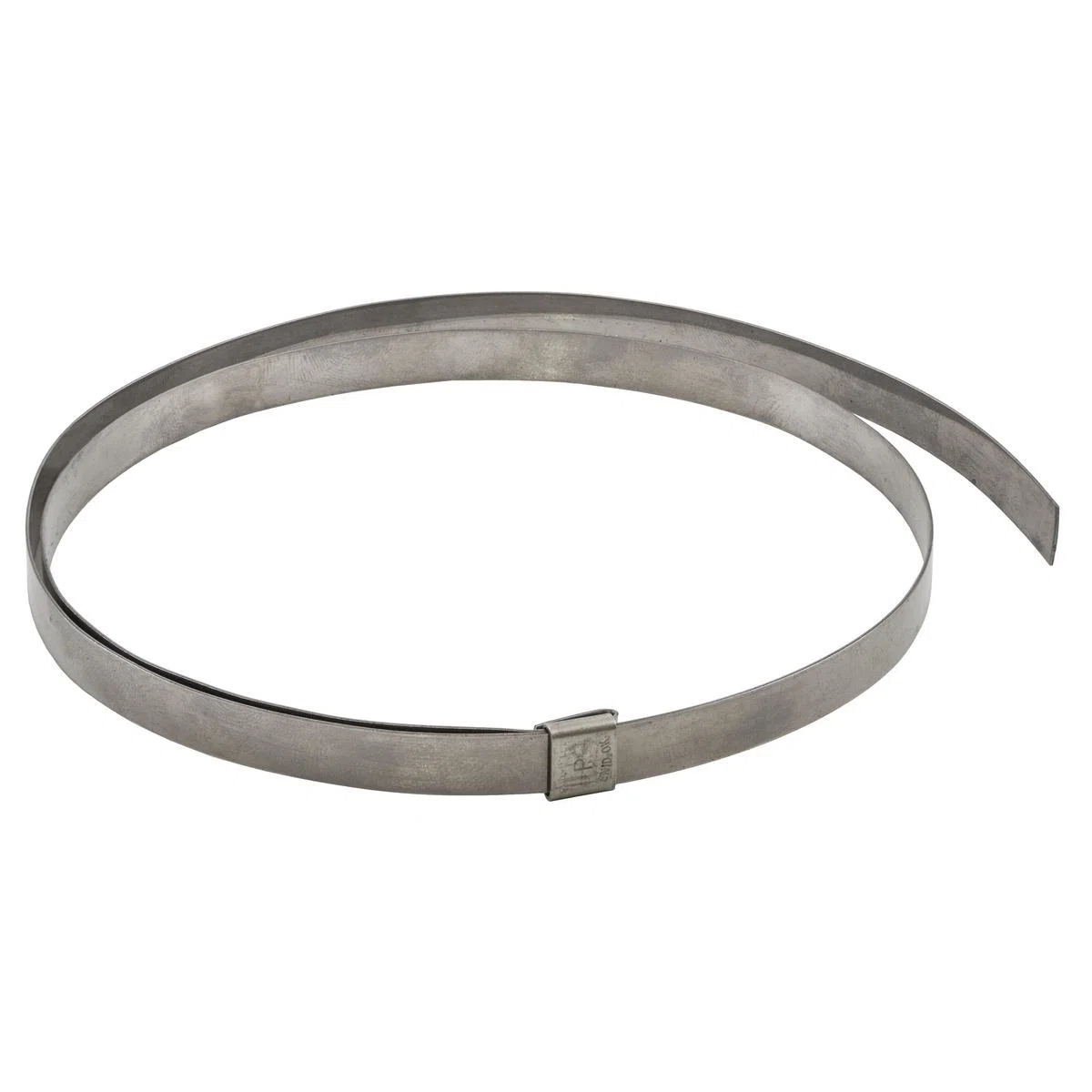

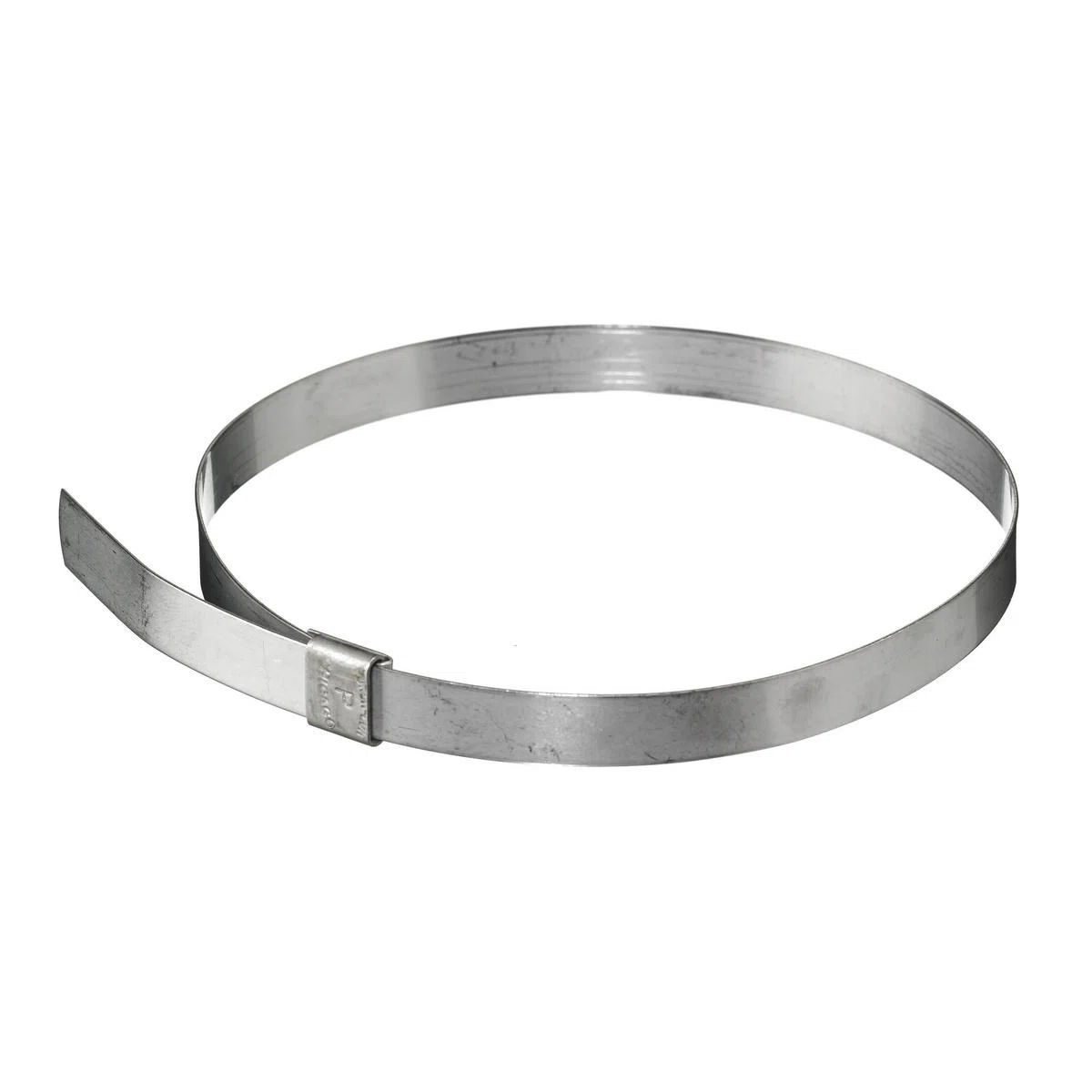

20320052 Standard Non-Mounted Cable End Band, 1-5/8 to 2-1/4 in Cable Woven Cable, Aluminum
- MFR:
- Hubbell
- MFR #:
- 20320052
- UPC:
- 783585326467
- Item #:
- 146796
20320052 Standard Non-Mounted Cable End Band, 1-5/8 to 2-1/4 in Cable Woven Cable, Aluminum
- MFR #:
- 20320052
- UPC:
- 783585326467
- Item #:
- 146796
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Punch-LokĀ® bands are applied over the tail of a grip to prevent the mesh from being tripped or pulled loose. Also, they assure full gripping action by locking the mesh of the tail in tight contact with the cable or rope. When the tail of a grip is the leading end, the bands are particularly important to prevent accidental release caused by tripping on obstructions. A conductor to conductor (double socking) pulling operation is a good example: where two grips connect two conductors to form a temporary splice. In all cases two Punch-LokĀ® bands should be double wrapped approximately one inch to two inches (2.54 to 5.08 cm) from the grips tail. Banding is required to ensure maximum reliability and guard against accidental release. It is also common practice to tape over the banded tail area to assure smooth passage through the sheaves. The conductor should be installed in the grip up to the elbows of the aluminum shoulders in order to assure full and complete gripping action as illustrated above.
Manuals and Documentation
Features
- Bands are applied over the tail of a grip to prevent mesh frombeing tripped or pulled loose
| Manufacturer Part Number | 20320052 |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| UPC | 783585326467 |
| EAN | 0783585326467 |
| Country Of Origin | US |
| Cable Type | Woven |
| Dimensions | 2-1/2 in ID x 5/8 in W |
| Material | Aluminum |
| Type | Standard Non-Mounted |
| Cable Size | 1-5/8 to 2-1/4 in |
| Alternative Part Number | 8926729 | 11829732 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | Limited |
| Standards Approvals | CSA Certified | UL Listed |
| Application | General Cable Pulling Applications |
| Maximum Diameter | 2-1/4 in |
| Minimum Diameter | 1-5/8 in |
