BURNDY

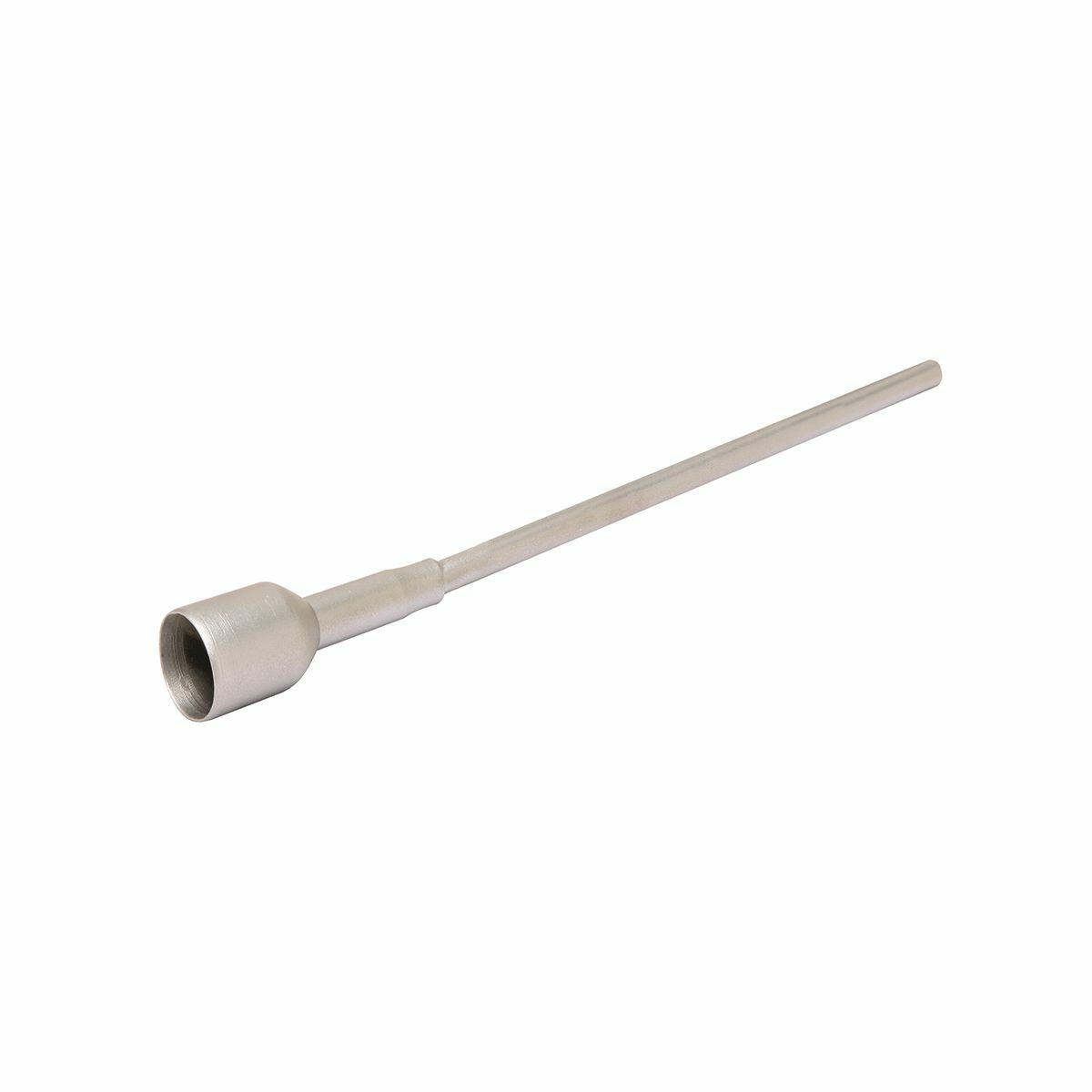

YE2CLH129 YE-LH Oiltight/Watertight Pin Terminal Connector, 2 AWG Stranded Copper Conductor, Copper

MFR:
Burndy, a Hubbell affiliate
MFR #:
YE2CLH129
UPC:
781810023358
Item #:
146751

Availability

Location Available Qty
Available Available to Order
$222.36 each
Manuals and Documentation
Catalog Number YE2CLH129
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin United States
Made in USA Yes
Application Wire Termination
Finish Tin-Plated
Insulation Y
Material COPPER
Special Features Features: Oil And Water-Tight Terminal With Shrouded, Tin-Plated, Copper Barrel And Brazed Plug, Recommended For Terminating Insulated Copper Conductor At Cutout, Transformer And Arrestor, Or For Joining Insulated Copper Riser To Overhead Conductor, Shroud Prevents Seepage Of Water Or Moisture Into Conductor Strands And Minimizes Taping, To Obtain A Tight Fit On Some Insulations In The Shroud It May Be Necessary To Either Pencil The Insulation Down, Or Build It Up With Tape, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W162 Die, (4), Y35, Y750 Tool, U2CRT Die, (2), Y45 Tool, U2CRT Die With PT-6515 Adapter, (2), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (2), Die Index: 162 Element A, Plug/pin Length: 6 IN, Plug/pin Diameter: 2 AWG Solid
UPC 781810023358
GTIN 00781810023358
Item Type Shrouded Pin Terminals
Temperature Rating 194
