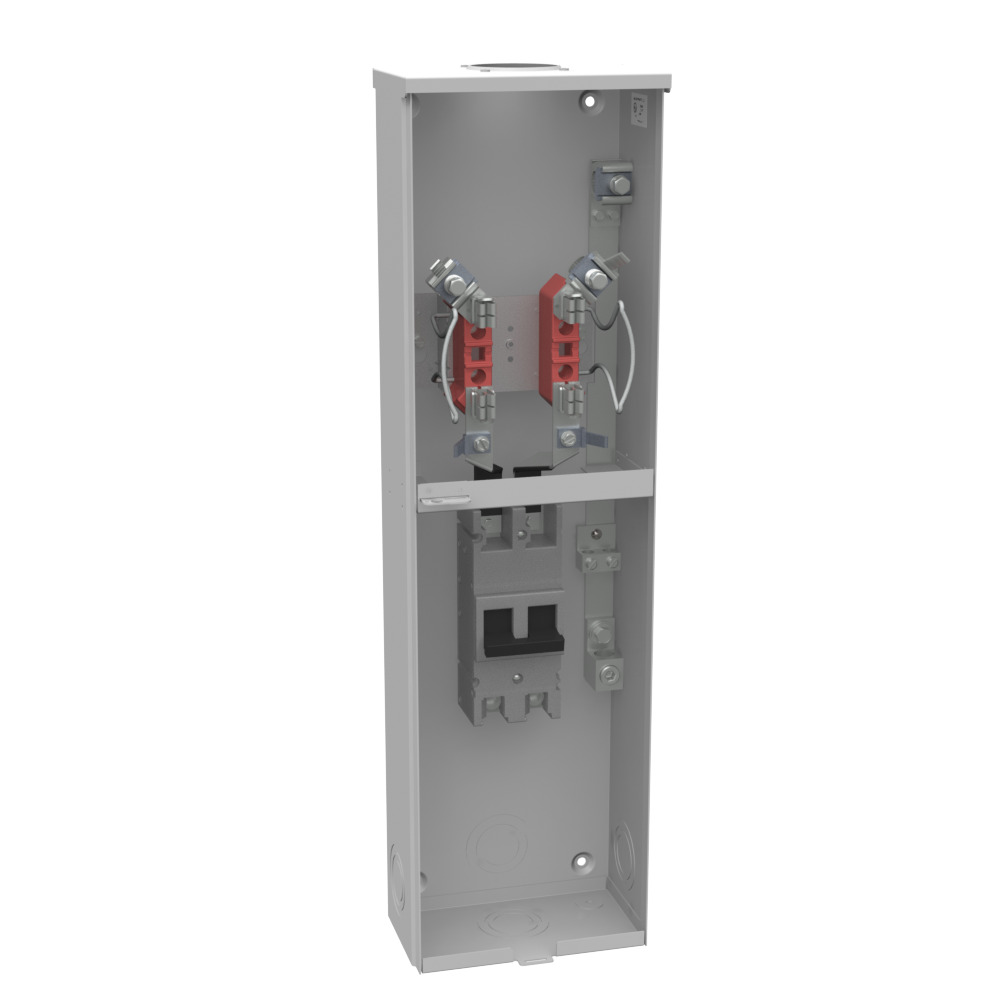

U7607-RL-200-KK-CECHA Single Position Meter Socket with Main Breaker, 200 Amp, 1 Phase, Ringless, Horn, 4 Term, OH, UG, 240V
- MFR:
- Milbank
- MFR #:
- U7607-RL-200-KK-CECHA
- UPC:
- 784572141704
- Item #:
- 146677
U7607-RL-200-KK-CECHA Single Position Meter Socket with Main Breaker, 200 Amp, 1 Phase, Ringless, Horn, 4 Term, OH, UG, 240V
- MFR #:
- U7607-RL-200-KK-CECHA
- UPC:
- 784572141704
- Item #:
- 146677
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,954.05
each
4 TERM RNGLS SML HUB OPEN HRN BYPS 1-200 AMP MN BRKR COMMONWEALTH EDISON CHICAGO HOUSING AUTHORITY
Manuals and Documentation
| Catalog Number | U7607-RL-200-KK-CECHA |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Meter Socket With Main |
| Bypass Type | Horn |
| Cable Entry | Overhead or Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Surface Mount |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Special Features | Commonwealth Edison Chicago Housing Authority |
| Standard | UL Listed;Type 3R |
| UPC | 784572141704 |
| GTIN | 00784572141704 |
| Item Type | Ringless Meter Socket |
| Length | 4.5 |
| Length UOM | Inch |
| Width | 8.125 |
| Width UOM | Inch |
| Height | 29 |
| Height UOM | Inch |
| Size | 4.5L x 8.125W x 29H |
| Terminals | Lay In |
| Voltage Rating | Up to 240 Volts Alternating Current |
