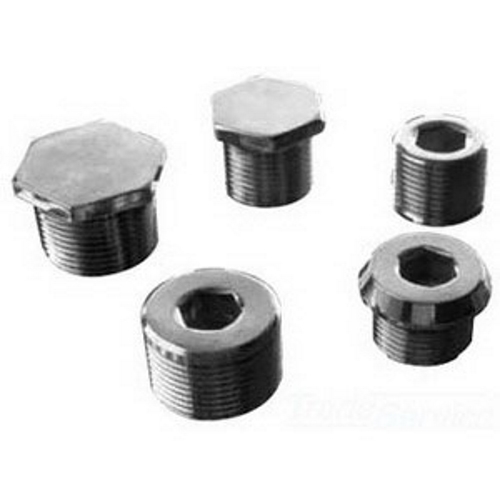

757DT15 Blanking Hexagon Head Cable Gland Stopper Plug, 1/2 in NPT Thread, Brass, Nickel Plated
- MFR:
- Appleton Electric
- MFR #:
- 757DT15
- UPC:
- 781381169127
- Item #:
- 1464982
757DT15 Blanking Hexagon Head Cable Gland Stopper Plug, 1/2 in NPT Thread, Brass, Nickel Plated
- MFR #:
- 757DT15
- UPC:
- 781381169127
- Item #:
- 1464982
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$30.47
each
Appleton 757 Series Hexagon Head Stopper Plug, Size: M40, Material: Brass, Enclosure: NEMA 4X, IP68, Finish: Nickel Plated, Connection: 1/2 IN MNPT, Enclosure: IP68, NEMA 4X, Standard: UL 886 (1203), UL File Number E60079-0, E60079-1, E60079-7, CSA C22.2 No. 30, CSA CAN/CSA E60079-0, CAN/CSA E60079-1, CAN/CSA E60079-7, CSA 113642, ATEX 001284U (Component), ATEX 001003 (Equipment), EN 60079-0, EN 60079-1, EN 60079-7, EN 61241-1, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 61241-1, CSA Certified For Ex e II, UL Listed For Class I, Groups A, B, C, D, Class II, Groups E, F, G, Class II, For Use To Close Any UnUsed Entries In Electrical Equipment
Manuals and Documentation
| Catalog Number | 757DT15 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | United Kingdom |
| Made in USA | No |
| Application | For Use To Close Any UnUsed Entries In Electrical Equipment |
| Connection | 1/2 IN MNPT |
| Enclosure | NEMA 4X, IP68 |
| Finish | Nickel Plated |
| Material | Brass |
| Special Features | In general care should be taken to ensure that a suitable entry thread sealing washer is also selected and installed, where applicable, to ensure that an effective seal is made at the entry, thereby maintaining the integrity of the enclosure or equipment IP rating; Catering to both Industrial and hazardous area applications the range covers a number of different design types which are supplied in both metallic and non-metallic forms; IP68 when fitted with a CMP O-Ring entry thread sealing washer |
| Standard | UL 886 (1203), UL File Number E60079-0, E60079-1, E60079-7, CSA C22.2 No. 30, CSA CAN/CSA E60079-0, CAN/CSA E60079-1, CAN/CSA E60079-7; CSA 113642, ATEX 001284U (Component), ATEX 001003 (Equipment), EN 60079-0; EN 60079-1, EN 60079-7, EN 61241-1, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 61241-1, CSA Certified For Ex e II, UL Listed For Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class II |
| UPC | 781381169127 |
| GTIN | 00781381169127 |
| Item Type | 757 Series Hexagon Head Stopper Plug |
| Size | M40 |
