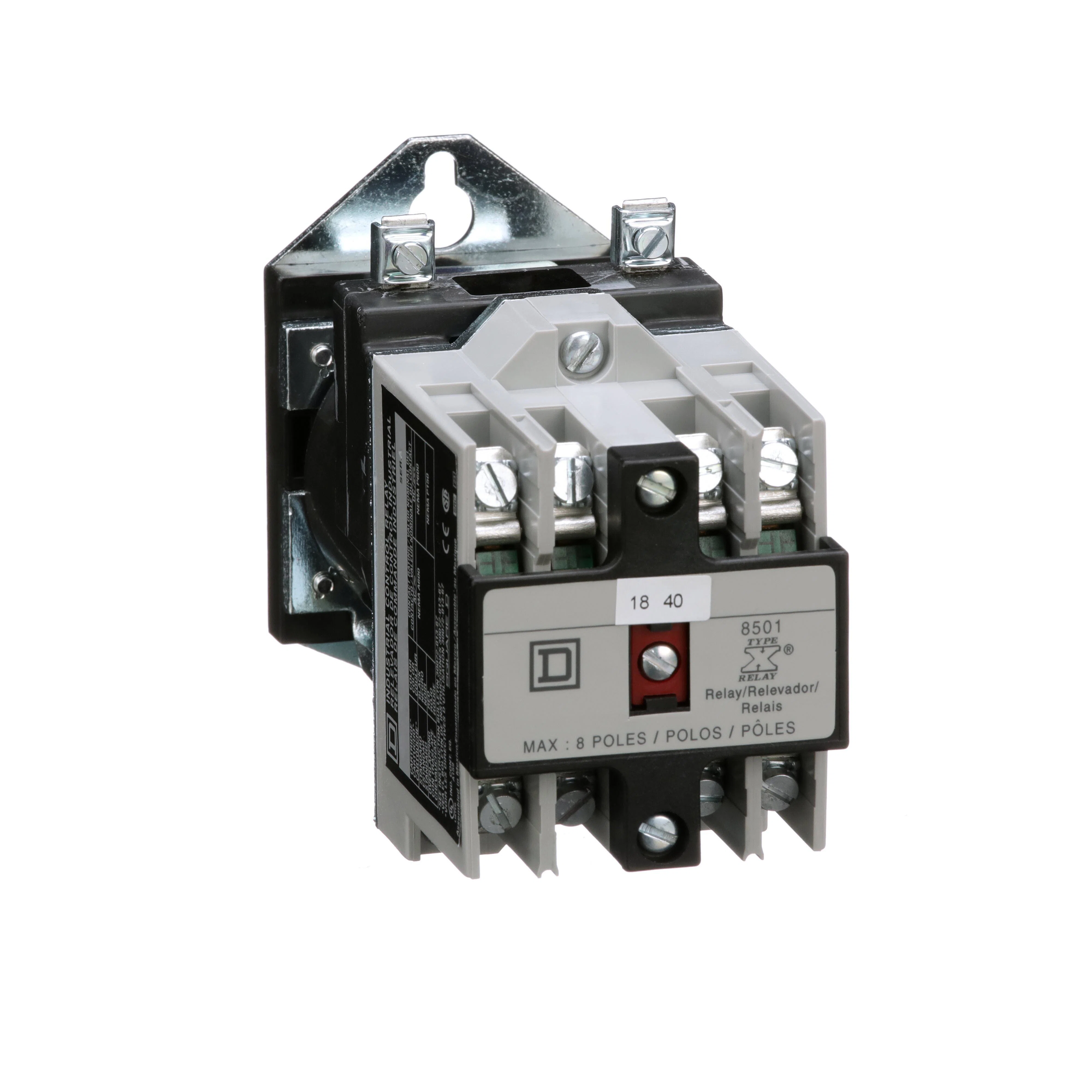

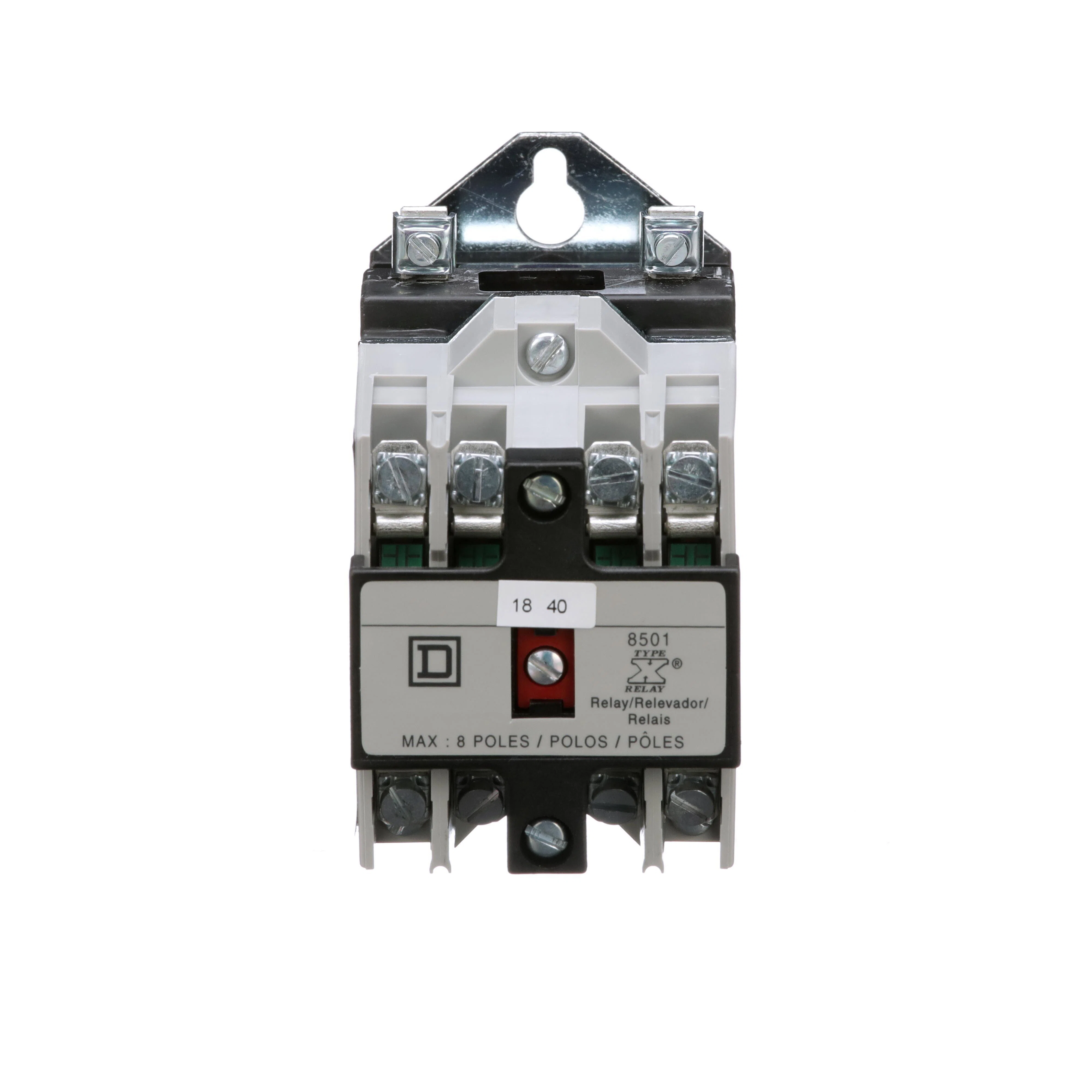

8501XDO40V56Y414 Type X Machine Tool NEMA Control Relay, 5/10 A, 4NO 4 Form A Contact, 48 V DC V Coil
- MFR:
- Schneider Electric
- MFR #:
- 8501XDO40V56Y414
- Item #:
- 1464923
8501XDO40V56Y414 Type X Machine Tool NEMA Control Relay, 5/10 A, 4NO 4 Form A Contact, 48 V DC V Coil
- MFR #:
- 8501XDO40V56Y414
- Item #:
- 1464923
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. RS miniature plug-in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliability and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiring which make wiring easier. Plug-in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL listed and CSA certified.
Manuals and Documentation
Features
- Replaceable, highly reliable pure DC power plant: no economizing resistors, overlapping contacts or dual wound coil
- Uses the same type XB adder decks and attachments as the AC version
- Offers all the features of the AC relay
- All contact poles are usable since no overlapping contacts are needed
- 5 A DC/10 A AC current rating
| Manufacturer Part Number | 8501XDO40V56Y414 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Country Of Origin | MX |
| Amperage Rating | 5/10 A |
| Dimensions | 2.23 in W x 5.17 in D x 3.56 in H |
| Mounting Type | Panel |
| Series | 8501X |
| Temperature Rating | -40 to 160 deg F |
| Type | Type X Machine Tool |
| Alternative Part Number | 14838638 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 18 months |
| Standards Approvals | Green Premium™ Listed | RoHS Compliant | REACH Compliant | UL File No. E78403 | CCN: NKCR | CSA File No. LR60905 Class 3211 03 | PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Coil Voltage | 48 V DC |
| Contact Form | 4NO 4 Form A |
| Power Rating | 18 |
| Terminal Type | Ring Tongue/Screw |
