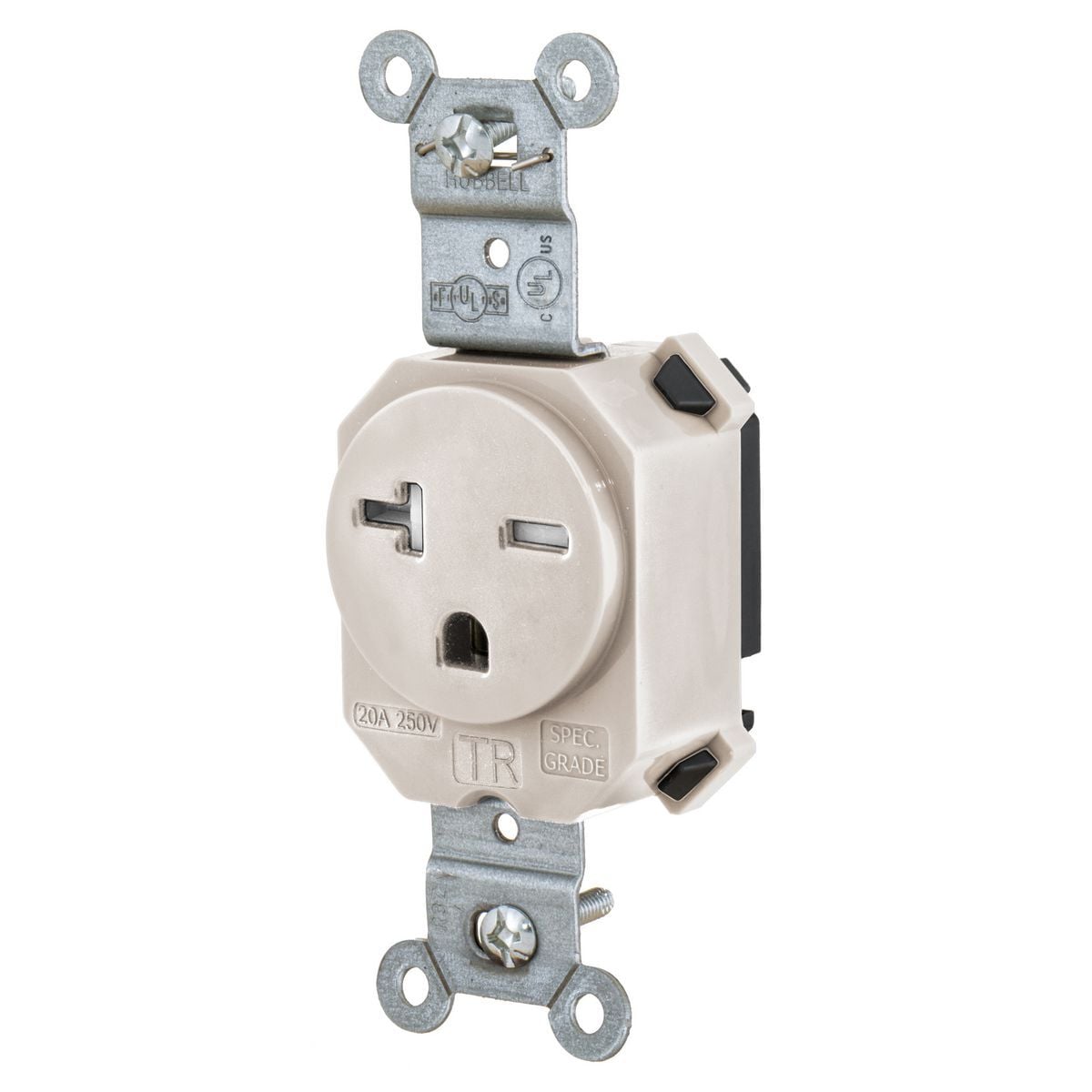

SNAP5461LATR Extra Heavy Duty Single Standard Tamper-Resistant Straight Blade Receptacle, 250 V, 20 A, 2 Poles, 3 Wires, Light Almond
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- SNAP5461LATR
- UPC:
- 783585531021
- Item #:
- 1464857
SNAP5461LATR Extra Heavy Duty Single Standard Tamper-Resistant Straight Blade Receptacle, 250 V, 20 A, 2 Poles, 3 Wires, Light Almond
- MFR #:
- SNAP5461LATR
- UPC:
- 783585531021
- Item #:
- 1464857
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
SNAPConnect Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnects modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnects modular design enables simple device change-out by maintenance personnel.
Manuals and Documentation
| Catalog Number | SNAP5461LATR |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Single Receptacle |
| Color | Light Almond |
| Connection | Connectorized |
| Material | Nylon |
| Mounting | Screw |
| NEMA Rating | 6 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Special Features | SNAPconnect®, Tamper Resistant |
| Standard | UL/CSA |
| UPC | 783585531021 |
| GTIN | 00783585531021 |
| Item Type | Tamper Resistant |
| Size | Standard Sized Product |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Temperature Rating | Maximum continuous 75 Degrees C; minimum -40 Degrees C (w/o impact) |
| Voltage Rating | 250 |
| Wattage | 2500 W |
| Wire Size | #12 AWG |
