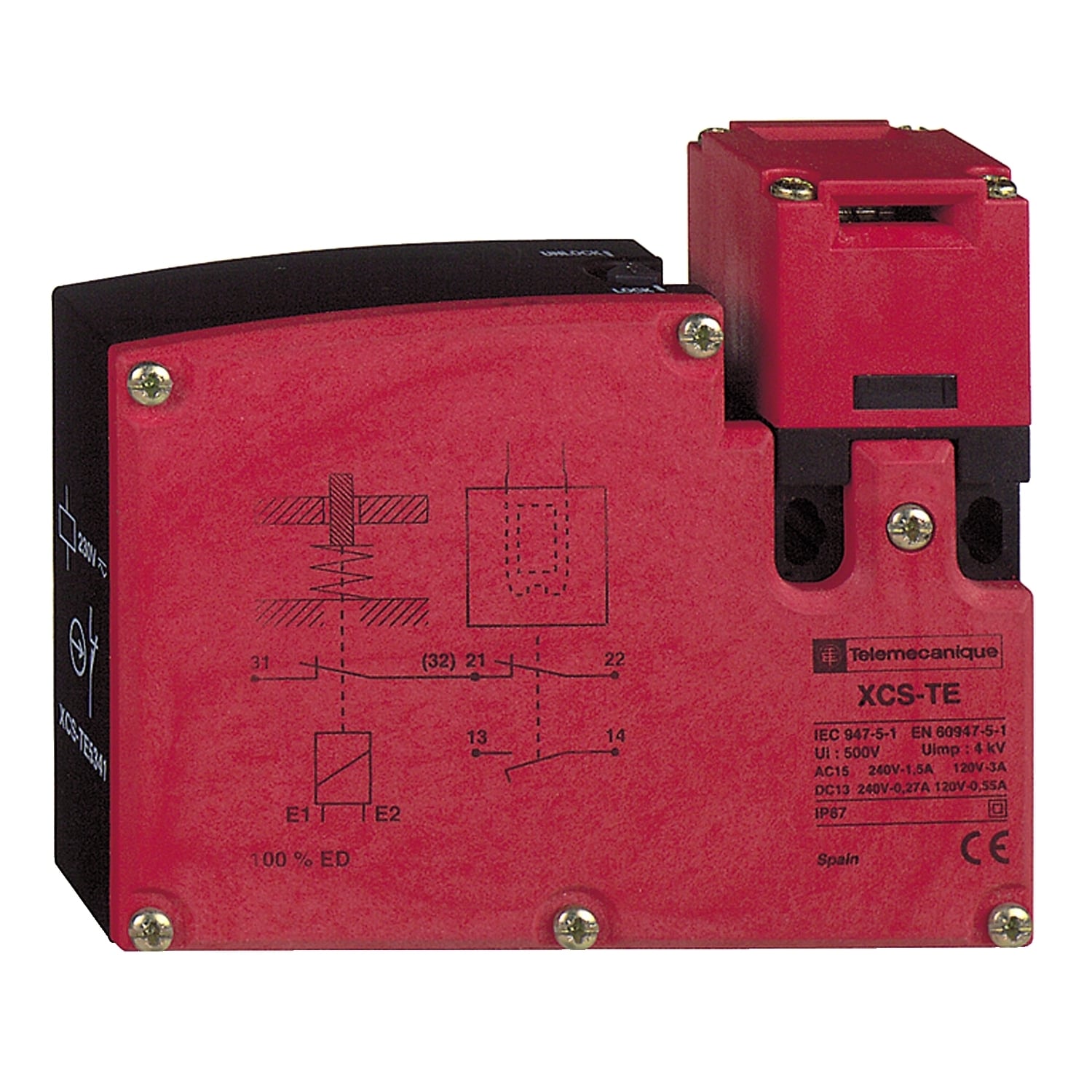

XCSTE7331 Preventa Rectangular Turret Head Safety Interlock Switch, 240 V AC/11 to 120 V DC, 6 A, 50/60 Hz, 7 W Power Rating, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCSTE7331
- Item #:
- 1463991
XCSTE7331 Preventa Rectangular Turret Head Safety Interlock Switch, 240 V AC/11 to 120 V DC, 6 A, 50/60 Hz, 7 W Power Rating, 2 Poles
- MFR #:
- XCSTE7331
- Item #:
- 1463991
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$406.08
each
plastic safety switch XCSTE - 2 NC - slow break - 1 entry tapped Pg 11 -120V
Manuals and Documentation
| Catalog Number | XCSTE7331 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Action | Slow-break, simultaneous |
| Amperage Rating | 6 |
| Application | KEY OPERATED TURRET HEAD |
| Connection | Terminal 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Contact Configuration | 2 NC |
| Insulation | Double insulated |
| Number of Poles | 2 |
| Operating Cycles | 10 CYC/MN FOR MAXIMUM DURABILITY |
| Special Features | Locking on de-energisation and unlocking on energisation of solenoid |
| Standard | 10 GN 11 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CSA-UL,EN/ISO 12100-EN 1088/ISO 14119-UL 508-EN/IEC 60204-1-CSA C22.2 NO 14-EN/IEC 60947-5-1,IP67 EN/IEC 60529 AND EN/IEC 60947-5-1,CLASS II EN/IEC 61140 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=860132&lang=en-us |
| GTIN | 03389110825190 |
| Item Type | Safety switch |
| Size | 1.30 |
| Operating Temperature | -25-60 A Degrees C |
| Voltage Rating | 120 V - 20...10 % |
