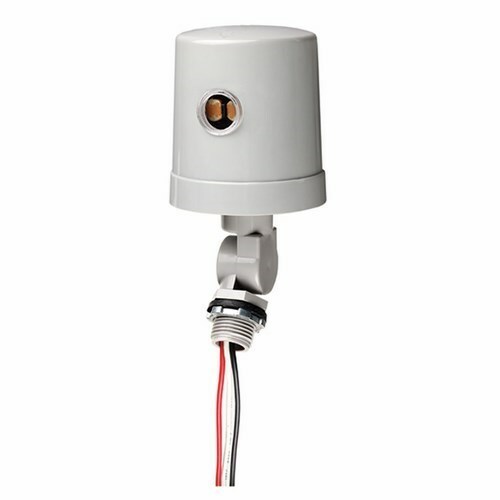

K4236C K4200 Stem and Swivel Mounting Photocontrol, 120 to 277 V AC, 1800 to 4150 W Tungsten, 1000 to 2300 VA Ballast, Box/Fixture Mount, Polycarbonate
- MFR:
- Intermatic
- MFR #:
- K4236C
- UPC:
- 078275029606
- Item #:
- 146176
K4236C K4200 Stem and Swivel Mounting Photocontrol, 120 to 277 V AC, 1800 to 4150 W Tungsten, 1000 to 2300 VA Ballast, Box/Fixture Mount, Polycarbonate
- MFR #:
- K4236C
- UPC:
- 078275029606
- Item #:
- 146176
Availability
| Location | Available Qty |
|---|---|
| Available | 1 ea |
$32.96
each
These photocontrols are provided with a swivel arm for easy and flexible installation to standard outdoor light fixtures or electrical boxes.
Manuals and Documentation
| Catalog Number | K4236C |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Dusk to Dawn Lighting Control |
| Connection | Color Coded Lead |
| Frequency Rating | 50/60 HZ |
| Mounting | Stem And Swivel Fixed Mount |
| Sensitivity | 1-5 FC ON, 3-15 FC OFF |
| Sensor | Thermal Type Photo Control (Cadmium Sulfide) |
| Special Features | Features: Cadmium Sulfide Photocell, Sonic-Welded Polycarbonate Housing, 6 IN Wire Leads |
| Standard | UL Recognized, CSA, Title CA 20 Listed |
| Supply Voltage | 120 - 277 VAC |
| UPC | 078275029606 |
| GTIN | 00078275029606 |
| Item Type | Thermal Type Photo Cell |
| Size | 3 DIAMETER X 6-1/4 HEIGHT IN, 7.6 DIAMETER X 15.9 HEIGHT CM |
| Operating Temperature | -40 to +158 DEG F -40 to +70 DEG C |
