Elastimold

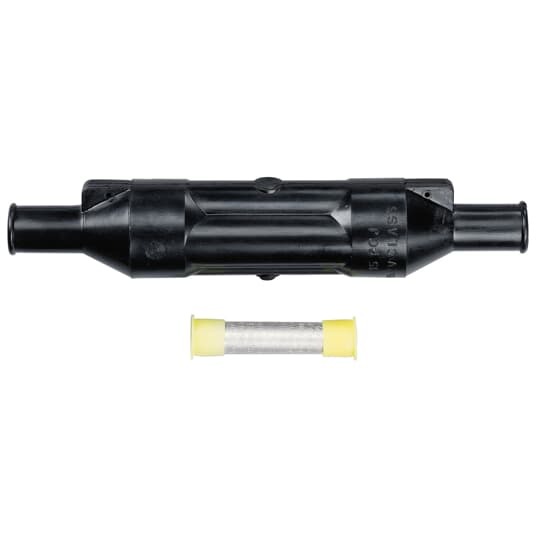

15PCJ1F2210 Elastimold Style 1 Power Cable Joint With Single Piece Housing, 15 kV, 3 AWG Stranded, 2 AWG Solid Conductor, EPDM Rubber

MFR:
ABB - Installation Products
MFR #:
15PCJ1F2210
UPC:
783786030125
Item #:
1460948

Availability

Location Available Qty
Available Available to Order
$337.42 each
Manuals and Documentation
Catalog Number 15PCJ1F2210
Manufacturer ABB - Installation Products
Brand Elastimold
Country of Origin United States
Made in USA Yes
Application For Direct Burial, Vault, Submersible and Other Severe Service Applications
Color Black
Conductor Range #3 STR AWG , #2 SOL AWG
Connection Compression
Insulation yes
Material EPDM Rubber
Number of Conductors 2
Special Features Power Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other servere service applications. Units have been designed and tested per IEEE Standard 404 to ensure system matched performance and ratings equal to the cable to which the splice will be installed. Power Cable Joints are available in two styles. Style 1 uses a single-piece housing that is sized to accommodate a specific range of cable - ideally suited to straight splicing of the same or similar cable. Style 2 designs incorporate a universal housing with separate cable adapters to allow transition splices of different types and sizes of cable
Standard IEEE Standard 404
UPC 783786030125
GTIN 00783786030125
Item Type Power Cable Joint
Size 14-3/8 inch long
Voltage Rating 15 kV
