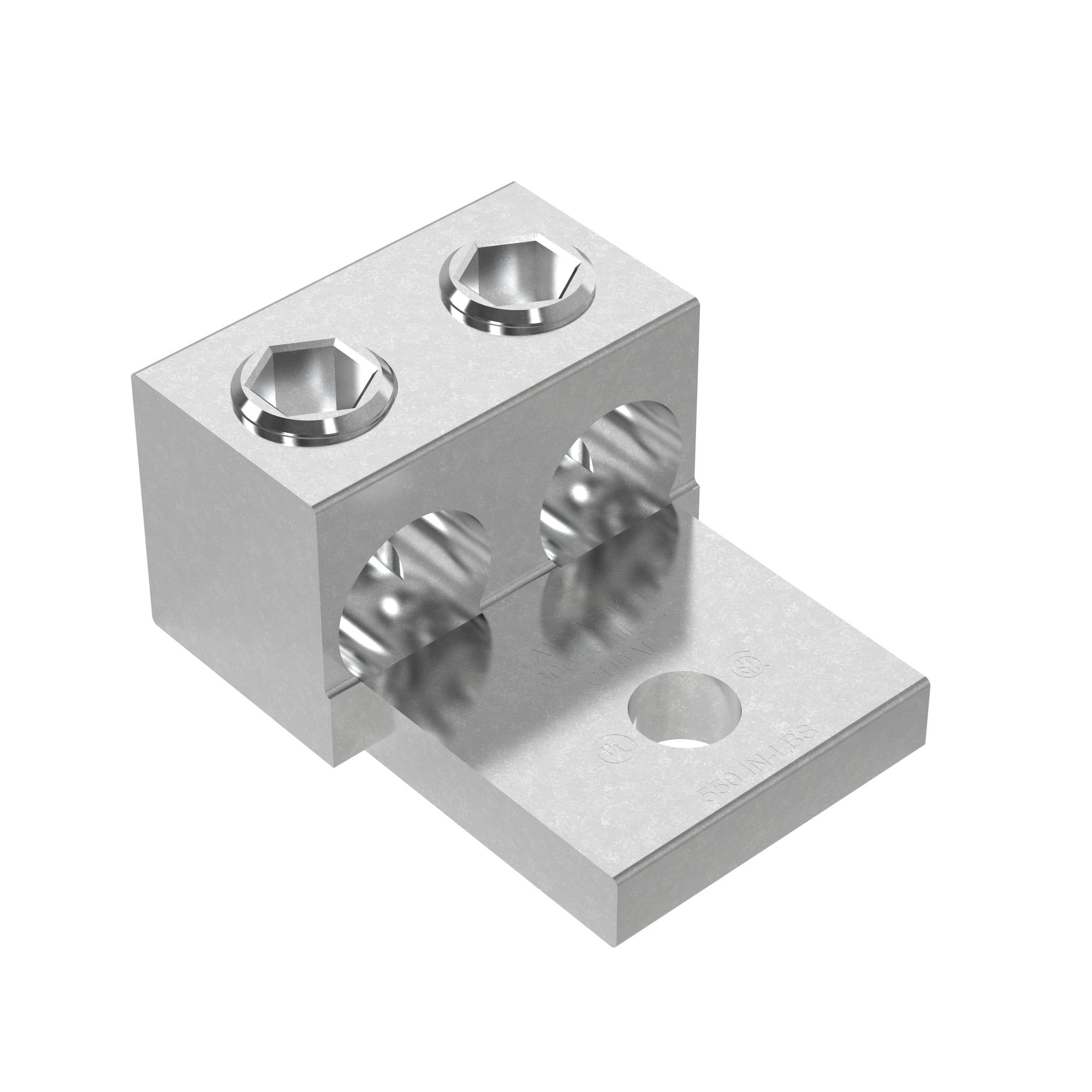

LAM2A600-12-6Y 2-Barrel Mechanical Lug, 2 AWG to 600 kcmil Aluminum/Stranded Copper Conductor, 1/2 in Stud, 1 Bolt Hole, Aluminum
- MFR:
- Panduit
- MFR #:
- LAM2A600-12-6Y
- UPC:
- 074983592708
- Item #:
- 146052
LAM2A600-12-6Y 2-Barrel Mechanical Lug, 2 AWG to 600 kcmil Aluminum/Stranded Copper Conductor, 1/2 in Stud, 1 Bolt Hole, Aluminum
- MFR #:
- LAM2A600-12-6Y
- UPC:
- 074983592708
- Item #:
- 146052
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$50.7867
each
The LAM2A600-12-6Y Tin-Plated Aluminum Mechanical Lug, one-hole, two barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and Lug. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.
Manuals and Documentation
| Catalog Number | LAM2A600-12-6Y |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Stranded Aluminum or Copper Code Conductor |
| Material | Tin-Plated Aluminum |
| Number of Holes | 1 |
| Standard | cULus Listed for use up to 600V & Temperature Rated to 90 Degrees C |
| UPC | 074983592708 |
| GTIN | 00074983592708 |
| Item Type | Mechanical Lug |
| Stud Size | 1/2 IN |
| Voltage Rating | 600 |
