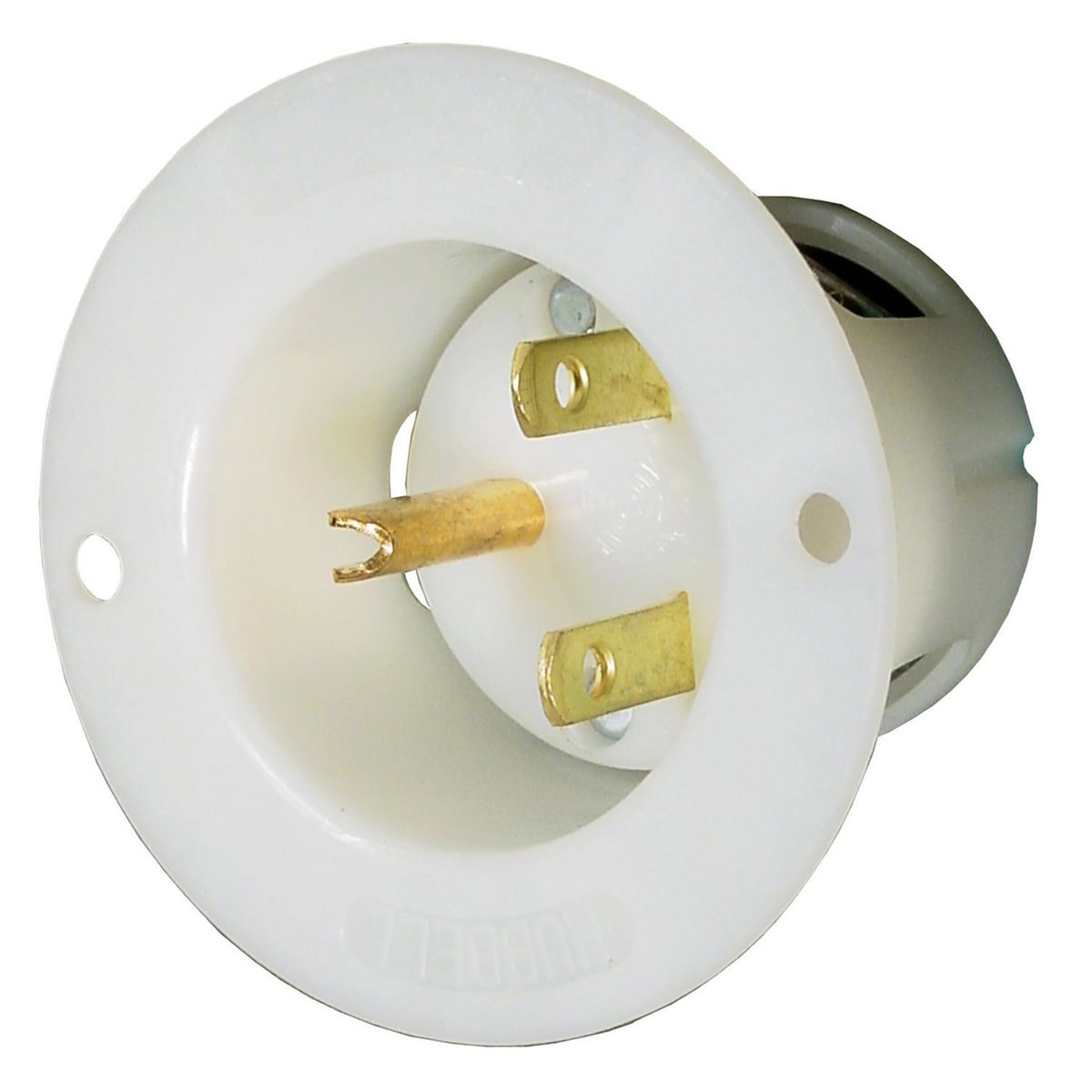

HBL5678C 1-Phase Male Standard Screw Mount Straight Blade Flanged Inlet, 250 V AC, 15 A, 2 Poles, 3 Wires, White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL5678C
- UPC:
- 783585175959
- Item #:
- 145818
HBL5678C 1-Phase Male Standard Screw Mount Straight Blade Flanged Inlet, 250 V AC, 15 A, 2 Poles, 3 Wires, White
- MFR #:
- HBL5678C
- UPC:
- 783585175959
- Item #:
- 145818
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$36.20
each
Manuals and Documentation
| Catalog Number | HBL5678C |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Puerto Rico |
| Made in USA | No |
| Amperage Rating | 15 |
| Application | Extra Heavy Duty Industrial |
| Color | White |
| Connection | Screw Terminals |
| Insulation | Insulated Body |
| Material | Nylon |
| Mounting | Screw |
| NEMA Rating | 6 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Standard Product |
| Standard | Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186 |
| UPC | 783585175959 |
| GTIN | 00783585175959 |
| Item Type | Flanged Inlet |
| Size | 1.72 in x 2.56 in x 2.56 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 250 |
| Wattage | 3,750 W |
| Wire Size | #18 AWG to #10 AWG |
