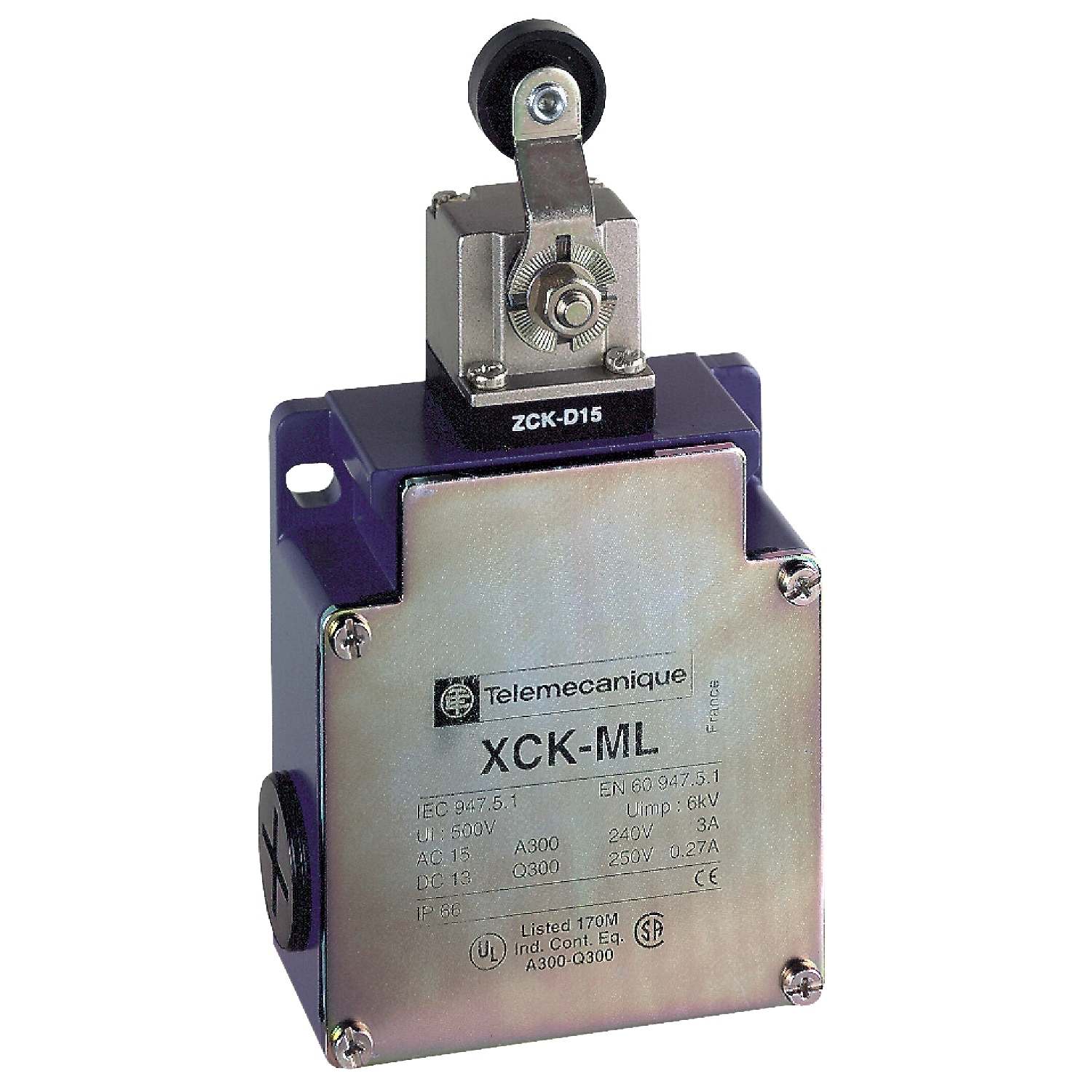

XCKML115 OsiSense Compact Fixed General Duty Limit Switch, 240 V AC, 10 A, Spring Return Roller Lever Actuator, 2NO-2NC Contact, 4 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKML115
- UPC:
- 785901161271
- Item #:
- 145517
XCKML115 OsiSense Compact Fixed General Duty Limit Switch, 240 V AC, 10 A, Spring Return Roller Lever Actuator, 2NO-2NC Contact, 4 Poles
- MFR #:
- XCKML115
- UPC:
- 785901161271
- Item #:
- 145517
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$324.66
each
limit switch XCKML - thermoplastic roller lever - 2x(1NC+1NO) - snap - Pg13
Manuals and Documentation
| Catalog Number | XCKML115 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Lateral approach, 2 directions;Snap action;By 30 Degrees cam |
| Actuator | Spring return roller lever thermoplastic |
| Application | CLASSIC |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 2 x (1 NC + 1 NO) |
| Mounting | By The Body |
| Number of Poles | 4 |
| Operating Cycles | 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,METAL |
| Standard | 25 GN 10-500 HZ)EN/IEC 60068-2-6,50 GN 11 MS EN/IEC 60068-2-27,IK05 EN 50102,IP66 EN/IEC 60529,UL 508-CSA C22.2 NO 14-EN 60947-5-1-IEC 60204-1-EN 60204-1-IEC 60947-5-1,UL-CSA,CLASS I IEC 61140-CLASS I NF C 20-030 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856824&lang=en-us |
| UPC | 785901161271 |
| GTIN | 03389110161274 |
| Item Type | Limit switch |
| Size | 36 MM,77 MM,81-81 MM |
| Operating Temperature | -25-70 A Degrees C |
