5601 QT-II 5600 Cold Shrink Termination Kit, 1 Pieces, For Use With Concentric Neutral and Jacketed Concentric Neutral Cable, Silicone Rubber, Black/White
- MFR:
- 3M
- MFR #:
- 5601
- Item #:
- 1454865
5601 QT-II 5600 Cold Shrink Termination Kit, 1 Pieces, For Use With Concentric Neutral and Jacketed Concentric Neutral Cable, Silicone Rubber, Black/White
- MFR #:
- 5601
- Item #:
- 1454865
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$211.09
each

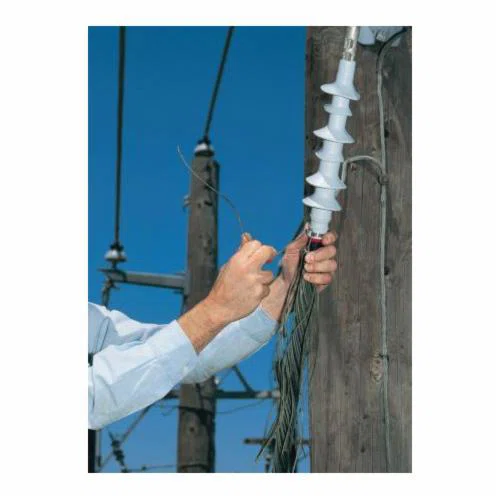

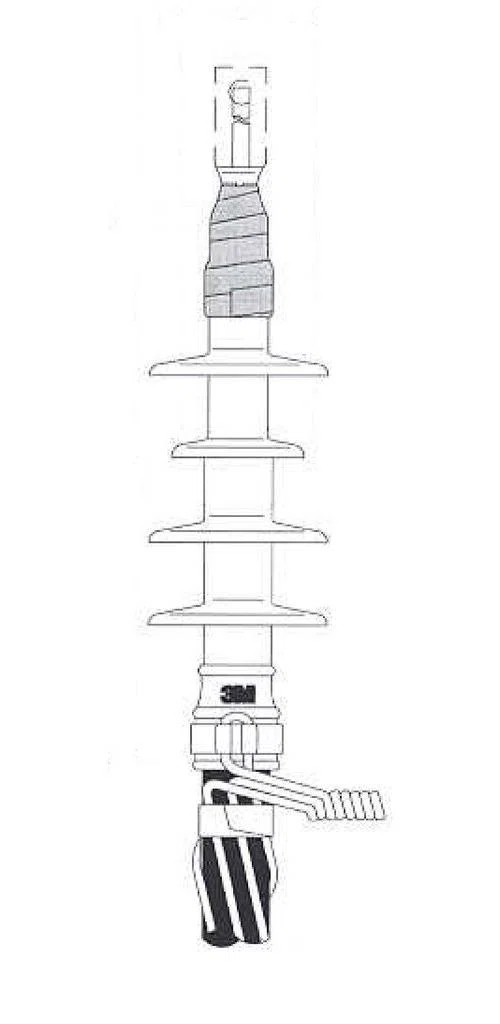

3M™ cold shrink QT II 5600 and 5680 series termination kit includes a 4-skirt, 1 piece termination. It ensures a pliable, tight seal for concentric neutral cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 15 kV.
Manuals and Documentation
Features
- Provides a void-free seal to concentric neutral cables
- High dielectric constant material regulates the distribution of electric field stress
- Silicone rubber insulation is track resistance and hydrophobic
- Conductor size by voltage (5 kV, 100%) 3/0 AWG, to 500 kcmil, (5 kV, 133%) 2/0 AWG, to 500 kcmil, (8 kV, 100%) 2/0 AWG, to 500 kcmil, (8 kV, 133%) 1/0 AWG, to 350 kcmil, (15 kV) 2 to 4/0 AWG
- 1 piece cold shrink termination
| Manufacturer Part Number | 5601 |
| Brand | 3M™ |
| Manufacturer | 3M |
| Country Of Origin | US |
| Color | Black/White |
| Material | Silicone Rubber |
| Number Of Pieces | 1 |
| Series | QT-II 5600 |
| Specifications | 1-Terminal, 5 to 15 kV Voltage, 2 AWG to 500 kcmil Conductor, 110 kV BIL Rated, 0.637 to 1.12 in OD Cable Insulation, 8-1/2 in L Max Installed |
| Suitable For Use With | Concentric Neutral and Jacketed Concentric Neutral Cable |
| Type | Cold Shrink |
| Manufacturer Item Status | Discontinued |
| Country | USA |
| Standards Approvals | IEEE 48 |
| Application | Outdoor and Weather Exposed Applications |
| Includes | 1-Piece 4-Skirt Termination |
