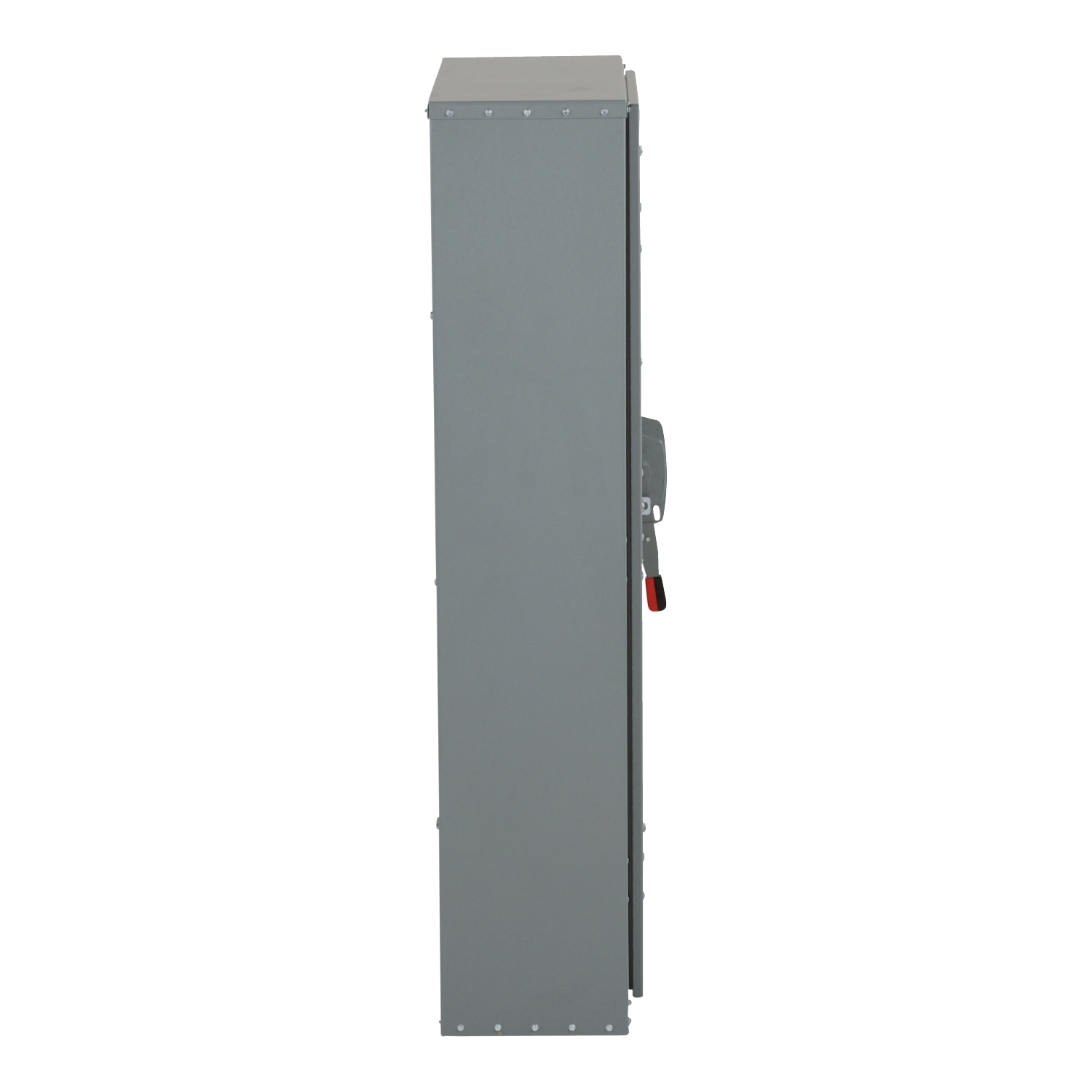

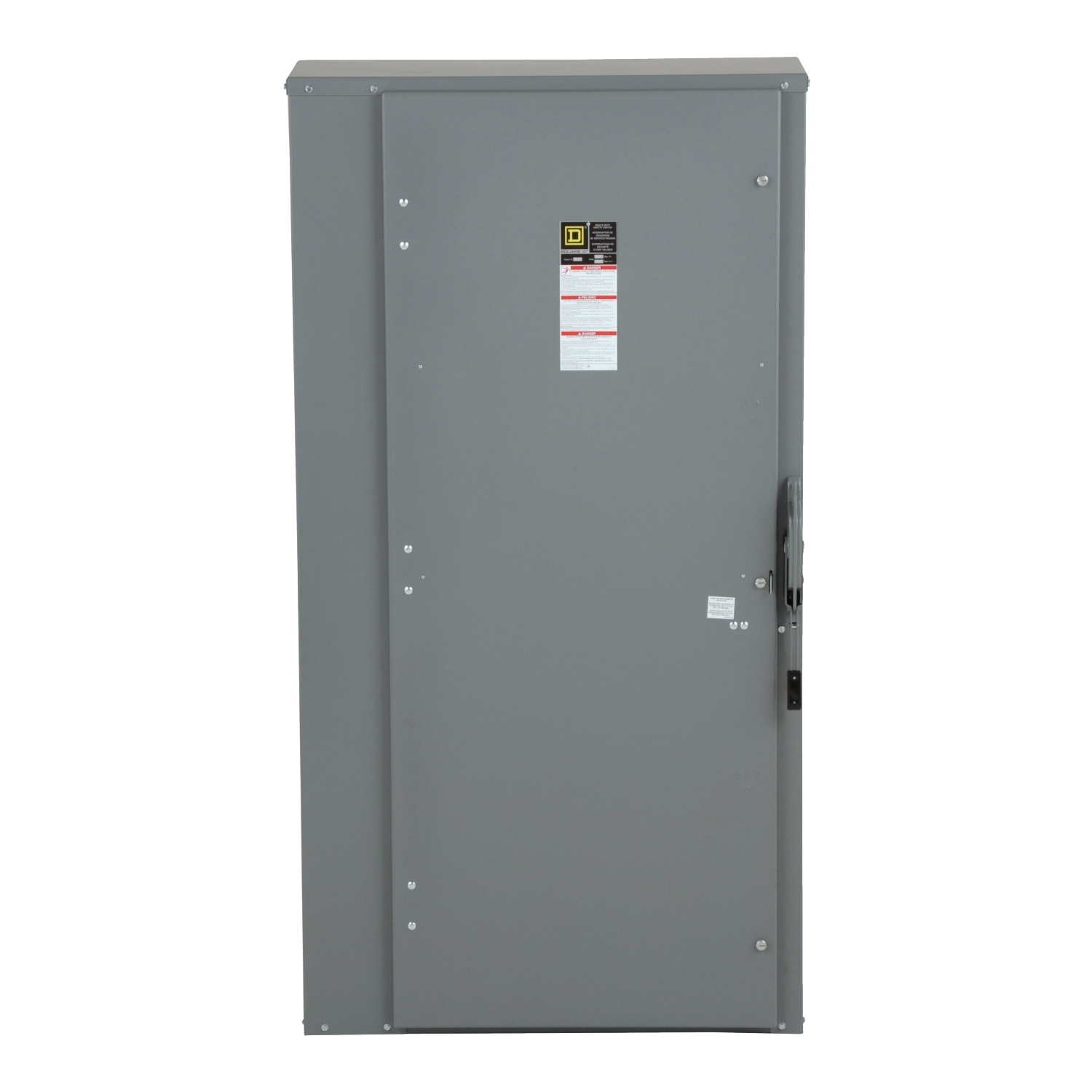

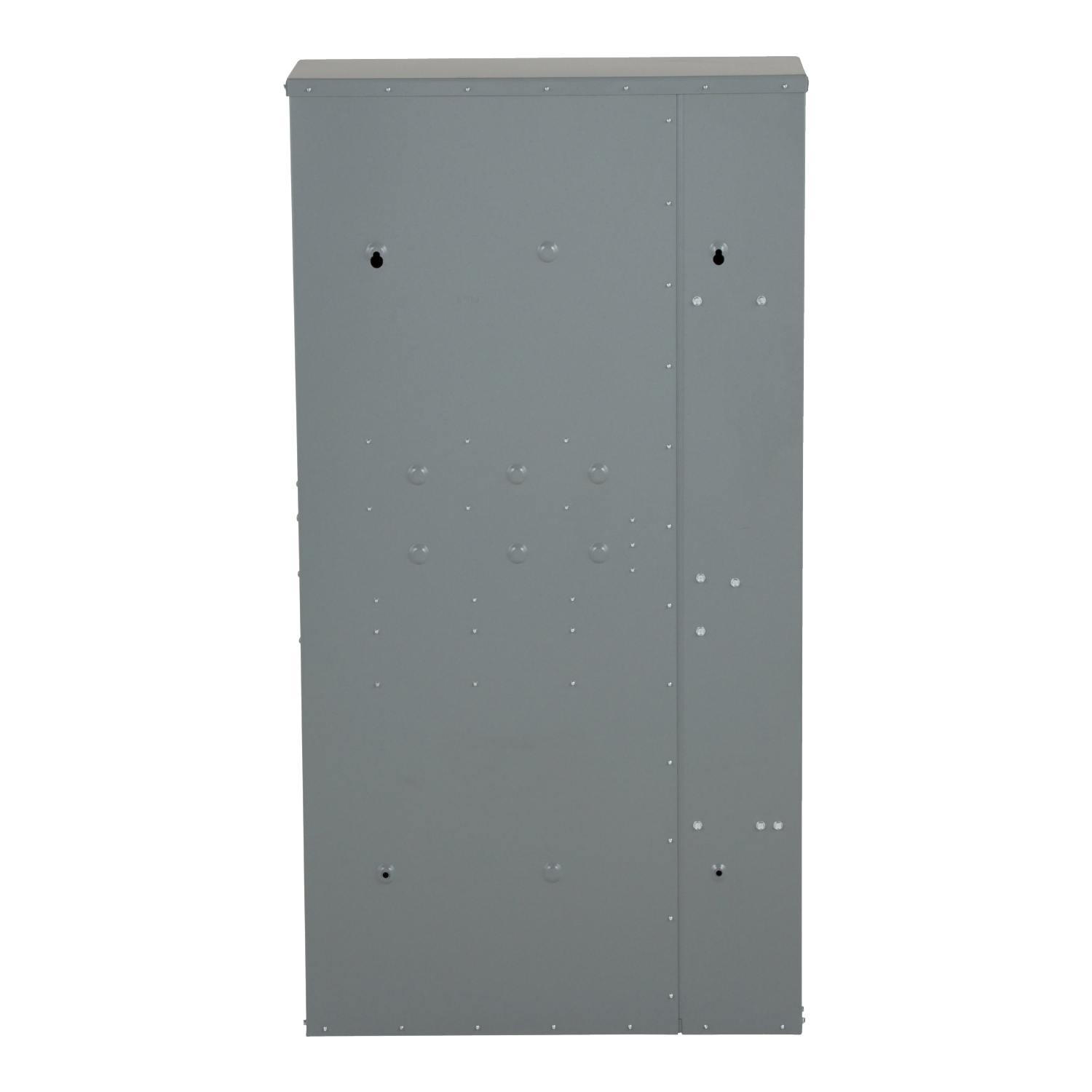

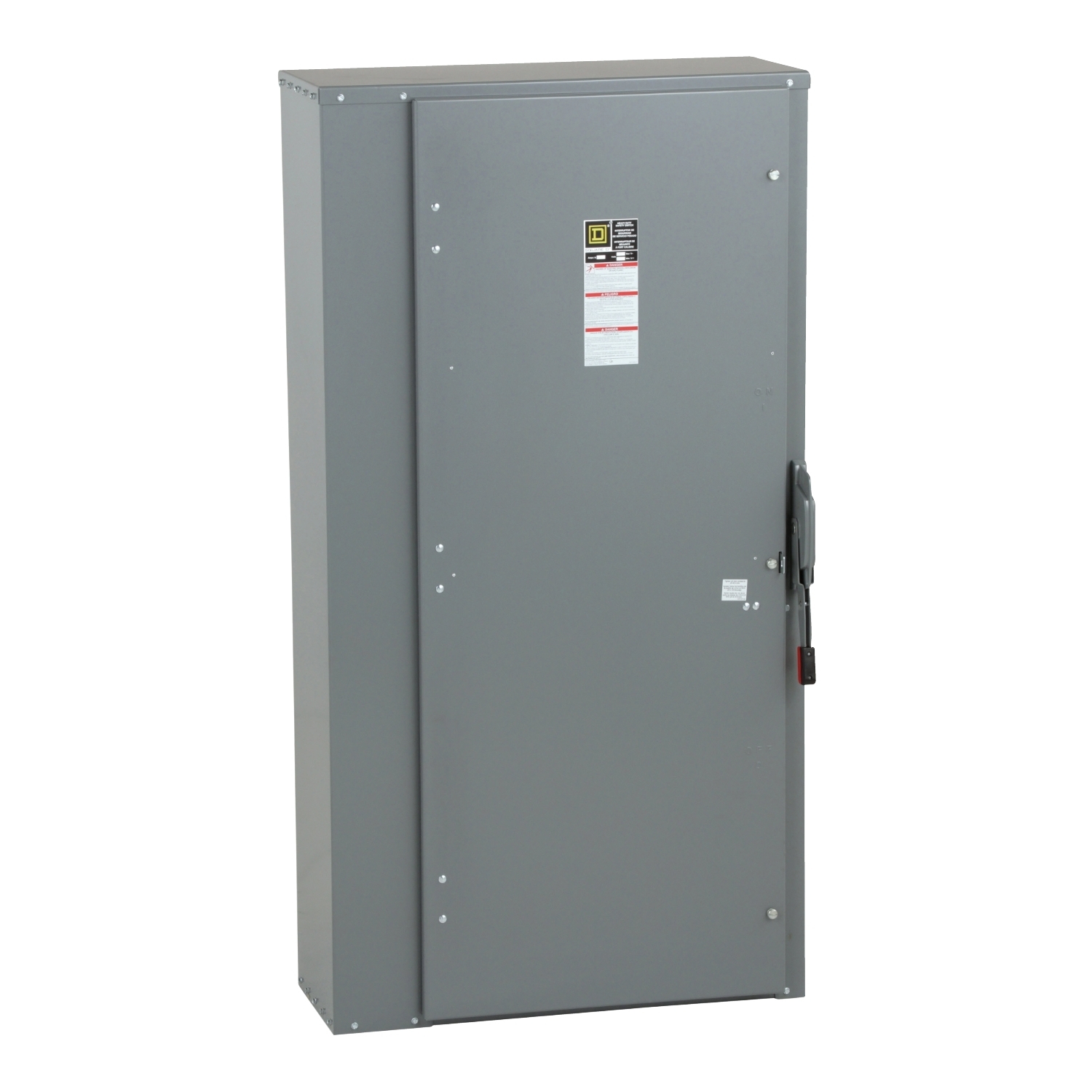

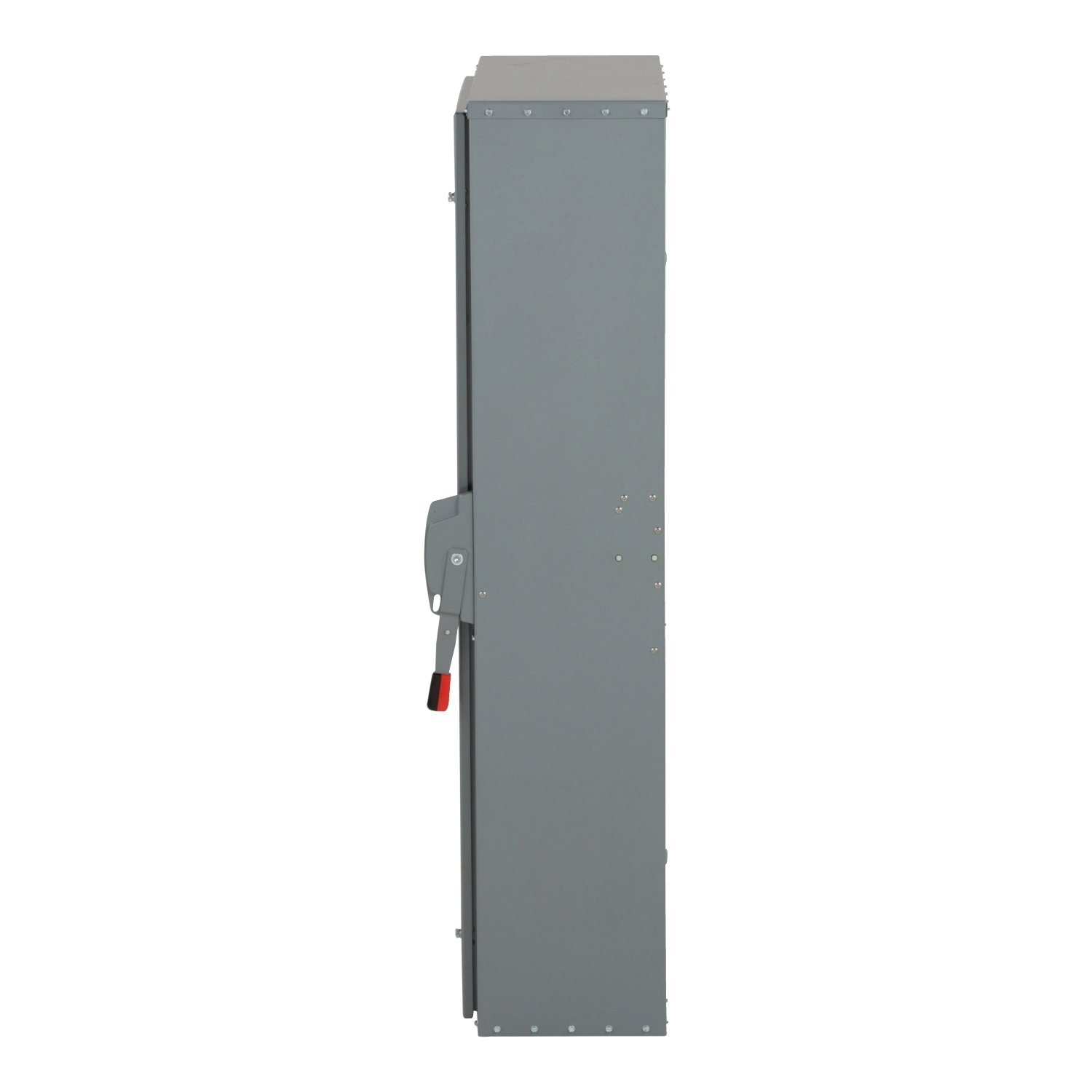

H368 E4 Fusible General Purpose Heavy Duty Safety Switch, 600 V AC/DC, 1200 A, 50 hp, 500 hp, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- H368
- UPC:
- 785901195467
- Item #:
- 14536
H368 E4 Fusible General Purpose Heavy Duty Safety Switch, 600 V AC/DC, 1200 A, 50 hp, 500 hp, 3 Poles
- MFR #:
- H368
- UPC:
- 785901195467
- Item #:
- 14536
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
The Square D by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. Heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 1200A with voltage of 600VAC and 600VDC. This switch is rated at 200hp for 1 phase and 500hp for 3 phase with standard fuses. For time delay fuses, this switch is also rated at 250hp for 1 phase and 500hp for 3 phase. For 600VDC, it also is rated at 50hp. This unit is in a Type 1 enclosure. It is UL listed with the file E2875.
Manuals and Documentation
| Catalog Number | H368 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Fuse Type | L |
| Phase | 3 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364801&lang=en-us |
| UPC | 785901195467 |
| GTIN | 00785901195467 |
| Width | 36.62 |
| Width UOM | Inch |
| Height | 69.13 |
| Height UOM | Inch |
| Depth | 17.75 IN |
