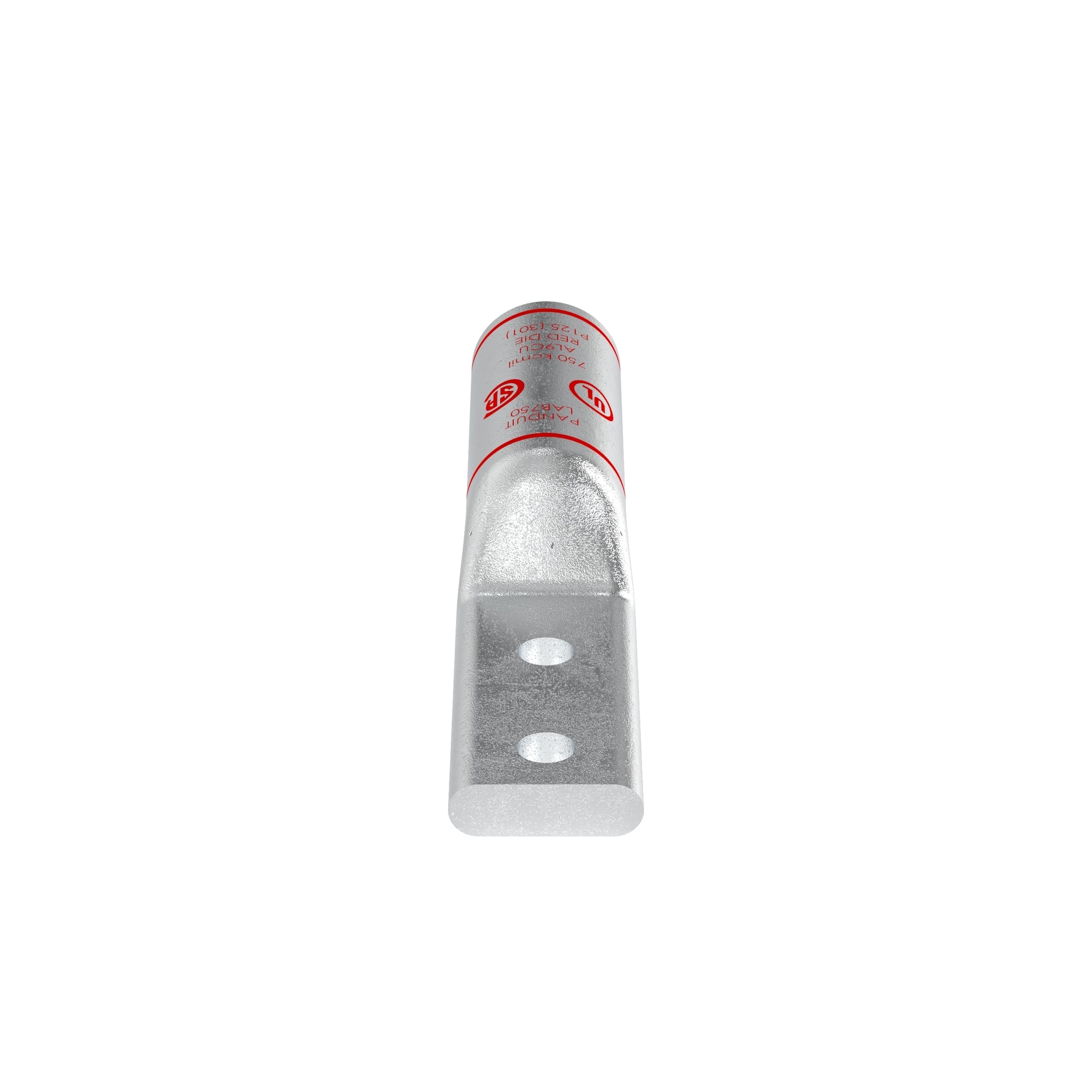

LAB750-12-24R LAB 2-Hole Lugs, 750 kcmil Conductor Aluminum/Copper Conductor, Die Code: P125, 0.53 in Stud
- MFR:
- Panduit
- MFR #:
- LAB750-12-24R
- UPC:
- 613056858077
- Item #:
- 1452060
LAB750-12-24R LAB 2-Hole Lugs, 750 kcmil Conductor Aluminum/Copper Conductor, Die Code: P125, 0.53 in Stud
- MFR #:
- LAB750-12-24R
- UPC:
- 613056858077
- Item #:
- 1452060
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$105.8857
each
The LAB750-12-24R Aluminum Compression Connector Lug, two hole, is manufactured from high conductivity thick wall aluminum with an enclosed barrel for harsh environments. The color-coded barrels are marked with Panduit and specified competitor die index numbers for proper crimp die selection. Factory pre-filled with joint compound and tin-plated to inhibit corrosion. cULus listed up to 35kV and temperature rated to 90C.
Manuals and Documentation
| Catalog Number | LAB750-12-24R |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Colombia |
| Made in USA | No |
| Color | Red |
| Standard | UL listed and CSA certified |
| UPC | 613056858077 |
| GTIN | 00613056858077 |
| Item Type | Compression Lug |
| Stud Size | 0.53 IN |
