Hubbell Wiring Device-Kellems

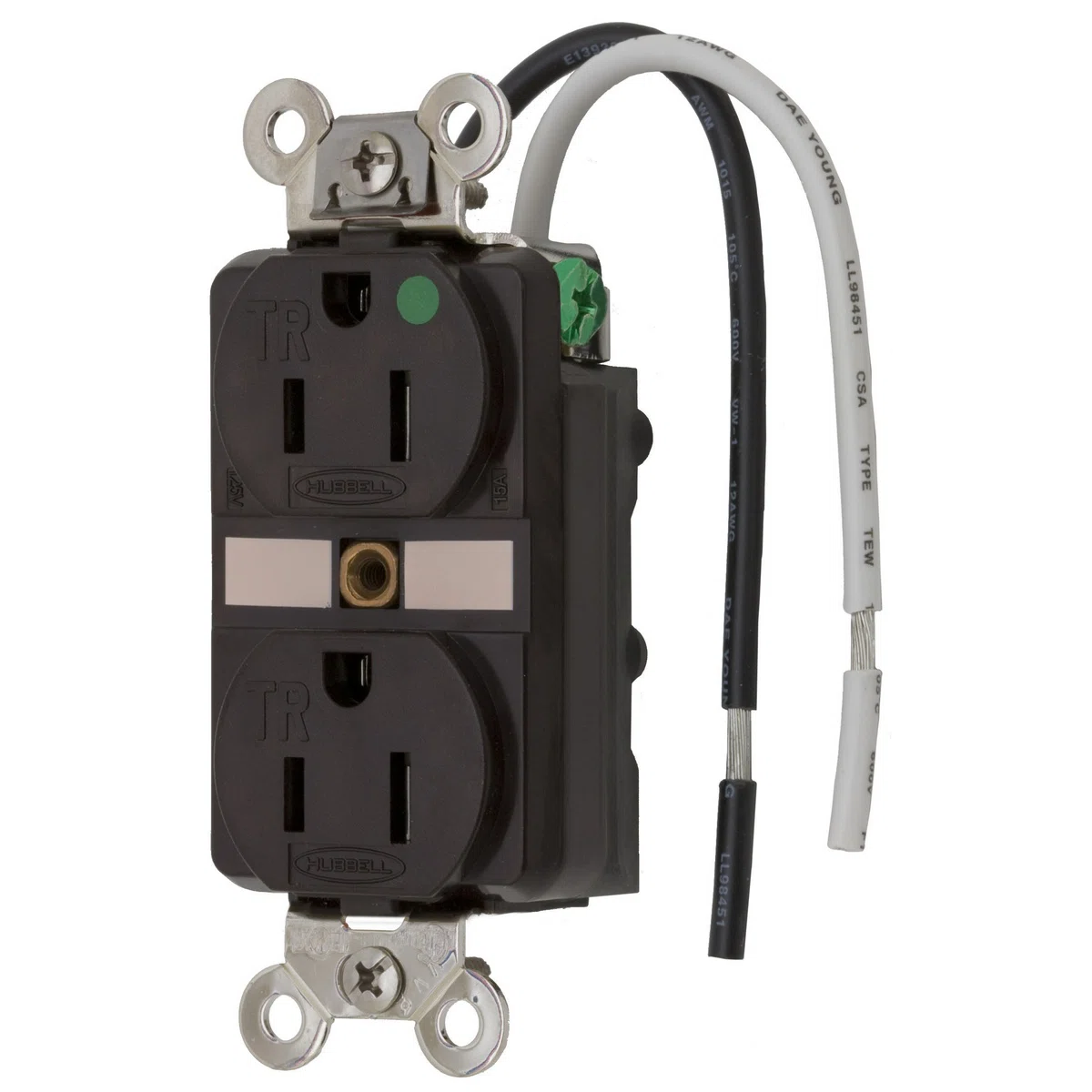

HBL8200SGA 1-Phase Duplex Extra Heavy Duty Standard Tamper-Resistant Traditional Screw Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Brown

MFR:
Hubbell
MFR #:
HBL8200SGA
UPC:
783585152226
Item #:
144996

Availability

Location Available Qty
Available Available to Order
$67.44 each

To qualify for the Hospital Grade designation and use of the associated green dot symbol, UL requires that the manufacturer design its devices to perform to specific levels. These levels form an established baseline below which no manufacturer can fall and still carry a green dot. Hubbell® sets their standards high. Each product is built to withstand the severe conditions of abuse that are unique to the hospital environment. Hubbell® receptacles have exclusive design features that set them apart from the competition.

Manuals and Documentation

Features

  • One-piece nickel-plated brass ground strap
  • Integral wire leads for fast installation and no exposed live parts
  • Unique tamper-resistant contact mechanism prevents injury
  • I.D. marking surface helps in quick circuit identification
Manufacturer Part Number HBL8200SGA
Brand Hubbell Wiring Device-Kellems
Manufacturer Hubbell
UPC 783585152226
EAN 0783585152226
Country Of Origin CN
Amperage Rating 15 A
Color Brown
Dimensions 3.29 x 1.65 x 1.27 in
Enclosure IP20
Horsepower 1/2 hp
Material Thermoplastic
Temperature Rating -40 to 75 deg C
Type 1-Phase Duplex Extra Heavy Duty Standard Tamper-Resistant Traditional Screw Mount
Voltage Rating 125 V AC
Alternative Part Number 8908257 | 11828055
Manufacturer Item Status Active
Country USA/Canada
Warranty Limited
Standards Approvals UL 498 File No. E2186 | CSA C22.2 No. 42/285 | Federal Specification WC596 | NEMA WD1/WD5
Application Home and Commercial Applications
Grade Hospital
Nema Rating 5-15R
Number Of Poles 2
Number Of Wires 3
Terminal Type Back and Side Wire/Screw
