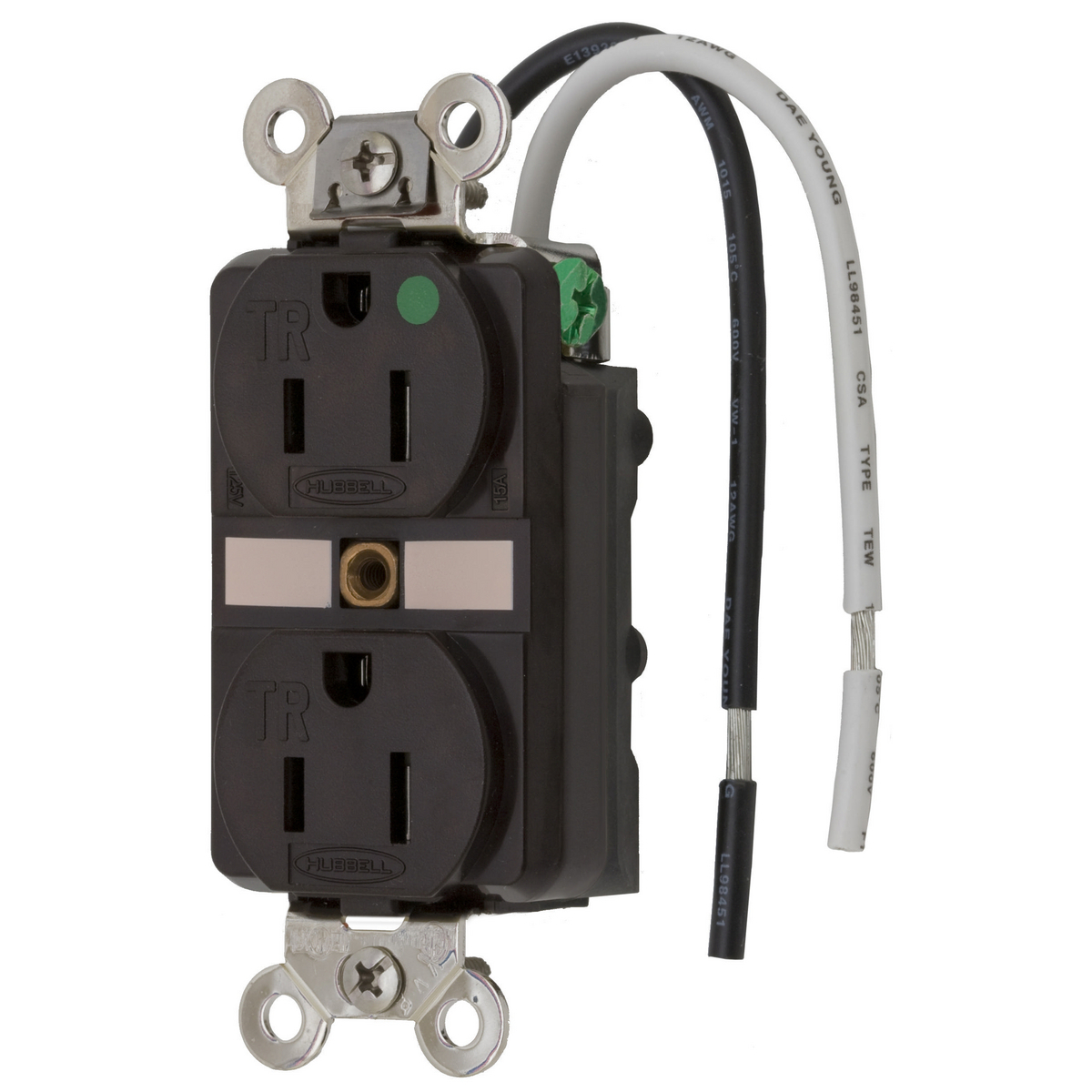

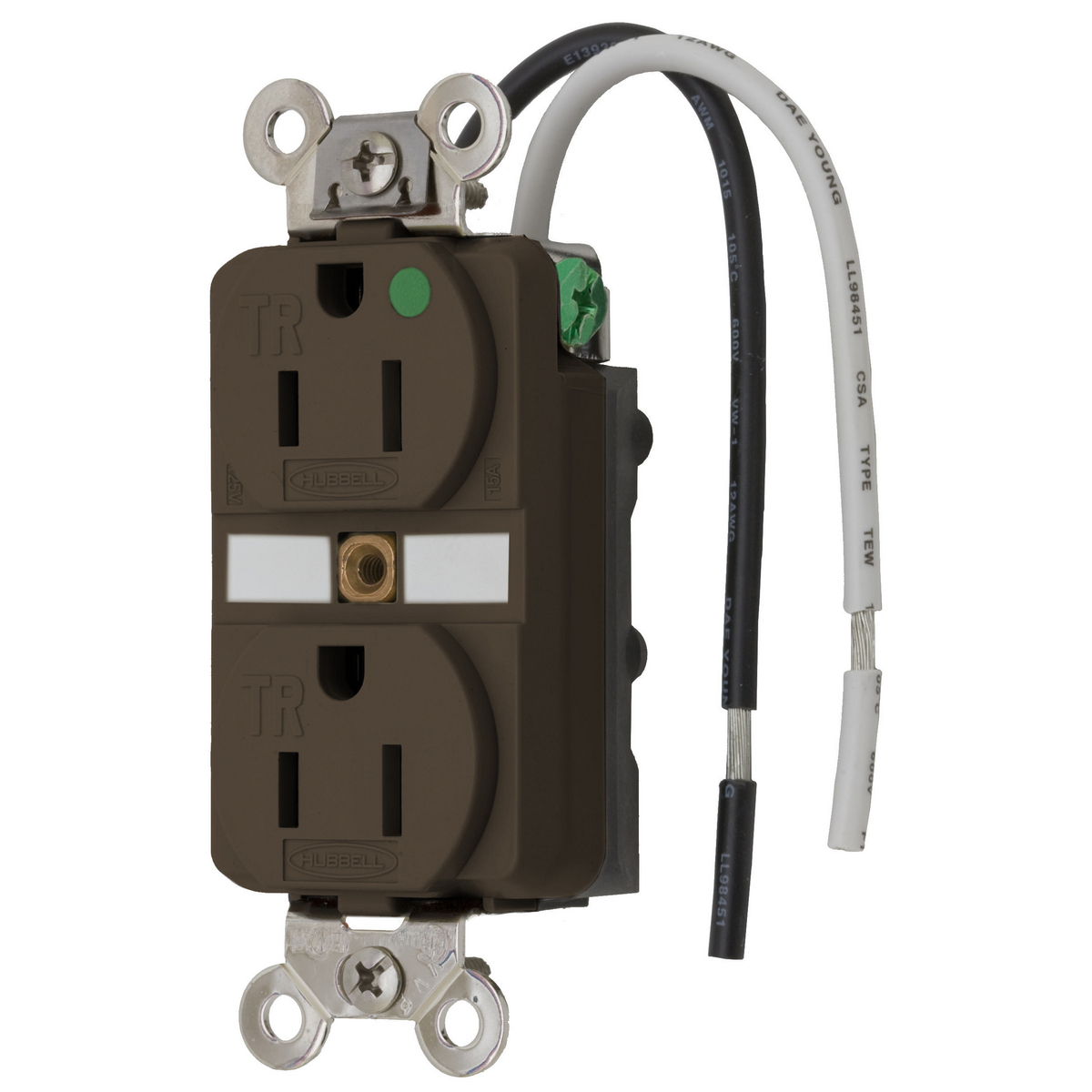

HBL8200SGA 1-Phase Duplex Extra Heavy Duty Standard Tamper-Resistant Traditional Screw Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Brown

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL8200SGA
UPC:
783585152226
Item #:
144996

Availability

Location Available Qty
Available Available to Order

HBL Extra Heavy Duty Max Hospital Grade Devices - UL requirements for Hospital Grade devices is more stringent than those for standard devices. Hubbell receptacles are designed to meet and exceed the standards with Exclusive nickel-plated bypass contact design increases contact pressure, lowering the operating temperature; Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas; Impact resistant deep face design prevents breakage. Because of these features and others, the benefit is performance, reliability and value for any health care facility.

Manuals and Documentation
Catalog Number HBL8200SGA
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 15
Application Extra Heavy Duty Hospital Grade
Color Brown
Connection Back and Side Wired Screw Terminals
Material Thermoplastic
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Phase 1
Special Features Tamper Resistant
Standard CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
UPC 783585152226
GTIN 00783585152226
Item Type Receptacle
Size 3.29 in x 1.65 in x 1.27 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 125
Wattage 1,875 W
Wire Size #12 AWG to #10 AWG
