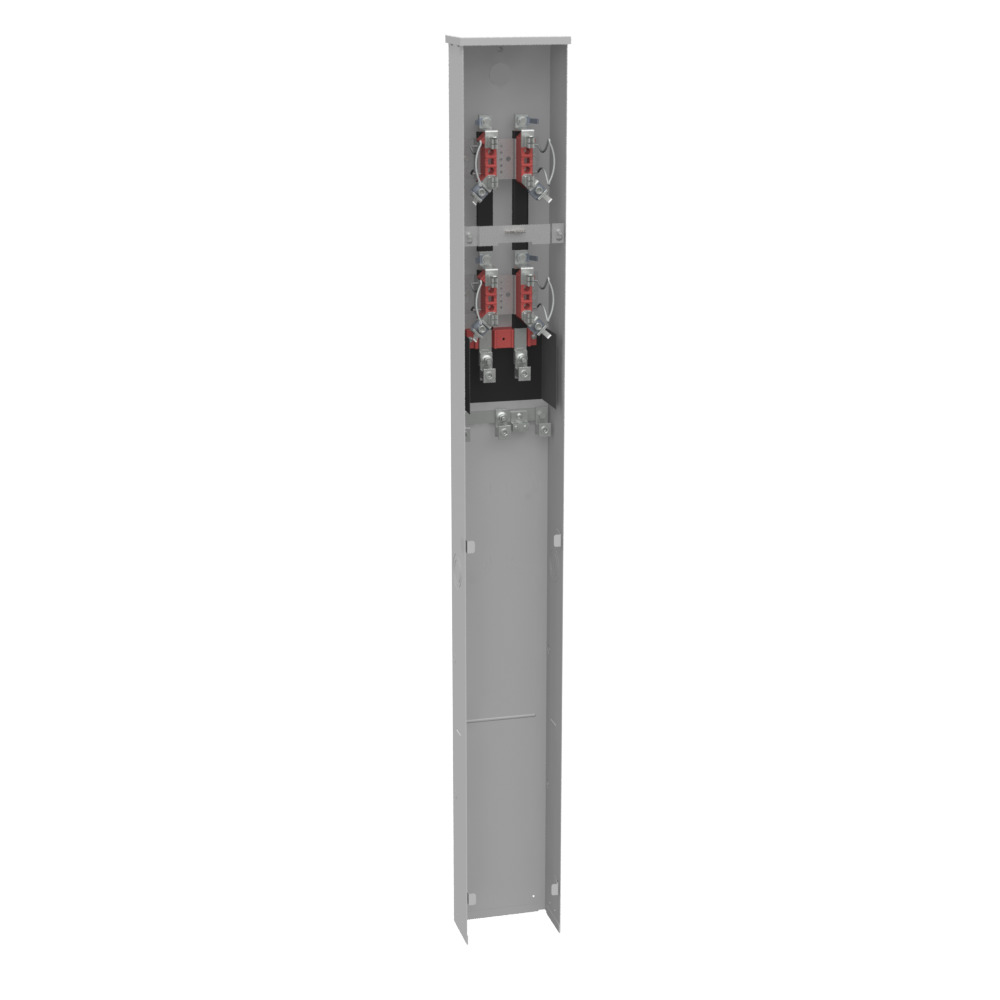

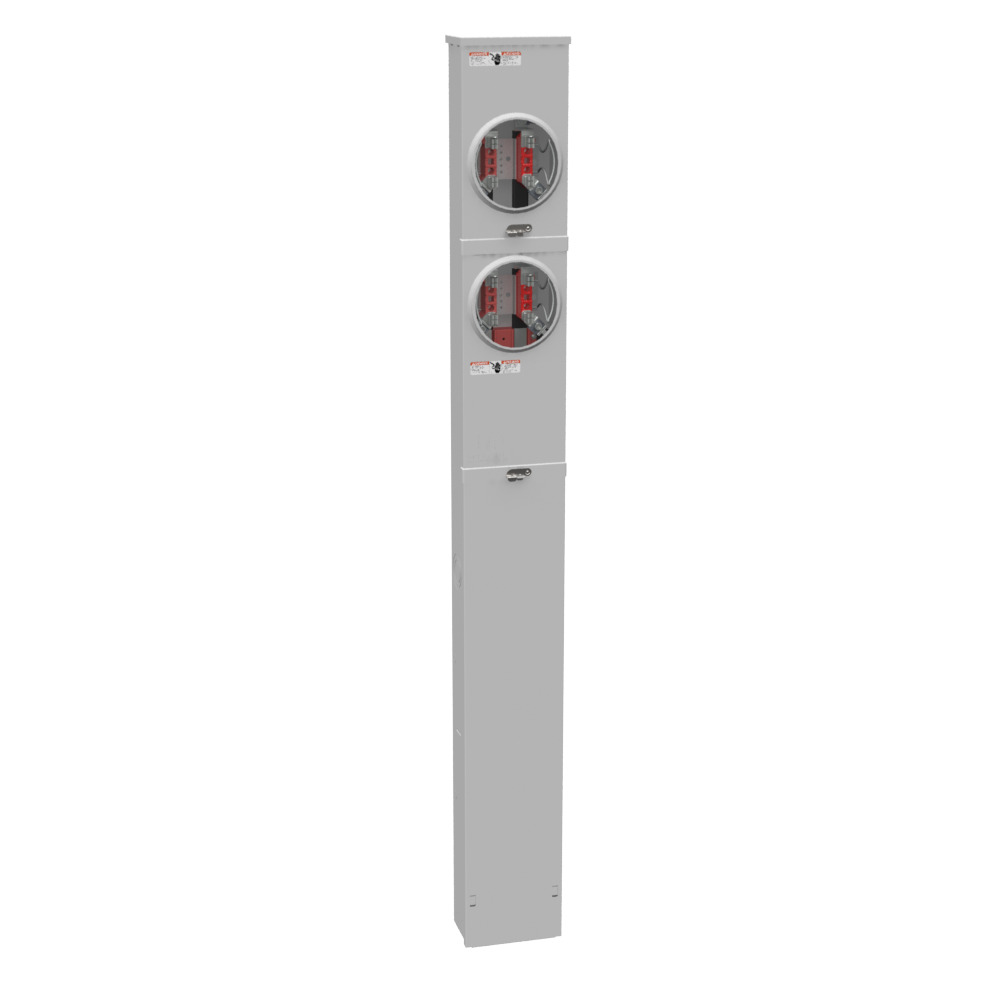

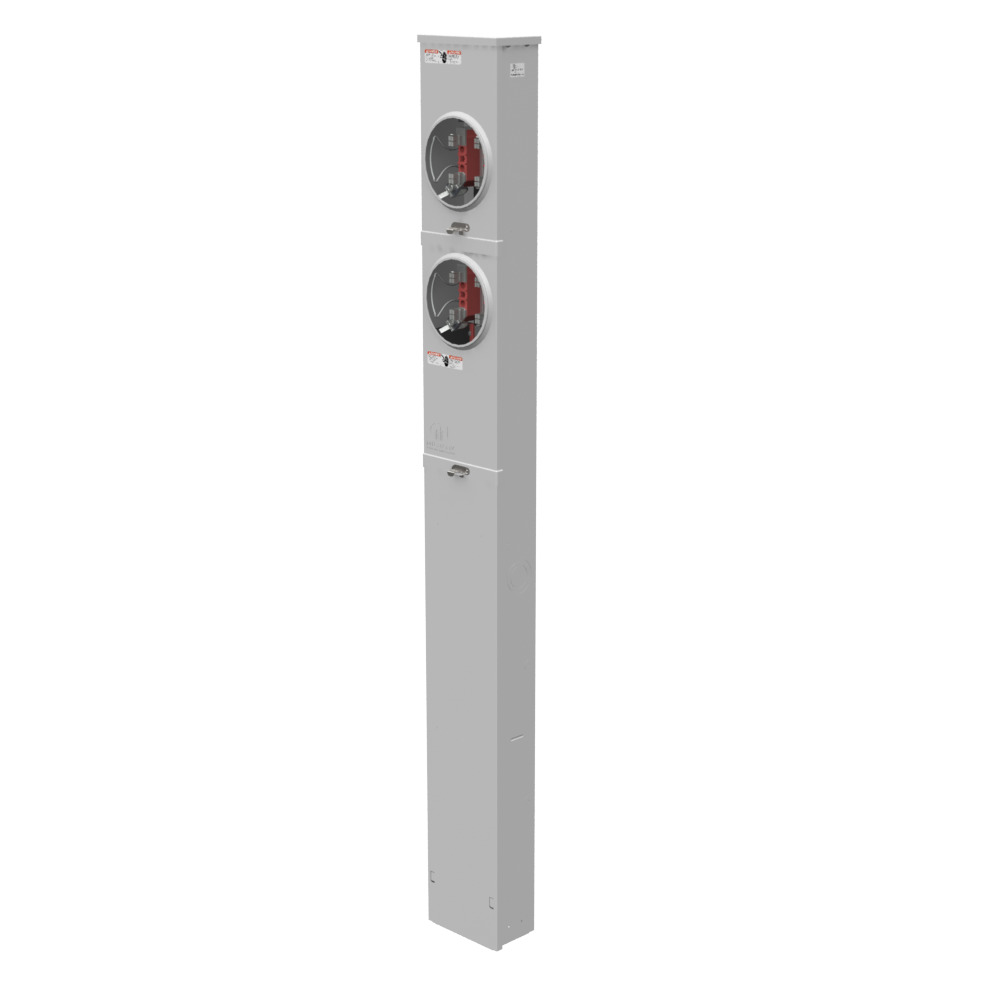

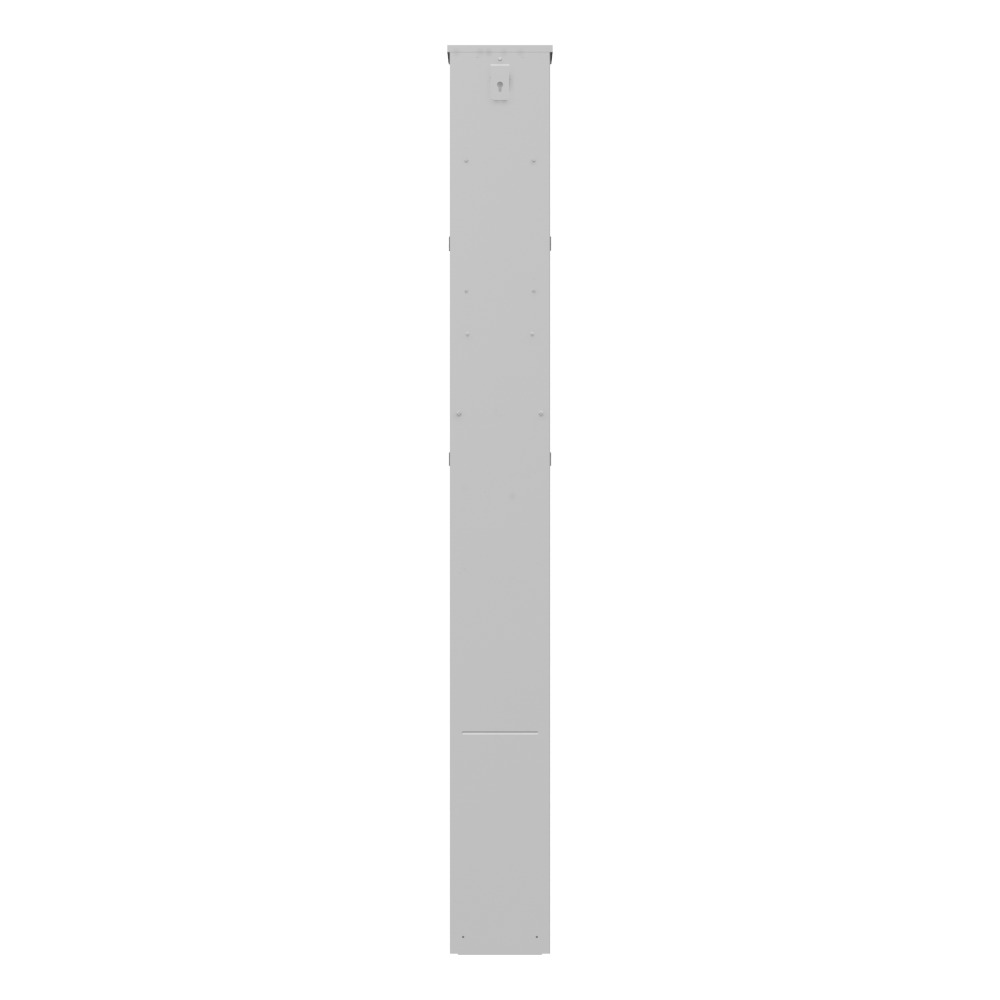

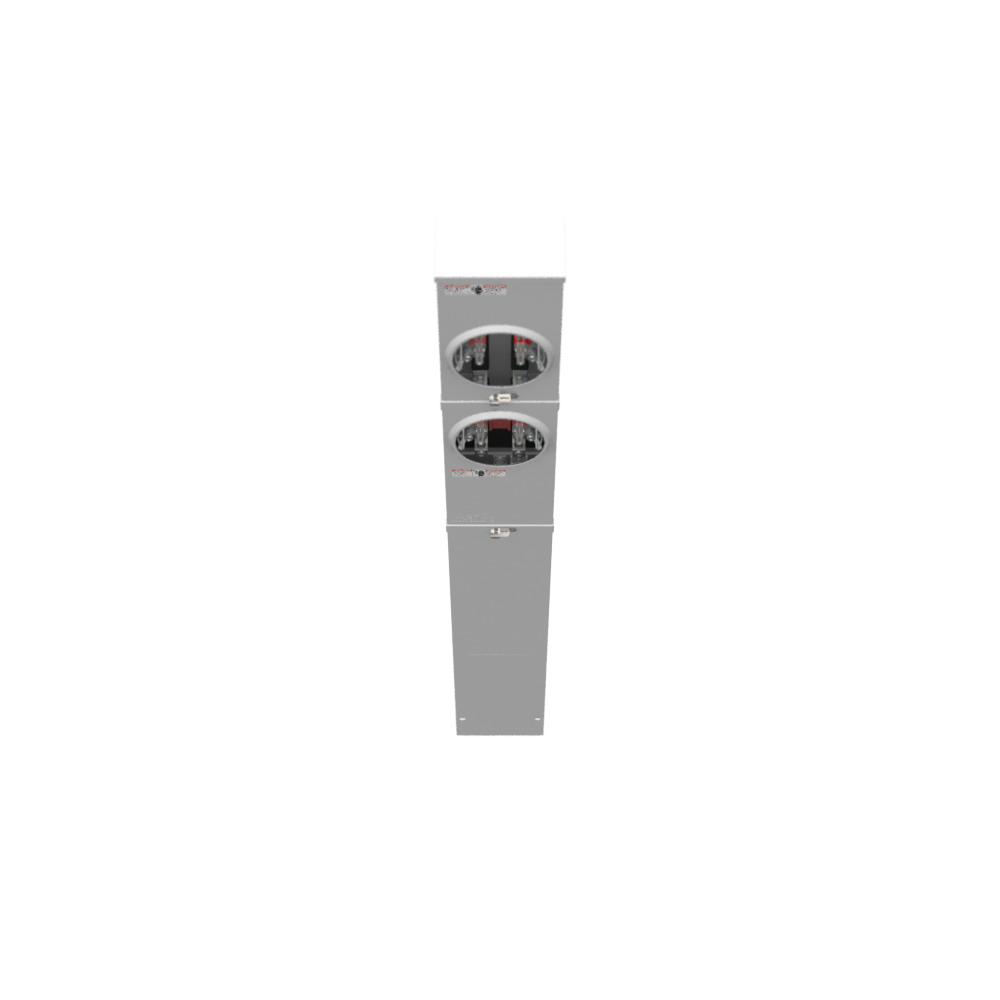

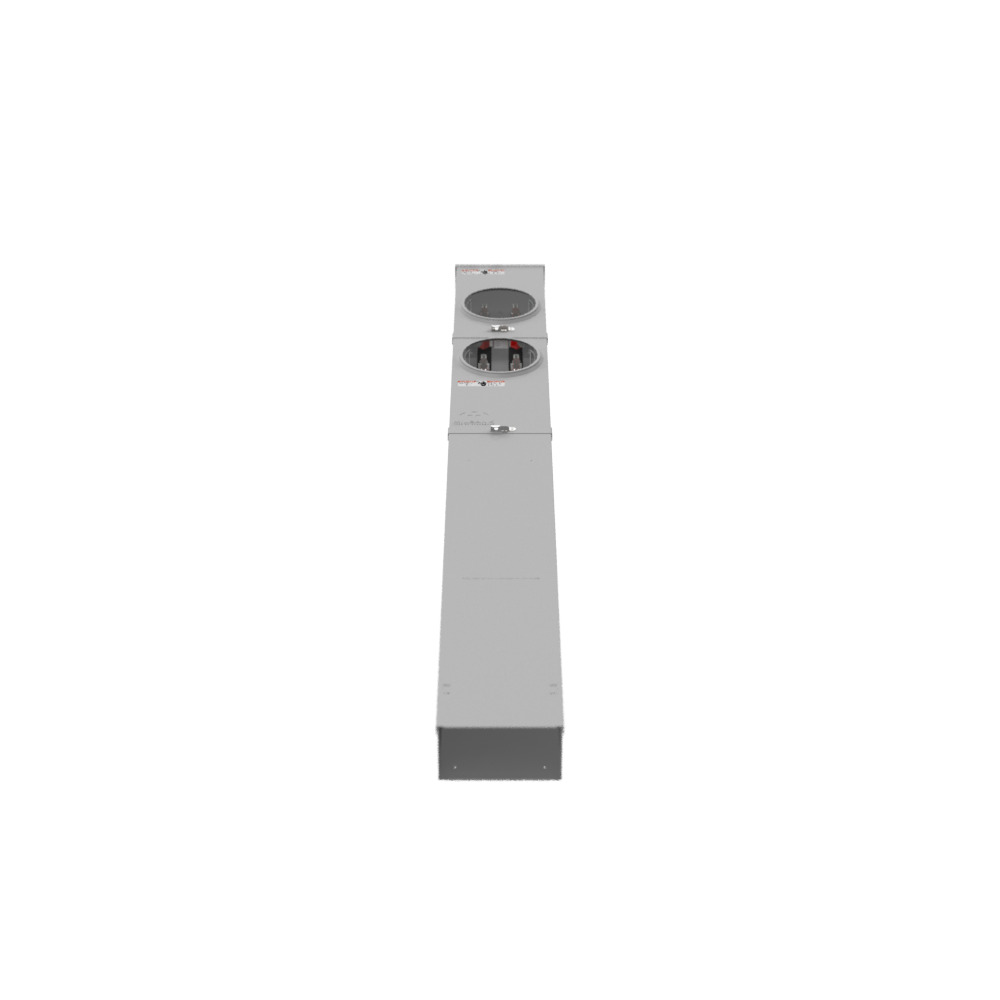

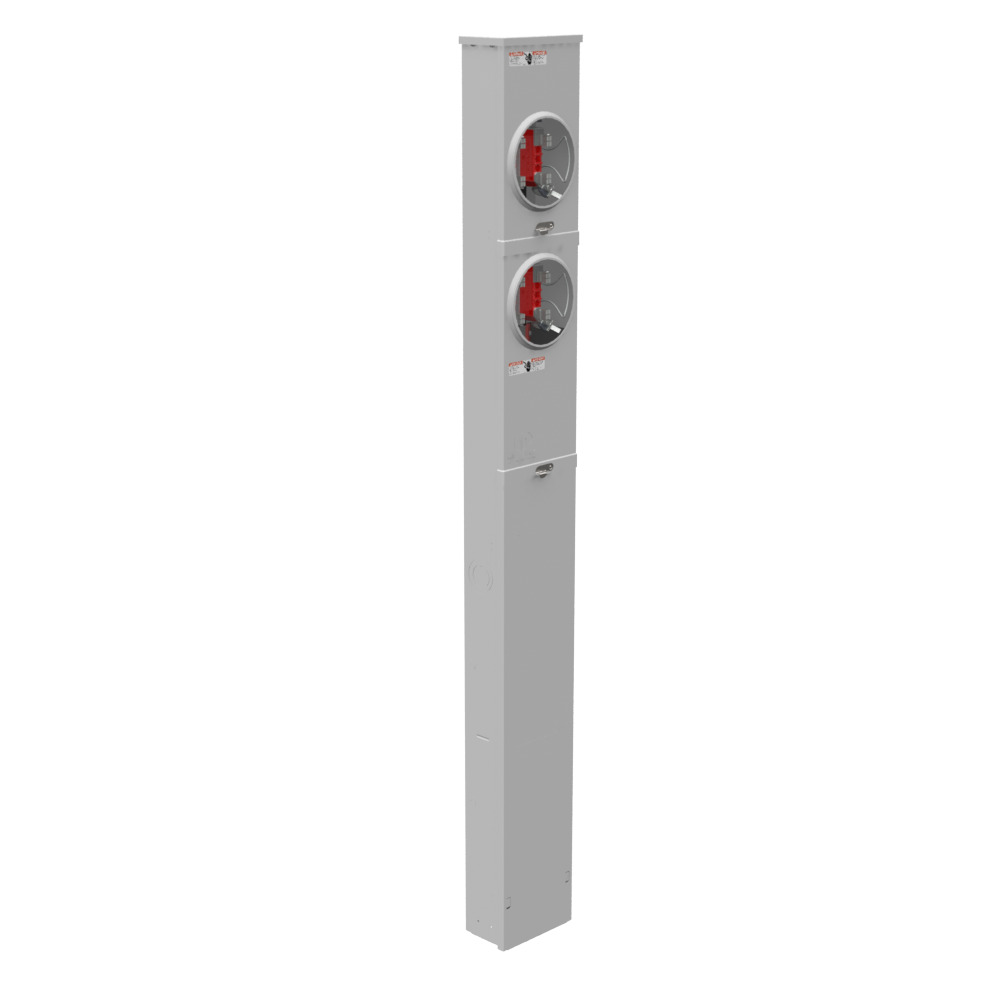

U1783-O-KK Meter Socket, 200 Amp, 1 Phase, Ringless, Horn, 4 Term, 2 Position, UG, 240V, Single Pedestal Direct Bury
- MFR:
- Milbank
- MFR #:
- U1783-O-KK
- UPC:
- 784572134287
- Item #:
- 144626
U1783-O-KK Meter Socket, 200 Amp, 1 Phase, Ringless, Horn, 4 Term, 2 Position, UG, 240V, Single Pedestal Direct Bury
- MFR #:
- U1783-O-KK
- UPC:
- 784572134287
- Item #:
- 144626
Availability
| Location | Available Qty |
|---|---|
| Available | 6 ea |
$1,255.66
each
4 TERM RNGLS PLAIN TOP HRN BYPS 2 POS SGL PED DIR BURY
Manuals and Documentation
| Catalog Number | U1783-O-KK |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Meter Socket |
| Bypass Type | Horn |
| Cable Entry | Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Pedestal |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Standard | UL Listed;Type 3R |
| UPC | 784572134287 |
| GTIN | 00784572134287 |
| Item Type | Ringless Meter Socket |
| Length | 4.5 |
| Length UOM | Inch |
| Width | 8.188 |
| Width UOM | Inch |
| Height | 74 |
| Height UOM | Inch |
| Size | 4.5L x 8.188W x 74H |
| Terminals | Single Mechanical |
| Voltage Rating | Up to 240 Volts Alternating Current |
