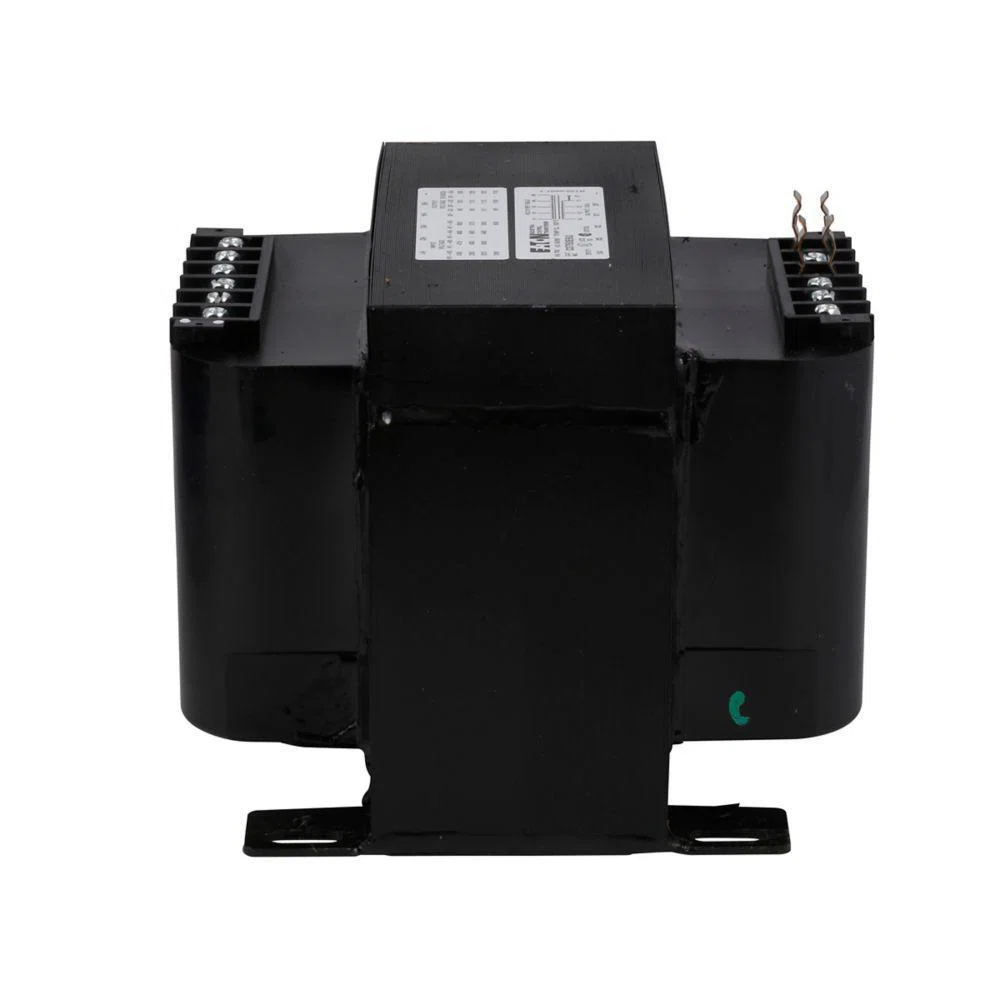

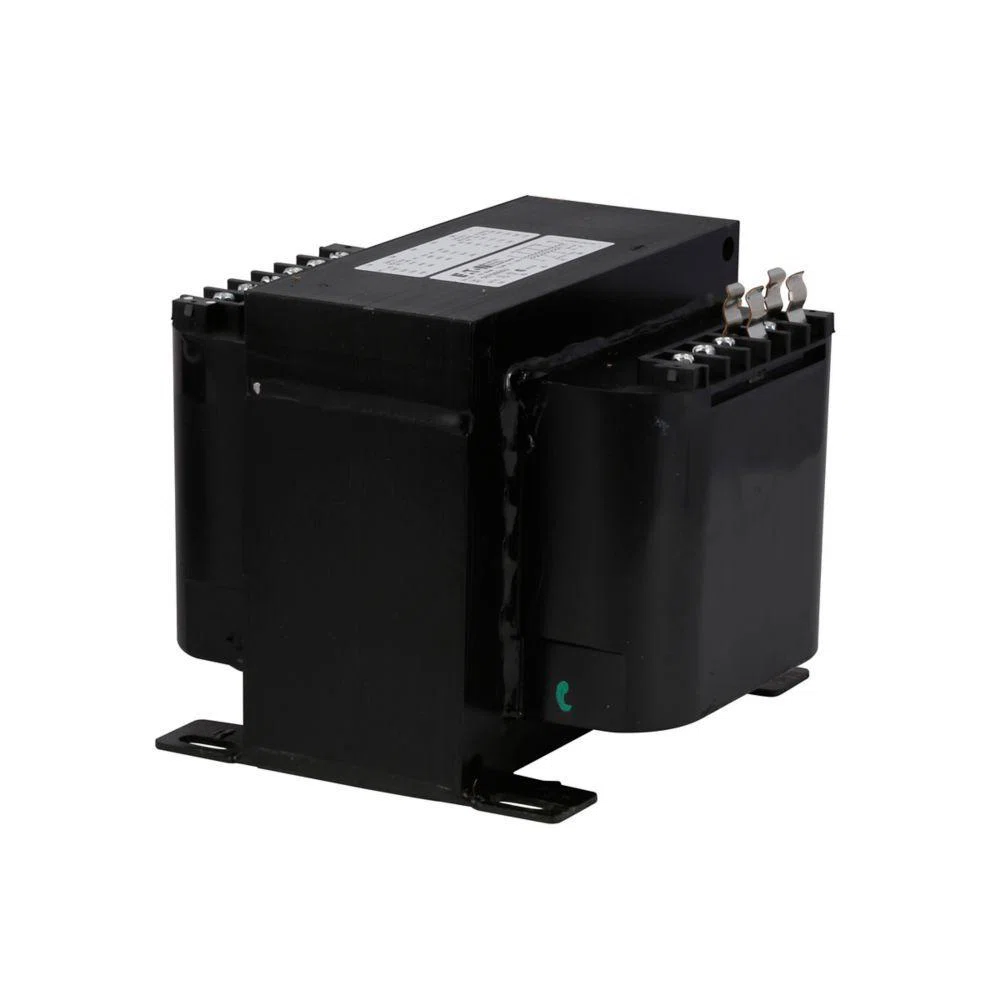

C1500E2A Type MTE Control Transformer, 220/440, 230/460, 240/480 V Primary, 120/115/110 V Secondary, 1500 VA Power Rating, 50/60 Hz, 1 Phase
- MFR:
- Eaton
- MFR #:
- C1500E2A
- UPC:
- 786680125607
- Item #:
- 144573
C1500E2A Type MTE Control Transformer, 220/440, 230/460, 240/480 V Primary, 120/115/110 V Secondary, 1500 VA Power Rating, 50/60 Hz, 1 Phase
- MFR #:
- C1500E2A
- UPC:
- 786680125607
- Item #:
- 144573
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$6,105.66
each
Eaton offers a complete line of Type AP, MTE and MTK Industrial Control Transformers, which provide stepped-down voltages to machine tool control devices. Each unit must pass rigid tests for turns ratio, insulation, continuity, and over potential. Performance meets or exceeds ANSI/NEMA ST-1 requirements. With a 50-60 Hz operation standard, transformers are designed for loads requiring extremely good regulation. Regulation also exceeds ANSI/NEMA requirements.
Manuals and Documentation
Features
- The use of grounded or ungrounded circuits that are independent of the power or lighting grounds affords greater safety to the operator
- Epoxy encapsulated coils provide protection from moisture and contaminants commonly found in industrial environments
- Molded-in terminals allow for maximum durability
- silicon steel minimize core losses and optimize performance
- Copper magnet wire provides for high quality
- efficient operation
| Manufacturer Part Number | C1500E2A |
| Brand | EATON |
| Manufacturer | Eaton |
| UPC | 786680125607 |
| Country Of Origin | US |
| Dimensions | 7.362 in L x 7.52 in W x 6.378 in H |
| Housing Material | Silicon Steel |
| Temperature Rating | 55 deg C |
| Type | Type MTE |
| Alternative Part Number | 7469434 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | 1 year |
| Standards Approvals | UL Listed,CSA Certified,cUL Certified,RoHS Compliant |
| Application | Industrial, Motor and Power Control Equipment Applications |
| Connection Type | Copper Magnet Wire/Molded-In |
| Frequency Rating | 50/60 Hz |
| Phase | 1 |
| Power Rating | 1500 |
| Primary Voltage | 220/440, 230/460, 240/480 V |
| Secondary Voltage | 120/115/110 V |
