SQUARE D

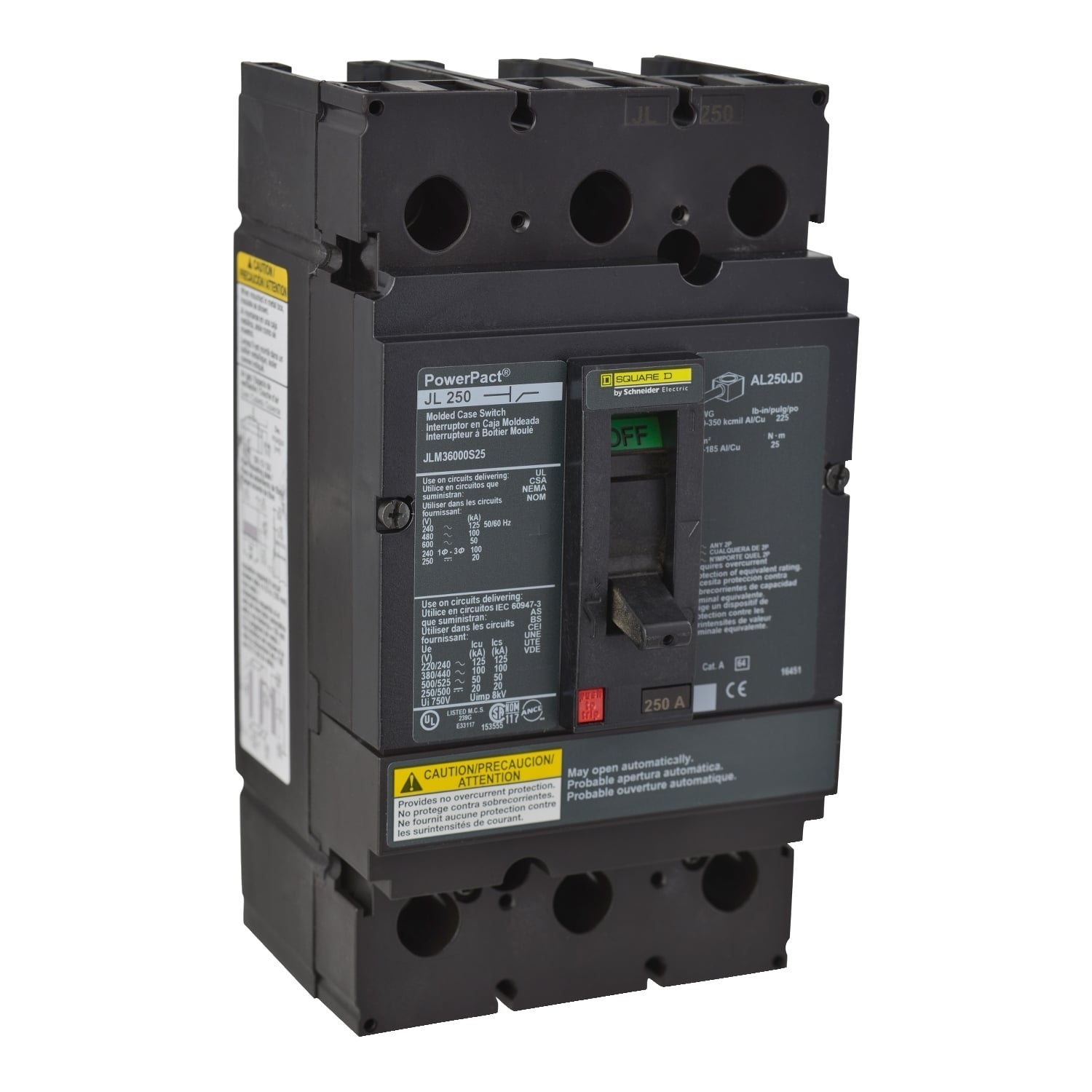

JLM36000S25 PowerPact Automatic Molded Case Circuit Breaker, 600 V AC/250 V DC, 250 A, 125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC/20 kA at 250 VDC Interrupt, 3 Poles, Magnetic Trip

MFR:
Schneider Electric
MFR #:
JLM36000S25
UPC:
785901698074
Item #:
1445547

Availability

Location Available Qty
Available Available to Order
$2,860.16 each

PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT J-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has lugs on the line side and terminal nuts on the load side. This PowerPacT J, 250A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT J automatic switches comply to UL, CSA, ANCE, and IEC standards.

Manuals and Documentation
Catalog Number JLM36000S25
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Connection Lugs, line;terminal nut, load; x AWG 3/0...350 kcmil ( aluminium/copper )
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268667408&lang=en-us
UPC 785901698074
GTIN 00785901698074
Width 4.12
Width UOM Inch
Height 7.52
Height UOM Inch
Depth 5.0 IN
