Telemecanique

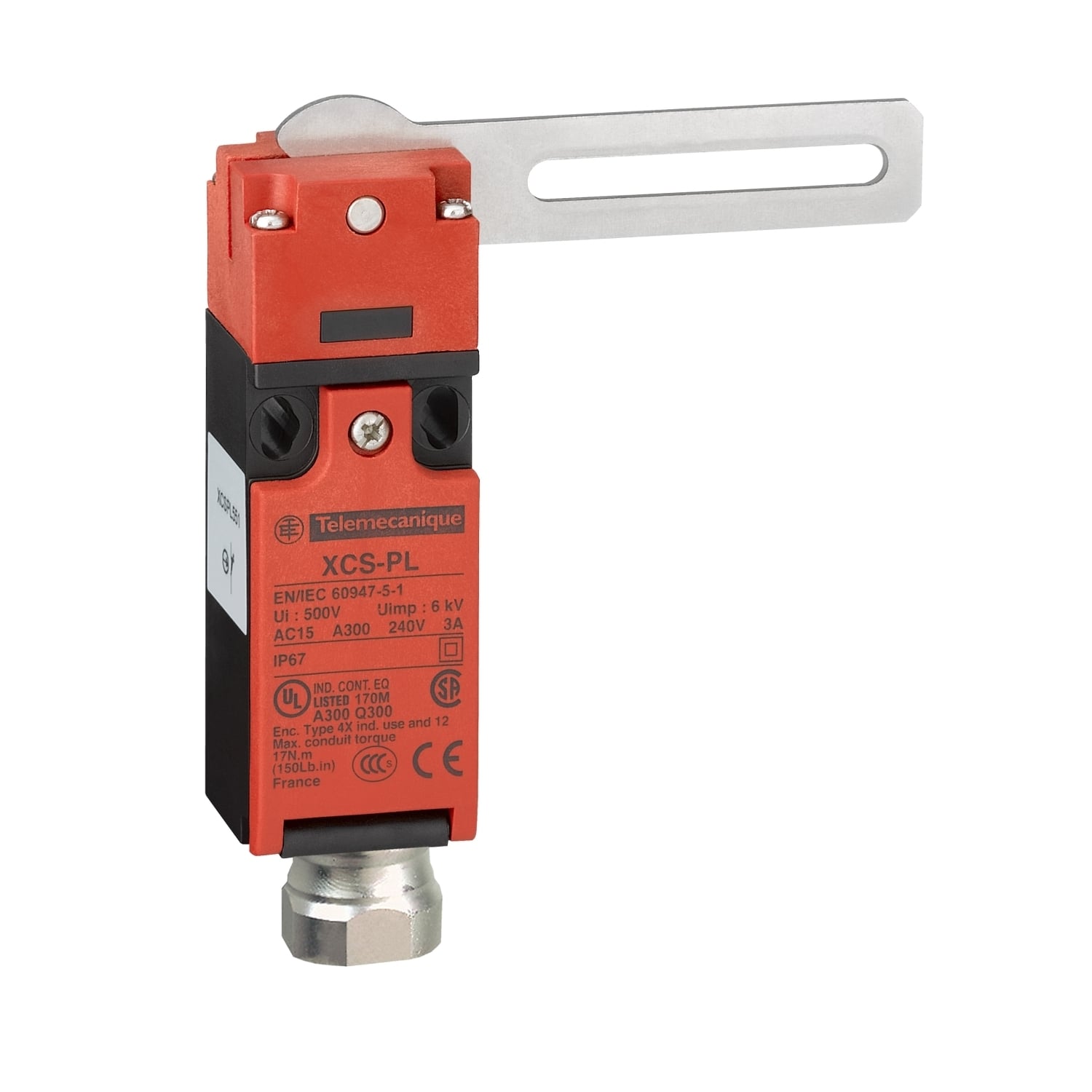

XCSPL763 Preventa Guard Interlock Switch, 240 V AC/250 V DC, 10 A, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCSPL763
UPC:
785901326748
Item #:
1445396

Availability

Location Available Qty
Available Available to Order
$203.86 each

This XCSPL Safety Limit Switch has a stainless steel turret head rotary straight lever with an operation contact to the right or to the left, a double insulated plastic enclosure and a 1/2" NPT cable gland entry. It has 2 normally closed slow break contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Manuals and Documentation
Catalog Number XCSPL763
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Slow-break
Actuator Straight lever;Stainless steel
Amperage Rating 10
Application TURRET HEAD ROTARY LEVER
Connection Terminal
Contact Configuration 1 NC + 1 NC
Enclosure Polyamide PA66 fibre glass impregnated
Insulation Double insulated
Number of Poles 2
Special Features PLASTIC
Standard 50 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,BG-UL-CSA,CSA C22.2 NO 14-EN/IEC 60204-1-EN/IEC 60947-5-1-EN/ISO 12100-EN/IEC 60947-5-4-EN 1088/ISO 14119-UL 508,IP67 IEC 60529,CLASS II EN/IEC 61140
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859904&lang=en-us
UPC 785901326748
GTIN 03389110866636
Item Type Guard switch
Operating Temperature -25-70 A Degrees C
