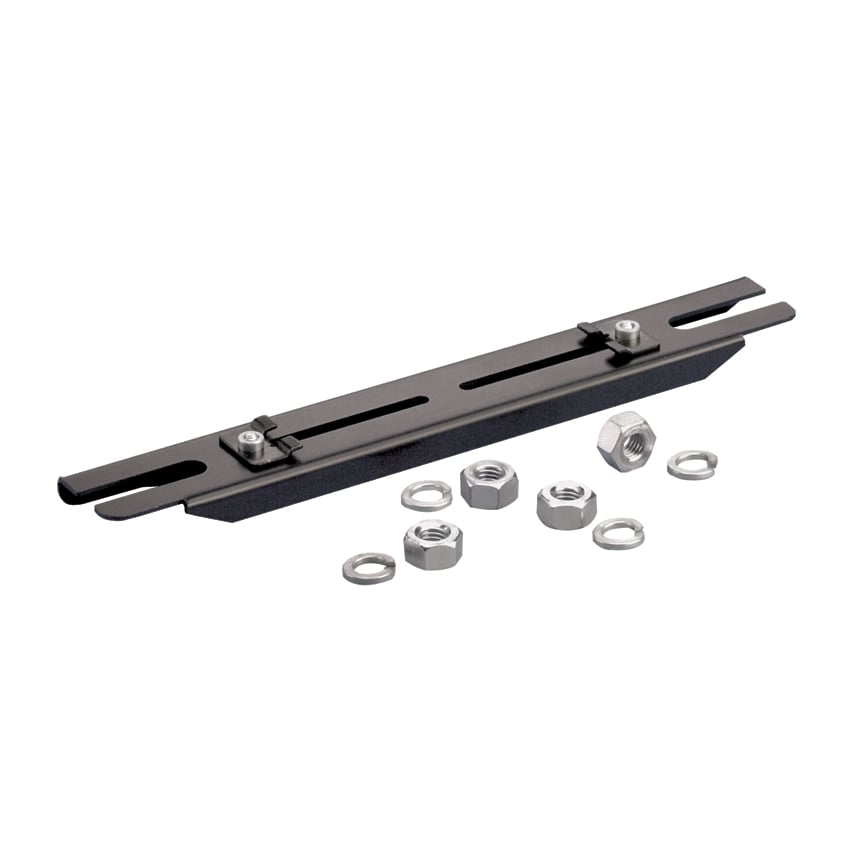

Used to support the 6x4 and 4x4 systems by spanning two threaded rod drops. Can be installed from above or below. Bracket is secured to each threaded rod with two nuts. The pre-assembled slide clamp enables fast assembly to channel. Use 7/16in nut driver on slide clamps, For 12mm threaded rod.
| Catalog Number | FR6TB12M |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | (1) The Fiberrunner 6X4 Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High PerformanceCopper Cabling. (2) it is Suited for Data Center Applications |
| Material | Steel |
| Standard | UL Listed to 2024 Optical Fiber Cable Routing Assemblies, Compliant with the Applicable Tests in Telcordia Gr-63-Core, Network Equipment Building Systems Level 3, LP-CSISPEC-FR |
| UPC | 074983852840 |
| GTIN | 00074983852840 |
| Item Type | Fiber Routing Trapeze |
| Length | 13.78 |
| Length UOM | Inch |
| Width | 1.94 |
| Width UOM | Inch |
| Height | 0.62 |
| Height UOM | Inch |
